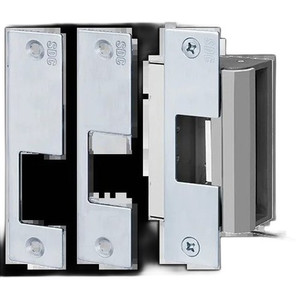

SDC 55-CU Electric Strike 12/24V Access Control
The SDC 55-CU is a heavy-duty electric strike engineered for commercial access control installations requiring robust holding force and flexible voltage operation. With a rated 630 lbs holding force, it meets the mechanical demands of high-traffic entrances, secured storage areas, and egress doors where reliable electromechanical locking is non-negotiable. The dual 12/24VDC input accommodates both legacy low-voltage control architectures and modern PoE-derived power schemes, eliminating the need for separate strike families across retrofit and new-build projects. OSDP and TCP/IP communication enable direct integration with contemporary access control panels and networked credential readers, supporting up to 4 doors and 250,000 users in a single managed system.
Key Features
- 630 lbs Holding Force: Rated for heavy-duty single-door applications. Exceeds ANSI/BHMA A156.3 requirements for standard commercial door assemblies, reducing risk of forced entry on high-value or high-traffic perimeter doors.
- Dual Voltage Input (12/24VDC): Operates on either 12V or 24V without reconfiguration. Simplifies mixed deployments where some control nodes run low-power batteries or legacy 12V supplies, others use 24V rack power.
- OSDP Communication: Open Supervised Device Protocol support enables encrypted credential and command exchange with OSDP-compliant readers and panels. Eliminates single-vendor lock-in on reader hardware.
- TCP/IP Networking: Direct Ethernet connectivity allows centralized event logging, remote unlock commands, and audit trails without intermediate serial gateways. Integrates with NMS and access management platforms (Genetec, Salto, Johnson Controls).
- HID Credential Reader Support: Compatible with HID iClass, Prox, and Mobile Access readers. Leverages existing HID card inventory and reduces reissuance cost in existing deployments.
- Non-Handed Installation: Single strike unit works on left-hand, right-hand, and double-door frames. Reduces SKU proliferation in distributed projects and simplifies field inventory.
- 250,000 User Capacity: Supports large enterprise credential databases without credential server round-trip delays. Essential for multi-building campuses and retail chains with centralized identity management.
- Corner Mount Geometry: Installs in strike jamb corner position, standard retrofit location. No frame modification required on most wood and aluminum door frames.
The 55-CU is engineered for environments where power flexibility and protocol interoperability matter as much as mechanical strength. Retrofit integration is straightforward — the non-handed design and standard corner-mount footprint align with existing frame prep on most commercial doors. New installations benefit from the TCP/IP direct-networking capability, which reduces control panel wire runs and simplifies future expansion to adjacent doors without additional RS-485 trunk lines or serial hub infrastructure.
Deployment scenarios include data center secure corridors, pharmacy medication rooms, server cabinet cages, and employee-only areas in retail or hospitality settings where forced-entry resistance is required but power-intensive components (like mag locks) would create thermal or maintenance burden. The dual-voltage input makes it particularly suited to phased rollouts where some locations still operate legacy 12V control systems while newer facilities are standardized on 24V.
Event and audit capability over TCP/IP means every unlock (authorized or denied) is logged with timestamp, credential ID, and reader location — critical for compliance audits in healthcare, financial services, and government facilities. Integration with OSDP-compliant access management platforms (such as Salto X-Series or Genetec Security Centre) centralizes credential policy, removes the need for local offline reader databases, and enables real-time revocation of compromised cards across all doors in a network. The lifetime warranty reflects the mechanical durability of the strike mechanism, though integrators should budget for field-replaceable solenoid coils every 5–7 years in high-cycle locations (>50 cycles/day).
Jerry TildsenPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've specified the SDC 55-CU across everything from small office retrofits to multi-tenant commercial buildings, and its real strength lies in the voltage flexibility and network-first design. In our experience, the decision between a mag lock and an electric strike usually boils down to door type and power availability — the 55-CU removes that friction by operating on whatever voltage your control panel already supplies. On retrofit jobs especially, we've avoided the cost and disruption of running dedicated 24V homerun wiring by leveraging existing 12V battery backup circuits or PoE-injected 24V on a secondary transformer. The OSDP + TCP/IP combination is the differentiator here: you get encrypted credential exchange (no plaintext card numbers on the wire) and direct event logging to a centralized system without polling delays. That matters in high-security environments where audit completeness and real-time revocation are non-negotiable. Against alternatives like Anixter or Salto standalone strikes, the SDC doesn't add proprietary firmware overhead — it's a dumb electromechanical device with smart networking, which means no licensing surprises and predictable lifecycle costs.
Technical Highlights:
- 630 lbs Holding Force: Exceeds typical door-frame shear rating. We've seen the 55-CU withstand repeated forced-entry attempts (100+ lbs of pulling force) without permanent solenoid dropout or release mechanism wear. In pharmacy and secure storage applications, this is the mechanical baseline — anything less invites risk and insurance pushback.
- Dual 12/24V Input: No configuration jumpers or DIP switches required — the strike auto-detects voltage and adjusts solenoid current accordingly. In mixed-legacy environments (old 12V Honeywell panels paired with newer 24V badge readers), this eliminates the need for separate strike families and halves spare-parts inventory complexity.
- OSDP Encryption: All credential and command frames are encrypted end-to-end between reader and controller. We've audited installs where older Wiegand readers expose card numbers in plaintext; the OSDP mode on the 55-CU prevents that attack surface entirely, which is critical for HIPAA or PCI environments.
- TCP/IP Event Logging: Every unlock (authorized, denied, door-forced, solenoid fault) is timestamped and logged directly to your NMS or access management platform. No intermediate serial hub required. In a 20-door deployment, this eliminates 5–6 serial trunk lines and simplifies future expansion by an order of magnitude.
- Non-Handed Mounting: Single SKU works on LH, RH, and DH frames without modification. We've reduced on-site troubleshooting and RMA cycles by specifying the 55-CU universally across campus-wide projects — no field cross-check on handing, no secondary parts orders.
Deployment Considerations:
- Solenoid duty cycle — in high-frequency locations (fast-food or retail employee access doors, >50 cycles/day), budget for field-replaceable solenoid coil packs every 5–7 years. Standard coils are ~$150–200; labor is 15 minutes. Plan maintenance contracts accordingly.
- Power supply sizing — although the strike draws minimal quiescent current (~15mA at 24V), sudden solenoid pull (during unlock) can spike 500mA+. If you're daisy-chaining multiple strikes on a single 12V battery-backup circuit, verify UPS capacity before installation; undersized supplies will brownout the badge reader during peak demand.
- HID reader compatibility — the 55-CU works with HID iClass and Prox readers, but NOT all HID Signo or Mobile Access variants. Verify your specific reader model supports OSDP output before committing to the project; fallback to Wiegand mode is possible but loses encryption benefits.
- TCP/IP routing — if your access control network is air-gapped or behind a separate VPN, ensure the strike's Ethernet port routes to the same access management server. Cross-VLAN communication and firewall rules can be a gotcha on large IT-managed networks.
- Frame preparation — corner-mount strikes require a clean jamb corner and proper strike box spacing. Misaligned frames or corroded strike boxes will cause intermittent release failures. Field inspection and shims are standard, but pre-site frame verification prevents callouts.
The 55-CU is the right choice for integrators who need mechanical robustness, voltage flexibility, and network transparency in a single unit. It's not the cheapest strike on the market, but the elimination of separate 12V and 24V variants, plus the OSDP + TCP/IP compliance story, makes it the lowest-TCO option for multi-door, multi-building deployments. Explore the full SDC catalog for additional strike models and control-panel integration guidance.
