SDC S6101PU36E 630 RIM Panic Controller 63 Doors

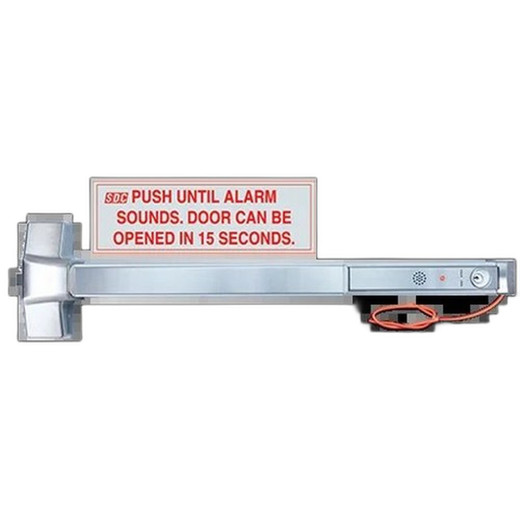

The SDC S6101PU36E is a networked delayed egress panic controller designed for retail loss prevention, pedestrian access control, wandering-patient containment in healthcare, and infant protection in educational settings. Unlike standalone rim devices, the S6101PU36E bridges panic hardware with enterprise access control: it manages up to 63 doors and 250,000 user credentials over OSDP and TCP/IP, eliminating the need for a separate control cabinet while maintaining full NFPA 101 Life Safety Code, CBC, and BOCA compliance. The 630 dull stainless finish and stainless steel construction integrate into standard 36-inch rim door installations without visible control logic — the panic bar itself is the access point.
Key Features
- Multi-Door Capacity: Manages up to 63 doors per controller. Scale pedestrian control or loss prevention across retail floors, healthcare units, or educational wings without additional cabinets or field wiring complexity.
- Credential Diversity: Supports DESFire, MIFARE, NFC (13.56 MHz), and 125 kHz proximity cards. One controller handles legacy proximity systems and modern NFC phones without reader replacement.
- Network Protocols: OSDP and TCP/IP communication. Integrates with any VMS or access control platform that speaks these standards; no proprietary gateways required.
- Adjustable Egress Delay: Field-selectable 15- or 30-second delay with anti-tailgate logic and fire/emergency release hardwired to comply with fire code. No firmware updates needed to change delay duration.
- 630 RIM Strike with 36-inch ELR: Electrified latchbolt retraction on standard rim-mounted panic bars. Works on 1¾–2-inch stile thickness doors; non-handed operation fits left or right hinges without modification.
- 24VDC Power (<540 mA): Low current draw operates from standard PoE injectors or distributed power supplies. Ideal for retrofit installations where panel space is constrained.
- Contact Outputs: Five SPDT relay sets (REX, LS, Alarm, Lock Secure, Reset) enable integration with larger access control ecosystems or standalone hardwired monitoring.
- Field-Selectable Trim: Exit Only, Dummy (key-less), or Nightlatch (key retracts latchbolt) configurations. Eclipse, Galaxy, and Saturn escutcheon styles available; electrified variants support 24VDC nightlatch operation.
The S6101PU36E excels in environments where access control logic must live at the door level rather than in a remote panel — retail loss-prevention corridors, healthcare wandering-patient zones, and nursery egress points. Because delay and emergency release are hardwired into the panic bar assembly, the device passes fire inspections without requiring a separate override cabinet or dual systems. The 630 RIM strike mounts directly to the panic bar frame with no additional brackets or mortising, reducing installation labor on existing door hardware.
Network integration via OSDP and TCP/IP means credential enrollment, audit logs, and remote status reporting flow directly into your VMS or access control platform. A single controller licensing entry covers up to 63 doors; multi-building retail or healthcare deployments consolidate hardware cost and administrative overhead compared to standalone panic devices. The 250,000 credential capacity accommodates large user directories without requiring a secondary credential server.
Field-selectable key switch reset and bypass modes (auto or manual reset, sustained or timed bypass) allow installers to tune behavior for the specific site — a retail loss-prevention manager may prefer manual reset (only staff can enable bypass), while a healthcare facility may select auto-reset with a timed bypass for emergency egress. Subdued alternating alarm provides audible warning during the delay period without disorienting occupants. Anti-tailgate logic is integral; no external motion sensors or door-position switches are required.
The S6101PU36E carries a Lifetime Warranty. It is NFPA 101, CBC, and BOCA certified for delayed egress applications. For detailed electrical wiring diagrams, configuration templates, and trim compatibility matrices, refer to the product datasheet. Double-door configurations require the separate S6000-DES exit device with ExitCheck slave operation. Integrators should confirm 24VDC power availability at the door location and verify fire marshal approval for the selected delay duration before installation. For multi-building or large-scale loss-prevention rollouts, explore the SDC product catalog for complementary readers, power supplies, and wireless credential options.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the S6101PU36E in a range of loss-prevention and healthcare containment scenarios, and the core value proposition is straightforward: it puts networked access control logic directly into the panic bar hardware without requiring a separate cabinet, control panel, or software license for the device itself. That simplicity cuts installation labor significantly compared to traditional rim + external controller setups. For a 12-door retail corridor, you're looking at one S6101PU36E managing all 12 doors with a single 24VDC power feed — no additional wiring to a central cabinet, no inter-door relay logic, no field programming of timers. The OSDP and TCP/IP ports connect directly to your VMS or access control platform, and credential management flows through your existing user database. That architectural clarity differentiates it from older dual-system approaches (panic hardware + separate access control) that required manual synchronization and created compliance blind spots.
The adjustable 15- or 30-second egress delay with hardwired fire release is non-negotiable in healthcare and education — it satisfies fire marshal requirements without a secondary manual override system or additional inspection liability. In retail loss-prevention applications, the anti-tailgate logic and subdued audible alarm deter casual pilferage without creating a security theater appearance that confuses customers. We've seen integrators pair this with 125 kHz proximity credentials for staff (low cost, high deployment speed) and NFC cards or phone-based access for visitor management — all within a single reader interface, all logged to the same access control platform.
Technical Highlights:
- OSDP + TCP/IP Dual-Protocol Support: OSDP guarantees secure credential transport and tamper reporting; TCP/IP allows direct VMS integration and remote audit. Many integrators use OSDP for card readers and TCP/IP for syslog/status polling — no single point of failure and no separate gateway licensing.
- 250,000 Credential Capacity: Handles enterprise-scale user directories. A 50-door retail deployment (multiple S6101PU36E controllers) can share a single credential database without credential replication or local caching complexity.
- Networked Delay + Hardwired Emergency Release: The 15- or 30-second delay is controllable via network (credential unlock or management interface), but fire/emergency release remains hardwired on a latching relay. No network failure can prevent emergency egress — critical for life-safety compliance.
- Five SPDT Relay Outputs: REX (request-to-exit), LS (Lock Secure), Alarm, and Reset contacts enable integration with building automation, emergency notification systems, or supplemental door locks. LS contact is rated 250 mA @ 30VDC, sufficient to drive a small electromagnetic lock or relay coil.
- 630 RIM Strike + 36-inch ELR: Direct integration into panic bar frame eliminates after-market strike adapter brackets. 36-inch ELR (electromechanical latch retraction) has no solenoid coil — the motor in the panic bar itself retracts the latch. Faster egress response and simpler power delivery than a separate strike coil.
- Non-Handed Operation: One assembly fits both left and right hinge configurations. Reduces stock complexity on multi-site retail rollouts and eliminates door-handing errors during procurement.
Deployment Considerations:
- 24VDC Power Availability at the Door: Unlike networked readers that often share a distant power supply, the S6101PU36E draws its full 540 mA at the door. Verify PoE injector placement or dedicated 24VDC line routing in retrofit installations. Budget 18–24 months of operational cost if installing a new power run.
- Fire Marshal Pre-Approval Required: The 15- or 30-second delay must be approved by local AHJ before installation. Do not assume the delay duration carries over from one jurisdiction to another; some municipalities mandate 30-second delay for public buildings, while others permit 15 seconds. Confirm in writing before ordering.
- Key Switch Reset & Bypass Tuning: Field-selectable reset mode (auto vs. manual) and bypass duration must be documented in your post-installation commissioning notes. A retail manager may later ask why panic-button bypass is time-limited; if the installer selected 'sustained bypass' and the manager overrode it, accountability falls on you. Lock in the final configuration with the customer signature before close-out.
- Double-Door Configurations Require S6000-DES Slave: The S6101PU36E is a single-door master. For paired egress doors, order a separate S6000-DES exit device configured as ExitCheck slave operation. This adds complexity and cost; confirm multi-door egress layout early in design.
- OSDP Reader Wiring on Existing Systems: If retrofitting into a retail or healthcare site with older, non-OSDP access control, budget for reader replacement or an OSDP-to-legacy gateway if the site wants to preserve existing credentials. OSDP wiegand fallback is not reliable for long-term secure operation.
The S6101PU36E is the right product for retail loss-prevention managers, healthcare facility engineers, and educational security teams who need multi-door delay egress control without cabinet clutter and with direct integration into their VMS or access control platform. If you're managing 8+ doors with similar security posture, a single networked controller beats the cost and complexity of multiple standalone panic devices. Explore the SDC catalog for complementary rim and mortise exit devices, networked readers, and wireless credential options.
