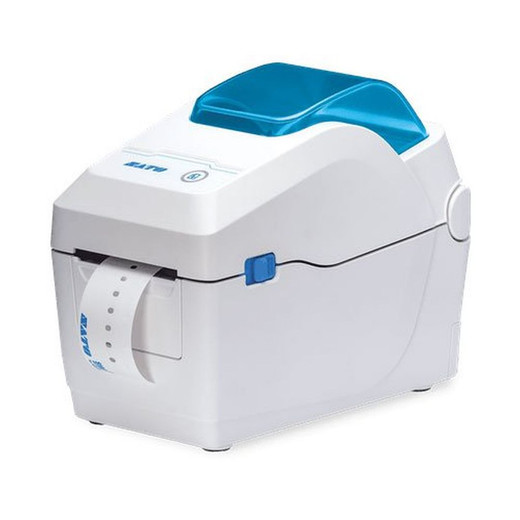

SATO W2302-400DN-EX1 300dpi Desktop Thermal Printer

SATO W2302-400DN-EX1 300dpi Desktop Thermal Printer

The SATO W2302-400DN-EX1 is a compact yet powerful desktop thermal printer designed for enterprises requiring high-volume label production with minimal footprint. Part of the WS2 series, this direct thermal printer delivers professional-quality output at 300 dpi resolution with print speeds of 7 inches per second, making it ideal for demanding logistics, manufacturing, and warehouse environments where speed and print quality directly impact operational efficiency.

Key Features

• 300 dpi resolution for crisp barcodes, text, and graphics
• 7 ips print speed for high-volume label production
• 2.2" maximum print width accommodates standard shipping and compliance labels
• Direct thermal printing eliminates ribbon costs for cost-effective operations
• 256 MB Flash and 128 MB SDRAM with 128 MB user storage for forms and fonts
• 2.4" color LCD display for intuitive operator interface
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• Multi-connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth for flexible deployment
• Compact desktop form factor: 6.3" x 7.5" x 6.5", weighing just 3.5 lbs

Technical Specifications

• Print Method: Direct Thermal
• Resolution: 300 dpi
• Print Speed: 7 ips
• Maximum Print Width: 2.2"
• Media Width Range: 0.5" to 2.83"
• Media Core: 1"
• Maximum Media Diameter: 5"
• Maximum Ribbon Length: 984 ft (300 m)
• Memory: 256 MB Flash, 128 MB SDRAM, 128 MB user storage
• Display: 2.4" Color LCD
• Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth
• Dimensions: 6.3" x 7.5" x 6.5"
• Weight: 3.5 lbs (1.6 kg)
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 5°C to 40°C (41°F to 104°F)

Applications

• High-volume shipping and logistics label printing
• Manufacturing product identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory labeling requirements
• Healthcare and pharmaceutical labeling
• Retail point-of-sale and shelf labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The W2302-400DN-EX1 represents SATO's commitment to balancing performance with practicality for mid-range enterprise deployments. The 300 dpi resolution at 7 ips provides competitive output quality and throughput for standard label formats, while the direct thermal mechanism eliminates ongoing ribbon expenses—a significant advantage for high-volume operations. Multi-protocol connectivity (Ethernet, Wi-Fi, Bluetooth, USB) enables seamless integration into both legacy and modern network infrastructures.

The compact 3.5 lb footprint makes it suitable for space-constrained environments without sacrificing media capacity or functionality. Tool-free maintenance design reduces total cost of ownership by minimizing technician visits. This printer is particularly well-suited for organizations transitioning from manual labeling or seeking to consolidate multiple single-function devices into a versatile platform.

Product Documentation
