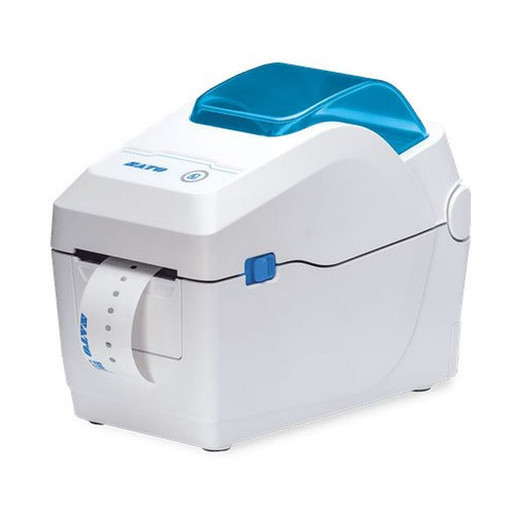

SATO WS2 W2212-400DN-EX1 203dpi Desktop Thermal Printer

SATO WS2 W2212-400DN-EX1 203dpi Desktop Thermal Printer

The SATO WS2 W2212-400DN-EX1 is a compact, high-performance desktop thermal printer engineered for enterprise-grade label production in demanding logistics, manufacturing, and warehouse environments. With 203 dpi resolution, 7 ips print speed, and a 2.2" maximum print width, this direct thermal printer delivers crisp barcode and text output while maintaining a small footprint ideal for space-constrained operations. The W2212-400DN-EX1 combines robust connectivity options with intuitive operation, making it a reliable choice for organizations requiring consistent, high-volume label production without the ongoing cost of thermal ribbons.

Key Features

• 203 dpi resolution at 7 ips for sharp barcode and text output
• Direct thermal printing eliminates ribbon costs for cost-effective short-term labels
• 2.4" color LCD display for intuitive menu navigation and status monitoring
• Tool-free printhead and platen roller replacement minimizes maintenance downtime
• 256 MB Flash memory with 128 MB SDRAM and 128 MB user storage for forms and fonts
• Multi-protocol connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth
• Supports media rolls up to 5" outer diameter with 1" core size
• Media width flexibility: 0.5" to 2.83" accommodates diverse label formats
• Compact dimensions (6.3" x 7.5" x 6.5") and lightweight at 3.5 lbs
• Wide operating temperature range: 41°F to 104°F for flexible deployment

Technical Specifications

• Print Method: Direct Thermal
• Resolution: 203 dpi
• Print Speed: 7 inches per second
• Maximum Print Width: 2.2"
• Memory: 256 MB Flash, 128 MB SDRAM, 128 MB user-accessible storage
• Connectivity: USB 2.0, Ethernet, Wi-Fi, Bluetooth
• Display: 2.4" color LCD
• Media Compatibility: 0.5" to 2.83" width, 1" core, up to 5" roll diameter
• Maximum Ribbon Length: 984 feet
• Power: AC 100-240V, 50/60Hz
• Operating Temperature: 41°F to 104°F (5°C to 40°C)
• Dimensions: 6.3" x 7.5" x 6.5"
• Weight: 3.5 lbs (1.6 kg)

Ideal Applications

• High-volume shipping and logistics label production
• Manufacturing part identification and asset tracking
• Warehouse inventory management and routing labels
• Compliance and regulatory label printing
• Retail pricing and product labeling

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The SATO WS2 W2212-400DN-EX1 represents a mature, production-ready thermal printer platform. Direct thermal technology is ideal for organizations printing labels with short shelf lives—shipping, warehouse, and logistics operations eliminate ribbon inventory complexity and reduce cost-per-label. The 203 dpi specification strikes a practical balance between print quality for 1D barcodes and thermal printing economics; this resolution suits GS1-128 and standard UPC applications without requiring finer 300+ dpi capabilities.

Multi-protocol connectivity (USB, Ethernet, Wi-Fi, Bluetooth) accommodates legacy integration alongside modern wireless deployments, reducing infrastructure constraints. The 2.4" color LCD and tool-free component access address operational efficiency by reducing training overhead and unplanned downtime. Storage capacity (128 MB user-accessible) is sufficient for moderate form libraries and font caching in standard logistics workflows.

For organizations with consistent label volumes in defined environments (41°F to 104°F), the W2212 delivers predictable performance without premium-tier complexity.
