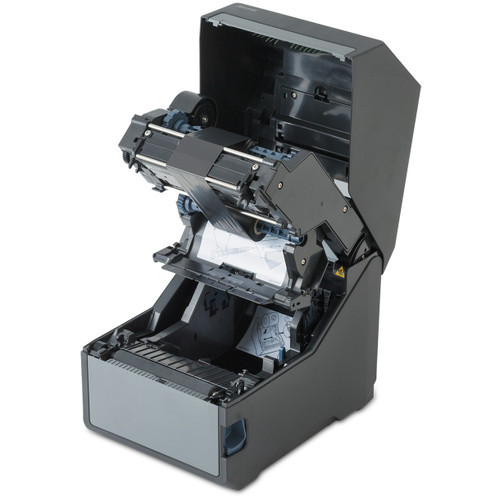

SATO CT4-LX 203dpi HF RFID Desktop Thermal Printer – WWCT03441-WCR
The SATO WWCT03441-WCR is a compact, enterprise-grade desktop thermal printer engineered for high-volume RFID label production and verification. Combining 203 dpi print resolution with integrated 13.56 MHz HF/NFC RFID encoding capabilities, this printer delivers intelligent labeling solutions for asset tracking, supply chain visibility, and item-level inventory management. The intuitive 4.3" Full-Color Touchscreen and tool-free printhead replacement make operation and maintenance straightforward, while robust connectivity options enable seamless integration into existing enterprise environments.
Key Features
- 203 dpi Resolution at 8 ips – Delivers sharp barcode and text output for reliable scanning and reading
- HF RFID Encoding with SATO RF Analyze – Auto-optimizes antenna settings for consistent encoding across variable inlay types
- 4.3" Full-Color Touchscreen – Intuitive interface for configuration, monitoring, and diagnostics
- Tool-Free Printhead & Platen Replacement – Minimizes downtime and reduces maintenance costs
- Dual Memory Architecture – 4 GB Flash, 1 GB DDR3, plus 2 GB user-accessible storage for forms and fonts
- Multi-Protocol Connectivity – USB 2.0, Ethernet, Wi-Fi, and Bluetooth for flexible network deployment
- Flexible Media Support – Handles 1" to 4.1" media widths on 1.5" cores; supports rolls up to 5" OD and ribbons to 984 ft
- Built-In Cutter & RTC – Integrated label cutting and real-time clock for timestamp-encoded labels
Technical Highlights
Print Engine & Media Handling: Direct Thermal and Thermal Transfer printing methods provide versatility across label stocks. Maximum print width of 4.09" at 8 ips supports continuous production workflows without speed compromise. Wide media width range (1" to 4.1") accommodates small tags through full-width labels on standard 1.5" cores.
RFID Capability: The integrated 13.56 MHz HF/NFC subsystem enables encoding and verification of RFID inlays in real-time. SATO's RF Analyze algorithm automatically adjusts antenna parameters to maintain consistent read/write performance across different inlay designs and materials, eliminating manual tuning.
Connectivity & Integration: Ethernet, Wi-Fi, Bluetooth, and USB 2.0 interfaces allow deployment in wired networks, wireless environments, or via direct computer connection. Built-in memory and user storage accommodate large label templates and font libraries for reduced network dependency.
Operational Environment: Operating temperature range of 0°C to 40°C (32°F to 104°F) supports most indoor industrial and commercial facilities. AC 100-240V universal power input with 50/60Hz compatibility enables global deployment. Compact 7.0" × 9.375" × 8.4375" footprint and 3.3 kg weight fit standard desktop installations.
Typical Applications
- HF RFID tag encoding and verification for asset tracking and management
- Smart label production for supply chain and logistics visibility
- Manufacturing environments requiring item-level RFID tracking
- Automated inventory management with real-time tag encoding
- Healthcare and pharmaceutical labeling with compliance verification
- Retail and apparel item-level tagging
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The CT4-LX represents SATO's midrange offering for organizations requiring integrated RFID printing without the footprint or cost of larger production systems. The RF Analyze auto-optimization feature is particularly valuable for shops managing multiple inlay suppliers or label stock variations—it reduces configuration time and encoding failures. The 4.3" touchscreen and tool-free component replacement reflect modern ergonomic design; field serviceability directly reduces total cost of ownership in 24/7 operations.
Dual connectivity (Ethernet + Wi-Fi) provides redundancy, while the 2 GB user storage allows offline label queuing for bandwidth-constrained environments. Print speed at 8 ips is moderate rather than high-throughput, positioning this device for mid-volume operations (thousands rather than tens of thousands of labels daily). The combination of thermal transfer capability, touchscreen interface, and integrated RFID makes this printer well-suited for organizations transitioning from barcode-only to RFID-enabled supply chains.
