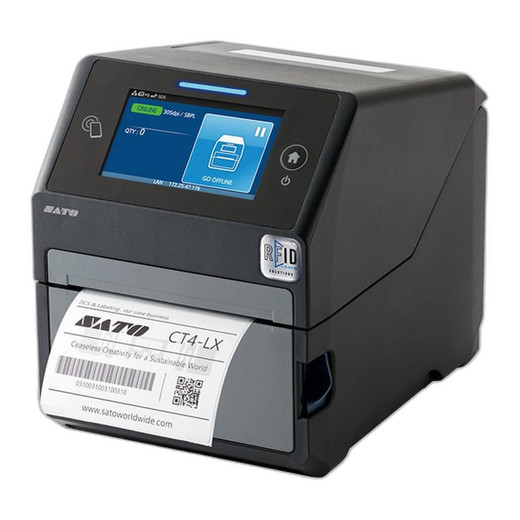

SATO CT4-LX 203dpi HF RFID Desktop Thermal Printer
The SATO WWCT03441-WDR is a compact desktop thermal printer purpose-built for enterprise RFID label production and asset tracking workflows. Combining 203 dpi print resolution with integrated HF/NFC RFID encoding at 13.56 MHz, this printer delivers reliable barcode, text, and RFID tag output in a space-efficient form factor. The 4.3" full-color touchscreen and intuitive interface make it accessible to operators across manufacturing, supply chain, and inventory management environments.
Key Features
- 203 dpi resolution at 8 ips print speed for crisp barcode and text output
- HF/NFC RFID encoding with SATO RF Analyze auto-optimization technology
- 4.3" full-color touchscreen display for intuitive operation
- Flexible media handling: 1" to 4.1" widths on 1.5" cores
- Tool-free printhead and platen roller replacement for quick maintenance
- 4 GB Flash and 1 GB DDR3 memory with 2 GB user-accessible storage
- Multiple connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth
- Compact desktop form factor: 7.0" x 9.375" x 8.4375"
Technical Highlights
The WWCT03441-WDR supports media rolls up to 5" outer diameter and accommodates ribbons up to 984 feet, enabling extended production runs without frequent roll changes. Its 4.09" maximum print width handles standard label formats efficiently. The printer operates across standard AC power (100-240V, 50/60Hz) and maintains performance in environments from 0°C to 40°C.
SATO RF Analyze is a standout feature that automatically optimizes RFID antenna settings based on inlay type and label configuration, reducing encoding failures and improving tag read reliability across diverse supply chain applications. This automation minimizes operator intervention and troubleshooting time.
Memory and storage are substantial for a desktop printer: 4 GB Flash supports large form libraries and font sets, while 2 GB of user-accessible storage enables local caching of frequently used templates and label designs. Wi-Fi and Bluetooth connectivity—in addition to standard USB and Ethernet—facilitate flexible deployment in dynamic warehouse and manufacturing environments.
Typical Applications
- HF RFID tag encoding and verification for asset tracking and management
- Smart label production for supply chain visibility and traceability
- Item-level RFID tracking in manufacturing and logistics
- Automated inventory management with encoded label data
- Healthcare and pharmaceutical labeling with RFID verification
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The SATO CT4-LX represents a mature, production-proven platform for organizations scaling RFID-based label operations beyond simple barcode printing. The inclusion of SATO RF Analyze distinguishes this printer from commodity alternatives—antenna optimization at the device level ensures consistent encoding performance across variable label substrates and inlay geometries, a critical factor in high-volume production environments where encoding failures translate directly to supply chain disruptions.
The 203 dpi resolution is the industry standard for RFID smart labels, balancing print quality with thermal printer speed and media consumption. At 8 ips, throughput is sufficient for moderate-volume operations; for higher-speed requirements, SATO's CT4 lineup offers faster variants.
The touchscreen interface and tool-free maintenance design reflect enterprise expectations around usability and operational uptime. The compact footprint and wireless connectivity options make this printer suitable for distributed printing architectures where multiple units support fulfillment networks or manufacturing hubs. For organizations with existing SATO infrastructure, this printer integrates seamlessly with SATO label design and supply chain software ecosystems.
