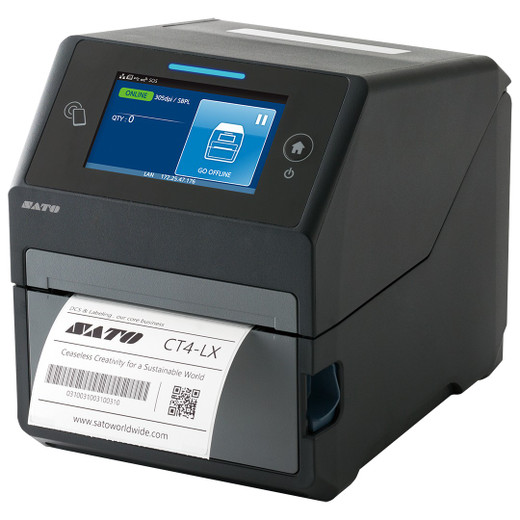

SATO CT4-LX 203dpi HF RFID Desktop Thermal Printer

SATO CT4-LX 203dpi HF RFID Desktop Thermal Printer – WWCT03441-NDR

The SATO WWCT03441-NDR is a compact yet powerful desktop thermal printer purpose-built for enterprise RFID label production. Combining 203 dpi thermal printing with integrated HF/NFC RFID encoding at 13.56 MHz, this printer delivers high-quality barcode labels and smart tags in a single pass. The 4.3-inch full-color touchscreen interface provides intuitive configuration, while tool-free printhead and platen replacement minimizes operational downtime. Ideal for asset tracking, supply chain visibility, and item-level inventory management, the CT4-LX series is engineered for reliability in demanding production environments.

Key Features

• 203 dpi print resolution at 8 ips for sharp barcode and text output
• HF/NFC RFID encoding with SATO RF Analyze auto-optimization for reliable antenna tuning across inlay types
• 4.09-inch maximum print width supports standard label formats
• 4 GB Flash, 1 GB DDR3, and 2 GB user-accessible storage for forms, fonts, and RFID data
• 4.3-inch full-color touchscreen for simplified operation and job setup
• Multi-connectivity: USB 2.0, Ethernet, Wi-Fi, and Bluetooth for flexible network integration

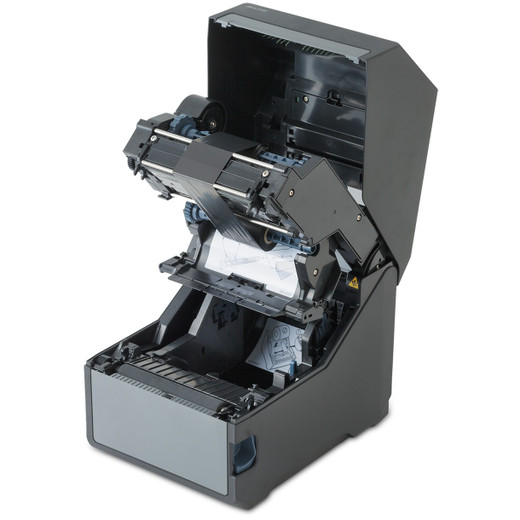

• Tool-free printhead and platen roller replacement reduces service time
• Supports media rolls up to 5 inches outer diameter with 1.5-inch cores
• Ribbon capacity up to 984 feet for extended print runs
• Compact 7.0" × 9.375" × 8.4375" footprint designed for desktop deployment

Technical Highlights

The CT4-LX operates across universal AC input (100-240V, 50/60Hz) with an operating range of 0°C to 40°C, making it suitable for varied facility environments. The Direct Thermal and Thermal Transfer printing methods provide flexibility for different label materials. Media width compatibility ranges from 1 inch to 4.1 inches, accommodating everything from small parcel tags to standard shipping labels. The SATO RF Analyze function automatically optimizes RFID antenna settings, eliminating manual tuning and ensuring consistent encoding quality across different tag inlay configurations—a critical advantage for high-volume production environments.

Typical Applications

• HF RFID tag encoding and verification for enterprise asset tracking
• Smart label production for supply chain and logistics visibility
• Manufacturing floor RFID-enabled item-level tracking
• Automated inventory management with embedded RFID intelligence
• Pharmacy and healthcare labeling with RFID authentication

Karl Wilson

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WWCT03441-NDR represents a solid mid-range choice for organizations requiring integrated thermal printing and HF RFID capabilities in a desktop form factor. The 203 dpi resolution strikes a balance between output quality and throughput, while the 8 ips speed supports moderate-to-high-volume label production without sacrificing print integrity. The SATO RF Analyze feature is particularly valuable—it addresses a common pain point in RFID production by automating antenna optimization, reducing failed encodes and rework.

The 4.3-inch touchscreen is responsive and user-friendly, though the interface will feel familiar primarily to existing SATO users. Memory allocation is adequate for most enterprise label templates, though organizations running complex variable data or high-density graphics should test throughput beforehand. Connectivity options are comprehensive, and Bluetooth addition enables wireless label preview from mobile devices.

Maintenance design is pragmatic: tool-free printhead removal is a genuine time-saver in high-utilization settings. This printer excels for supply chain, logistics, and healthcare environments where both barcode clarity and RFID reliability are non-negotiable.
