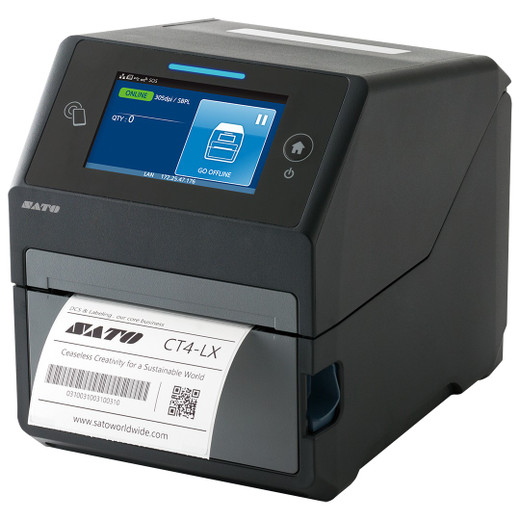

SATO CT4-LX 203dpi HF RFID Desktop Thermal Printer – WWCT03441-NCN
The SATO WWCT03441-NCN is a compact desktop thermal printer purpose-built for enterprise RFID label production and asset tracking workflows. Combining 203 dpi print resolution with integrated 13.56 MHz HF RFID encoding and NFC capability, this printer delivers reliable barcode, text, and RFID tag output in a footprint designed for tight workspace constraints. The 4.3-inch full-color touchscreen provides intuitive operation, while intelligent SATO RF Analyze technology automatically optimizes antenna settings across varying inlay types—eliminating manual tuning and reducing encoding failures.
Key Features
- 203 dpi resolution at 8 ips for sharp barcode and text output
- HF RFID (13.56 MHz) encoding with SATO RF Analyze auto-optimization
- 4 GB Flash, 1 GB DDR3, and 2 GB user-accessible storage for forms and fonts
- 4.3-inch full-color touchscreen with intuitive interface
- Multi-protocol connectivity: Ethernet, Wi-Fi, Bluetooth, and USB 2.0

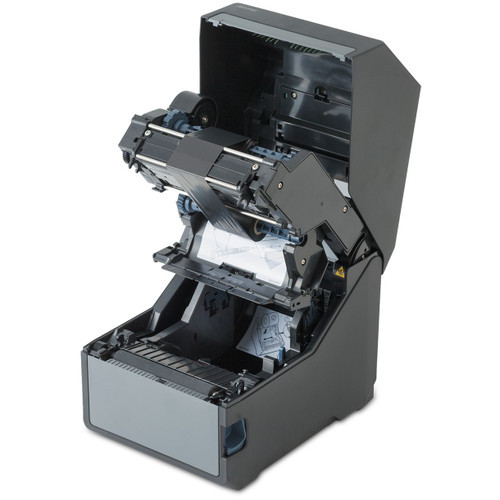

- Tool-free printhead and platen roller replacement
- Supports media widths 1" to 4.1"; ribbon capacity up to 984 ft
- Compact desktop form factor: 7.0" × 9.375" × 8.4375"; weighs 7.3 lbs
Technical Highlights
Print performance reaches 8 inches per second at 203 dpi across a maximum print width of 4.09 inches, suitable for standard label formats. The printer accommodates media rolls up to 5 inches in outer diameter on 1.5-inch cores, with ribbon capacity extending to 984 feet for extended production runs. Onboard memory includes 4 GB flash for firmware and graphics, 1 GB DDR3 for active operations, and 2 GB of user-accessible storage for custom forms, fonts, and RFID configurations.
RFID capabilities center on HF frequency operation at 13.56 MHz with integrated NFC support for tag encoding and verification. The SATO RF Analyze function distinguishes this model by automatically measuring and adjusting antenna power levels in real time, adapting to different inlay geometries and materials to maximize read reliability and encoding success rates without manual intervention.
Connectivity options span industrial and enterprise environments: Ethernet for network integration, Wi-Fi for wireless deployment, Bluetooth for mobile device pairing, and USB 2.0 for direct computer connections. The 4.3-inch full-color touchscreen serves as the primary interface for job setup, status monitoring, and diagnostics. Operating temperature range of 32°F to 104°F supports standard indoor environments, while AC 100–240V input accommodates global power standards.
Typical Applications
- HF RFID tag encoding and verification for asset tracking and management
- Smart label production for supply chain visibility and logistics
- Item-level RFID tagging in manufacturing and distribution
- Automated inventory management with real-time tag verification
- Retail and healthcare compliance labeling with embedded RFID
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WWCT03441-NCN positions itself as a mid-range enterprise RFID printer, balancing print quality, encoding reliability, and operational simplicity. The 203 dpi resolution is industry-standard for barcode and variable data applications; at 8 ips, throughput suits moderate-to-high-volume label production without requiring industrial-scale equipment.
The SATO RF Analyze feature is the critical differentiator. RFID encoding challenges often stem from impedance mismatches between antenna and inlay, leading to failed writes or reads. Automatic antenna tuning eliminates this pain point, reducing rework and increasing first-pass encoding success. Combined with 13.56 MHz HF frequency—the standard for NFC and item-level tagging—this printer addresses modern supply chain and asset tracking mandates.
Memory provisioning (4 GB flash + 2 GB user storage) is adequate for enterprise deployments with multiple label templates and RFID profiles. Multi-protocol connectivity supports both legacy Ethernet networks and modern Wi-Fi/Bluetooth infrastructure. Tool-free maintenance (printhead, platen) reduces service calls and operator training overhead—a tangible cost advantage in high-utilization environments. The compact desktop footprint suits space-constrained warehouses and retail back-office operations where floor space is premium.
