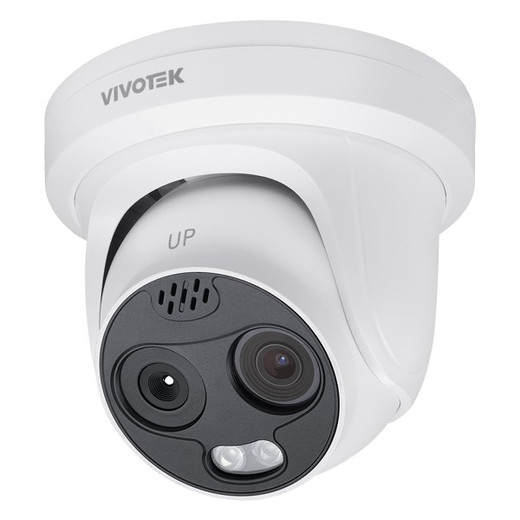

Vivotek TT9333-E(7MM) 4MP Bi-Spectrum Thermal IP Turret Camera
Overview
The Vivotek TT9333-E(7MM) combines simultaneous visible and thermal imaging in a single turret form factor, delivering 24/7 situational awareness across lighting extremes and environmental interference. The 4MP visible sensor pairs with a thermal detector to identify heat signatures regardless of darkness, fog, rain, or smoke—critical for perimeter security, facility monitoring, and critical infrastructure where conventional cameras fail. The 5–50mm motorized P-iris lens with 10x optical zoom (7MM focal length variant) enables flexible framing from entry points to distant boundary detection without changing hardware. This is the thermal solution for sites where dual-camera approaches burn budget and integration complexity.
Compatibility
The TT9333-E(7MM) integrates into standard IP surveillance networks via ONVIF Profile S/T/G and connects to any VMS supporting RTSP or ONVIF discovery (Axis Camera Station, Milestone, third-party systems). PoE++ (802.3bt) Class 4 delivery eliminates separate power runs on modern switches; legacy networks may require the included HLG-120H-24 supply (90–305VAC input, IP67 rated, −40°C to +70°C operation). Two-way audio integrates with intercoms and mass notification systems. Deep Learning processing (object analytics, people counting) runs edge-side, reducing VMS compute overhead and false-alarm noise in open perimeters.
Installation Notes
Wall, recessed, and pole-mount options accommodate outdoor facades, control-room racks, and perimeter poles. Covert 940nm infrared illumination extends thermal detection to 50 meters without visible light spillover—important for sites requiring low-profile operation. IP68 (dust/water immersion), IK10 (impact), and NEMA 4X (salt-spray corrosion) ratings support coastal, industrial, and extreme-weather deployments. Operating range −40°C to +70°C handles arctic and desert installs. Motorized zoom and iris require network power and configuration; field focus is manual. Advanced video processing (SNV II, WDR PRO II, Smart Stream III, Smart IR III) preserves detail in backlit and dynamic scenes while 3DNR suppresses thermal noise. H.265/H.264/MJPEG compression adapts to bandwidth and storage constraints.
What's in the Box
- 1x Vivotek TT9333-E(7MM) turret camera with 5–50mm motorized P-iris lens
- 1x HLG-120H-24 power supply (90–305VAC, IP67 rated)
- 1x mounting template and hardware kit
- 1x RJ-45 connector weatherproof boot
