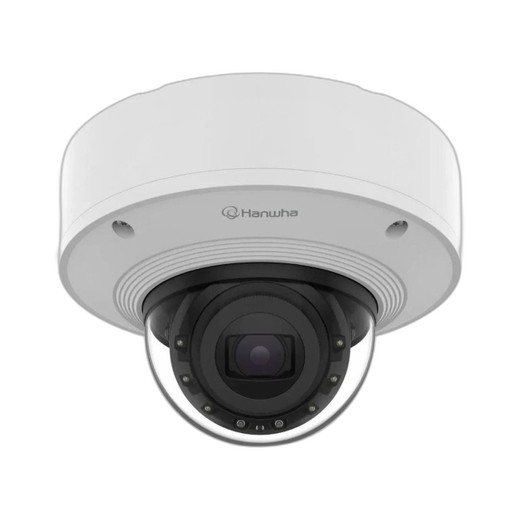

Hanwha XNV-8083R RB 6MP Outdoor Vandal Dome Camera

Hanwha XNV-8083R RB 6MP Outdoor Vandal Dome Camera

The Hanwha XNV-8083R RB is a 6MP outdoor vandal-resistant dome camera engineered for mission-critical surveillance in extreme environments. Built on the WN7 platform with X-Plus series architecture, this camera combines robust weatherproofing (IP67, IK10+, NEMA4X) with advanced AI-driven analytics for perimeter security, access control, and facility monitoring in demanding deployments.

Key Features

• 6MP Resolution at 30 FPS — Delivers sharp, detailed imagery for facial identification and license plate capture across outdoor scenes with sufficient frame rate for smooth motion tracking and forensic review.
• Motorized Varifocal Lens (4.4–9.3mm, 2.1x zoom) — Flexible field-of-view adjustment (112.1° to 47.5°) allows installers to dial in optimal coverage without repositioning or lens swaps.
• 50-Meter IR Range with Day/Night ICR — Infrared illumination extends visibility to 50m (164 ft) in complete darkness; automatic infrared cut-off filter ensures accurate color reproduction during daylight.
• Extreme Wide Dynamic Range (120dB) — Captures detail simultaneously in bright sunlit areas and deep shadows, critical for mixed-lighting environments like building entrances, parking structures, and loading docks.
• AI-Powered Object Detection & Analytics — Built-in AI engine detects persons, faces, vehicles, and license plates with intelligent video analysis including virtual line crossing, area intrusion, loitering, direction detection, and defocus alerts.
• Audio Detection & Sound Classification — Monitors acoustic events with intelligent sound analysis for enhanced situational awareness.
• Advanced Shock & Tampering Detection — Alerts operators to physical tampering, fog obstruction, camera shock, object appearance/disappearance, and defocus conditions.

Technical Specifications

• Video Compression: H.265 for efficient bandwidth and storage utilization
• Power Options: PoE+ (802.3at) or 12VDC for flexible deployment
• Weather & Impact Rating: IP67 (dust/water ingress protection) + IK10+ (vandal resistance)
• Operating Temperature: -50°C to +60°C (-58°F to +140°F) for extreme climate resilience
• Storage: microSD card support (512GB capacity)
• Frame Rate: 30 fps for smooth video playback and analytics processing
• Security Compliance: FIPS 140-2 certified, ONVIF compatible for VMS integration
• Mount Type: Ceiling mount for discrete installation

Ideal Applications

• Perimeter security and access point monitoring
• Parking lots, loading docks, and outdoor facilities
• Transportation hubs and critical infrastructure
• Harsh weather and high-vandalism environments
• License plate recognition and vehicle tracking
• Crowd monitoring and behavior analytics

Marty Allison

The XNV-8083R RB stands out for outdoor surveillance deployments requiring both physical durability and intelligent video analysis. The combination of IK10+ vandal rating and IP67 weatherproofing ensures long-term reliability in high-abuse environments. The 120dB extreme WDR capability is particularly valuable for mixed-lighting scenarios where traditional cameras struggle; this sensor-level capability (not digital processing) preserves detail in both highlights and shadows simultaneously.

AI object detection integrates seamlessly into the camera itself, reducing backend processing load and enabling real-time alerts for license plates, facial features, and behavioral analytics (loitering, direction changes, area intrusion). The motorized varifocal lens reduces post-installation costs by eliminating the need for multiple fixed-lens cameras to cover different focal lengths.

H.265 compression, combined with PoE+ power flexibility, makes this camera suitable for retrofit deployments where power infrastructure may be limited. FIPS 140-2 compliance signals suitability for government and high-security installations. ONVIF compatibility ensures vendor interoperability across most enterprise VMS platforms.
