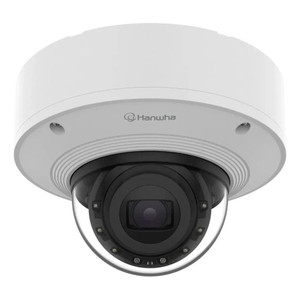

Hanwha XNV-8083R 6MP IR Vandal Dome Camera

Hanwha XNV-8083R 6MP IR Vandal-Resistant Outdoor Dome IP Camera

The Hanwha XNV-8083R is a professional-grade 6MP outdoor dome camera engineered for demanding surveillance applications requiring exceptional durability, advanced intelligence, and reliable night vision. Built with a 1/1.8" progressive CMOS sensor, this camera delivers crisp 6MP resolution across multiple format options, making it ideal for wide-area monitoring where detail and clarity are critical. The motorized 4.4–9.3mm varifocal lens (2.1x zoom) provides flexible field-of-view adjustment from 112.1° to 47.5° horizontally, adapting to diverse deployment scenarios without requiring manual lens changes.

Key Features

• AI-Powered Analytics: Integrated AI engine enables object detection (person, face, vehicle classes, license plate), IVA functions (virtual line crossing, area entry/exit, loitering, intrusion), and business intelligence (people counting, queue management, heatmap)
• Extreme WDR (120dB): Handles high-contrast scenes with balanced exposure, ideal for mixed lighting environments
• 50m IR Night Vision: WiseIR LEDs deliver clear monochrome imagery in complete darkness with 0 Lux capability
• Advanced Codec Support: H.265/H.264 and MJPEG compression with WiseStreamⅢ smart codec for bandwidth optimization
• Motorized Varifocal Lens: P-iris with IR correction and simple manual focus for precise framing
• Built-in Digital Stabilization: Gyro-based image stabilization reduces motion blur
• Defog Technology: Automatic defog support for visibility in adverse weather

Durability & Environmental Ratings

The XNV-8083R meets stringent outdoor and vandal-resistance standards: IP66/IP67/IP6K9K (hose-down protection), NEMA4X (corrosion resistance), and IK10+ (vandal resistance). Operating temperature range of −50°C to +55°C (with intermittent peaks to +60°C) ensures reliable performance across extreme climates. The hard-coated dome bubble and aluminum housing provide robust mechanical protection.

Connectivity & Storage

PoE+ (IEEE 802.3at Class 4) powered at typical 17.9W, eliminating separate power supplies. Gigabit Ethernet connectivity supports multiple streaming profiles with up to 10 independent video streams. Dual microSD/SDHC/SDXC card slots (max 1TB total) enable local edge recording; NAS support adds centralized backup. HTTPS/SSL encryption and TPM 2.0 (FIPS 140-2 Level 2) secure video streams and credentials.

Technical Specifications

• Resolution: 6MP (3328×1872) with 15+ resolution options from 320×240 to 3328×1872
• Frame Rate: H.265/H.264 up to 30fps (H.264 25fps at 50Hz); MJPEG up to 15fps
• Low-Light Performance: 0.04 Lux color, 0.004 Lux B/W (F1.3, 1/30sec)
• Noise Reduction: WiseNRⅡ (AI-based) and SSNRⅤ for clean night footage
• Backup I/O: 2 configurable alarm I/O ports, composite and USB video outputs for installation
• Pan/Tilt/Rotate: 360° pan, −45° to +85° tilt, 355° rotation

Applications

Ideal for perimeter security, traffic monitoring, retail/banking loss prevention, critical infrastructure protection, parking facilities, and transit stations where AI-driven threat detection, extreme durability, and high-resolution capture are essential.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-8083R represents a mature platform combining proven Hanwha imaging with enterprise-class AI and codec efficiency. The extremeWDR and AI object detection substantially reduce false alarms compared to motion-only systems, lowering operational burden. The motorized varifocal lens eliminates the need for multiple fixed-lens SKUs, reducing inventory complexity.

PoE+ power and dual storage options provide flexibility in deployment scenarios. Security features—TPM 2.0, 802.1X, HTTPS, and ONVIF compliance—meet regulatory requirements for sensitive installations. The 50m IR range is sufficient for most outdoor perimeter applications; long-range identify performance reaches 15.1m in tele mode, adequate for license plate capture at typical highway setups.

Low-light performance (0.04 Lux color) supports twilight surveillance without constant IR dependency, extending bulb life and reducing power spikes.
