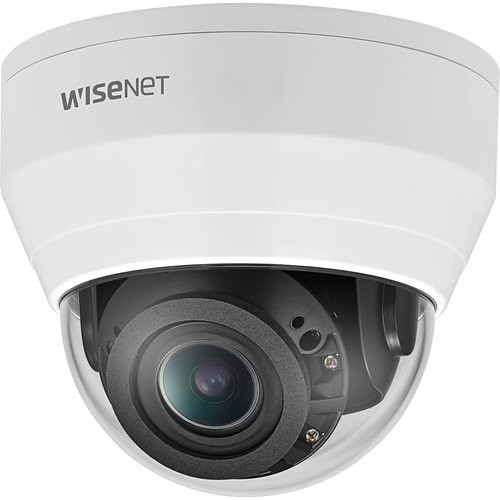

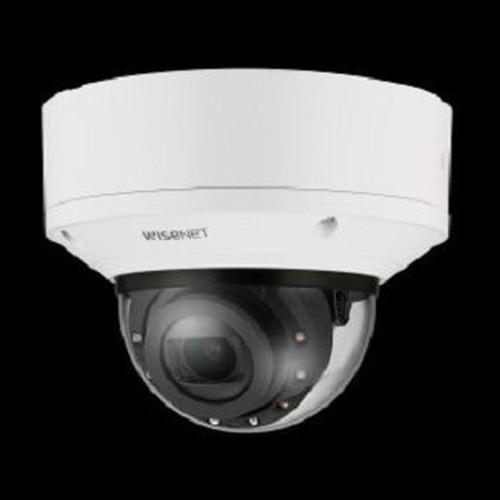

Hanwha XND-8083RV 6MP AI-Powered Indoor Vandal Dome IP Camera

The Hanwha XND-8083RV delivers enterprise-grade surveillance with AI intelligence built into a compact, vandal-resistant dome form factor. Engineered around a 1/1.8" progressive CMOS sensor, this 6MP camera captures detailed imagery across multiple resolution options while maintaining exceptional performance in challenging lighting conditions. Its motorized varifocal lens (4.4–9.3mm, 2.1x zoom) adapts to diverse coverage requirements, from wide-area monitoring to focused point-of-interest observation.

Core Imaging Capabilities

• 6MP resolution (3328×1872) with multiple output formats up to 30fps H.265/H.264
• Extreme WDR (120dB) with HLC and SSDR for balanced exposure across high-contrast scenes
• WiseIR 50-meter infrared range with 0Lux operation and IR-corrected P-iris lens
• AI-powered digital noise reduction (WiseNR II) and built-in gyro-based image stabilization
• Advanced defog and electronic shutter with anti-flicker control

Intelligent Analytics & Detection

At its foundation, the XND-8083RV features Hanwha's AI engine for sophisticated scene understanding. Object detection identifies persons, faces, vehicles (cars, buses, trucks, motorcycles, bicycles), and license plates in real-time. IVA (Intelligent Video Analytics) enables virtual line crossing, area entry/exit tracking, loitering detection, directional analysis, and intrusion alerts. Business intelligence modules deliver people counting, queue management, and heatmap analysis—critical for retail, transportation, and public-space deployments.

Robustness & Resilience

• IP52 and IK10 ratings ensure protection against dust, spray, and vandal impact
• Operating range: −25°C to +55°C with humidity-control GORE vent
• Dual microSD card slots (up to 1TB total) for local edge storage and failover recording
• 8 configurable motion detection zones and 32 privacy masking regions

Connectivity & Security

PoE+ (IEEE 802.3at Class 4) power delivery simplifies installation while 1000BASE-T Ethernet ensures reliable streaming. The camera supports H.265/H.264 and MJPEG compression with intelligent bitrate control via WiseStream II/III. Multiple streaming profiles (up to 10) accommodate diverse client requirements. Security is enforced through TPM 2.0 (FIPS 140-2 Level 2), HTTPS/SSL encryption, 802.1X authentication, digest login, and IP filtering. ONVIF Profile S/G/T compliance and Hanwha's open SUNAPI provide interoperability across enterprise VMS platforms.

Alarm & Event Management

Two configurable I/O ports support relay outputs for external devices. Alarm triggers include analytics events, network disconnect, scheduled tasks, and app notifications. Actions include email/FTP image upload, SD/NAS event recording, HTTP/HTTPS handover, and audio playback—enabling rapid response workflows.

Marty Allison

Perspective based on aggregated and affiliated engineering team experience.

The XND-8083RV is purpose-built for indoor facilities requiring resilient, intelligent surveillance without compromise on image quality. Its 120dB WDR and 50m IR range address the most demanding mixed-lighting scenarios—from brightly lit retail floors to dimly lit storage areas. The AI-driven analytics reduce false positives inherent in traditional motion detection, making it suitable for facilities with high foot traffic where operational efficiency matters.

The motorized varifocal lens eliminates the need for multiple fixed-angle cameras in many applications, lowering total cost of ownership. Edge storage via dual microSD slots provides autonomous operation during network interruptions, critical for continuous compliance recording. IK10 vandal resistance makes it practical for accessible indoor spaces such as transit hubs, parking facilities, and open office environments where dome cameras may face impact.

The combination of H.265 codec support, intelligent noise reduction, and stream optimization keeps bandwidth consumption lean—important for organizations managing large multi-camera estates. ONVIF and open API support ensure vendor independence and long-term integration flexibility within evolving security ecosystems.

Specifications Summary

• Sensor: 1/1.8" progressive CMOS
• Lens: 4.4–9.3mm motorized varifocal (F1.3–F2.15)
• Night Vision: WiseIR 50m with 0Lux IR LED operation
• Power: PoE+ (17.9W typical) or 12VDC with redundancy failover
• Storage: Dual microSD up to 1TB; NAS support
• Protocols: ONVIF, IPv4/IPv6, RTSP, HTTP/HTTPS, SMTP, FTP, SNMP
• Dimensions: Ø160×125mm; 1.6kg
