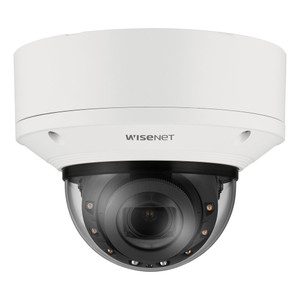

Hanwha XND-C9083RV 8MP AI Vandal-Resistant Dome Camera

Hanwha XND-C9083RV 8MP AI Vandal-Resistant Dome Camera

The XND-C9083RV is an indoor IP dome camera purpose-built for environments where robustness and intelligence matter: retail floors, educational facilities, corporate offices, and municipal spaces. It combines 8MP resolution with on-camera AI analytics, extreme wide dynamic range (120dB), and a hard-coated polycarbonate dome rated for impact and dust. This is not an entry-level device — it's engineered for integrators who need vandal resistance without sacrificing image quality or investigative capability.

Resolution, Lens, and Coverage

The 8MP sensor (3840×2160) delivers sufficient detail for identify-level recognition at moderate distances when paired with the motorized 4.4–9.3mm varifocal lens (2.1x zoom range). A single installation point can cover both wide overviews and focused details without repositioning — the motorized zoom and focus allow remote adjustment during commission and troubleshooting. The 360° pan, −45° to +75° tilt, and 0° to 355° rotate capability means the dome can be oriented to any wall or ceiling position and adjusted post-installation if coverage requirements shift.

Low-Light and Dynamic Range

IR illumination extends to 40 meters (131 feet), and the sensor achieves 0.004 Lux sensitivity in monochrome mode — effective 24/7 coverage even in near-total darkness. The 120dB extreme WDR handles mixed lighting: bright storefronts adjacent to dark corridors, or windows with sunlight streaming in. Multiple backlight compensation modes (BLC, HLC, SSDR) fine-tune response to your specific scene; WiseNR II noise reduction keeps video clean without aggressive blur that destroys fine detail. A built-in gyro sensor powers digital image stabilization — useful if the dome vibrates from HVAC or nearby traffic.

AI Analytics and Detection

On-board AI engines detect and classify persons, faces, vehicles, and license plates in real time. This means alerts trigger on specific object types, not just motion — reducing false alarms and cutting through hours of footage to find relevant events. Business intelligence features including people counting, queue management, and heatmap visualization add operational insight: you can see traffic patterns, identify bottlenecks, and measure effectiveness of layout changes. The system supports 32 privacy masking zones with color and mosaic options for compliance with biometric or sensitive-area requirements.

Codec and Network Efficiency

H.265 codec compresses video roughly 40–60% smaller than H.264, cutting storage and bandwidth proportionally — a tangible cost saving on 24/7 multi-camera deployments. The XND-C9083RV also supports H.264 and MJPEG, with WiseStream II/III smart codec adaptation that adjusts bitrate based on scene complexity. Up to 10 simultaneous streaming profiles allow different quality/bitrate combinations for different clients: high-quality recording while live view uses lower bandwidth.

Power and Integration

PoE (IEEE 802.3af Class 3) powers the camera at under 13W maximum, so it won't stress a standard PoE switch. Edge storage via microSD/SDHC/SDXC slot (up to 512GB) provides local fallback if the network goes down — critical for compliance-sensitive environments. Full NVR compatibility via ONVIF Profile S/G/T/M, SUNAPI HTTP API, and Wisenet platform support means integration into existing systems is straightforward. HTTPS/SSL encryption, 802.1X EAP authentication, digest and certificate-based user access, and MQTT integration enable enterprise-grade security and third-party system hooks.

Durability and Environment

IP52 rating protects against dust and splash (think indoor spaces with occasional high-pressure cleaning). IK08 impact resistance means the hard-coated dome withstands intentional tampering — fist strikes, thrown objects — without shattering. Operating range of −10°C to +50°C covers most climate-controlled interiors. The compact form factor (ø160 × 118mm, 1.35kg) fits standard mounting conduits and gangboxes without custom brackets.

Frequently Asked Questions

Q: What's the maximum effective range for face recognition on the XND-C9083RV?

A: At 8MP with the varifocal lens zoomed to 9.3mm tele position, face detail is usable to approximately 17.7 meters under good lighting. At 4.4mm wide position, the same image quality extends to roughly 5.1 meters. Actual performance depends on face size, lighting, and subject cooperation; these figures assume frontal, clear-view conditions.

Q: Does the camera support two-way audio?

A: The evidence provided does not include audio capability specifications. Confirm audio requirements with the datasheet or manufacturer before specifying.

Q: What happens if the network connection drops — does the camera keep recording?

A: Yes. The built-in microSD/SDHC/SDXC slot (up to 512GB) provides local edge storage that continues recording even when the NVR or network is unreachable. Video remains on the card until network recovers and synchronizes, or until the card fills. This is useful for compliance scenarios where loss of footage is unacceptable.

Q: Is the XND-C9083RV NDAA compliant or eligible for U.S. federal procurement?

A: The evidence provided does not confirm NDAA Section 889 compliance or federal procurement eligibility. Verify directly with the manufacturer or your reseller if this is a requirement.

Q: Can the varifocal lens be adjusted remotely after installation?

A: Yes. The motorized zoom and focus allow adjustment via the camera's web interface or integrated VMS. After initial commissioning, you can retune the field of view or focus without physically accessing the camera.

Q: What PoE power supply specifications do I need for the XND-C9083RV?

A: The camera draws a maximum of 12.95W via standard IEEE 802.3af PoE (Class 3). A managed PoE switch with sufficient total budget is all you need — no separate power supply required. Budget roughly 15W per camera as a planning figure to account for cable loss.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-C9083RV is a solid mid-range choice for indoor environments where vandalism is a real concern and you need AI-driven analytics without enterprise complexity. The 8MP resolution paired with the motorized 4.4–9.3mm varifocal lens gives you enough detail for identity-level recognition at usable distances (identify faces to ~17.7m, wide overview to ~5.1m), while the 40-meter IR and 0.004 Lux sensitivity ensure reliable 24/7 coverage. The 120dB extreme WDR handles mixed lighting that would blind cheaper cameras, and the IK08 impact rating plus IP52 ingress protection make this genuinely suitable for semi-exposed indoor installations — not just marketing claims.

Technical Highlights:

• H.265 codec with WiseStream II/III: Cuts storage footprint 40–60% compared to H.264 while supporting 10 simultaneous profiles. On a 24/7 multi-camera deployment, this translates directly to fewer drives or longer retention on the same hardware.
• AI object detection (person, face, vehicle, license plate): Real investigative value for parking facilities and access control scenarios. Unlike motion-only alerts, classification-based triggers reduce false positives and let you search by object type instead of scrubbing hours of footage.
• Motorized P-iris with IR correction: Automatically adjusts iris depth and focus as lighting changes or when IR kicks in at night. Manual focus override is included, useful for edge cases like reflective surfaces.
• 12.95W max PoE draw: Won't strain a standard 802.3af switch. Budget-friendly on power provisioning, especially in retrofit scenarios where you lack spare PoE+ capacity.

Deployment Considerations:

• AI analytics perform best with clear subject visibility — side-angle, occluded, or tiny-in-frame targets degrade accuracy. Size your coverage to match the analytics you actually need.
• The IK08 rating (1.1m drop of 5kg steel ball) is respectable but not military-grade. It handles fists and thrown objects, but repeated impacts or determined forced removal may eventually break the dome — nothing below a full pressure vessel is truly vandal-proof.
• IP52 means splash and dust-resistant, not waterproof. This is indoor or covered-soffit territory. Skip this model if you need full outdoor rain exposure without a shroud — that requires IP66 or IP67 at minimum.

Deploy the XND-C9083RV in retail environments, school hallways, office corridors, and municipal spaces where AI classification adds real investigative value and the dome needs to survive the occasional tap without shattering. It's not the cheapest dome in the catalog, but the motorized lens, edge storage, and true AI analytics justify the cost when identity-level detail and automated alerting matter.
