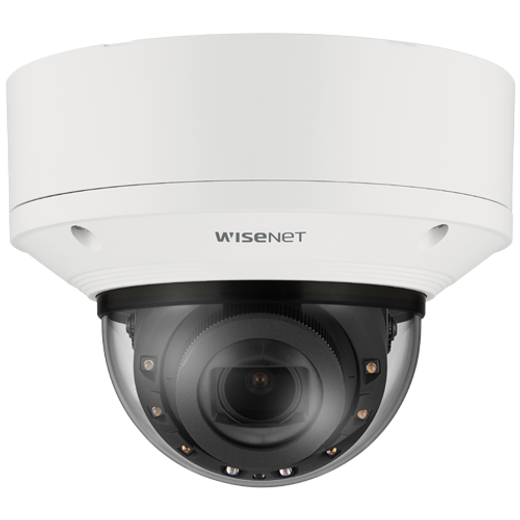

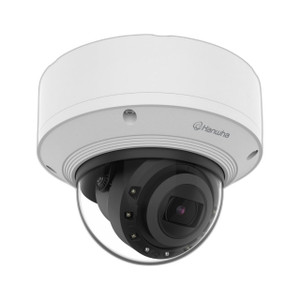

Type:
Dome
Frame Rate:
30fps
Imaging Device:
1/1.8" progressive CMOS
Resolution:
3328×1872
Max. Framerate:
30fps
Min. Illumination:
0.04 Lux color / 0 Lux IR
Video Out:
USB: Micro USB Type B, 1280x720 for installation
Focal Length (Zoom Ratio:
4.4~9.3mm(2.1x) motorized varifocal
Max. Aperture Ratio:
F1.3(Wide) ~ F2.15(Tele)
Angular Field of View:
H: 112.1°, V: 58.0°
Min. Object Distance:
0.5m(1.64ft)
Focus Control:
Simple focus, Manual
Lens Type:
P-iris(IR corrected)
Pan / Tilt / Rotate Range:
0°~360° / -45°~75° / 0°~355°
Camera Title:
Displayed up to 85 characters
Day & Night:
Auto(ICR)
Backlight Compensation:
BLC, HLC, WDR, SSDR
Wide Dynamic Range:
extremeWDR (120dB)
Digital Noise Reduction:
WiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image Stabilization:
Support(built-in gyro sensor)
Defog:
Support
Motion Detection:
8ea, 8point Polygonal zones
Privacy Masking:
32ea, Quadrangle zones - Color : Gray, Green, Red, Blue, Black, White - Mosaic
Gain Control:
Support
White Balance:
ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor
LDC:
Support (Fill/stretch mode)
Electronic Shutter Speed:
2~1/12,000 sec
Video Rotation:
Flip, Mirror, Hallway view(90°/270°)
Analytics:
- Analytics events based on AI engine : Object detection (Person/Face/Vehicle(car/bus/truck/motorcycle/bicycle)/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, Appear/Disappear, intrusion) - Analytics events : Defocus detect
Business Intelligence:
Based on AI engine : People counting, Queue management, Heatmap
Alarm Inputs/Outputs:
2 configurable I/O ports
Alarm Triggers:
Analytics, Network disconnect, Alarm input, App event, Time schedule
Alarm Events:
When alarm trigger occurred - File upload(image) : e-mail/FTP - Notification : e-mail - Recording : SD/SDHC/SDXC or NAS recording at event triggers - Alarm output - Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) - Audio clip playback
Audio In:
Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out:
Line out, Max.output level: 1Vrms
IR Viewable Length:
WiseIR 40m(131.23ft)
Ethernet:
Metal shielded RJ-45(10/100BASE-T)
Video Compression:
H.265/H.264: Main/High, MJPEG
Audio Compression:
G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, +more
Smart Codec:
WiseStream II/III, Manual modes
Bitrate Control:
H.264/H.265: CBR or VBR MJPEG: VBR
Streaming:
Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support)
Protocol:
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast)
Security:
HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate HTPM
Application Programming Interface:
ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform
Webpage Language:
English, Korean, Chinese, French, Italian, +more
Edge Storage:
Micro SD/SDHC/SDXC 1slot 512GB
RAM:
4GB RAM, 512MB Flash
Operating Temperature / Humidity:
-10 to 50°C, 0-95% RH non-condensing
Storage Temperature / Humidity:
-50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
Certification:
IP52, IK08
Input Voltage:
PoE(IEEE802.3af, Class3), 12VDC
Power (Max:
12.95W
Color / Material:
White / Aluminum + PC Hard-coated dome bubble
RAL Code:
RAL9003
Product Dimensions / Weight:
Ø160x118mm(Ø6.30x4.65"), 1350g(2.98 lb)
Detect (25PPM/ 8PPF:
Wide: 44.8m(147.02ft) / Tele: 151.3m(496.29ft)
Observe (63PPM/ 19PPF:
Wide: 17.9m(58.81ft) / Tele: 60.5m(198.52ft)
Recognize (125PPM/ 38PPF:
Wide: 9.0m(29.4ft) / Tele: 30.3m(99.26ft)
Identify (250PPM/ 76PPF:
Wide: 4.5m(14.7ft) / Tele: 15.1m(49.63ft)
Product Type:
Dome
Connectivity:
Wired
IP Rating:
IP52
Features:
WDR
Night Vision:
IR
Power Type:
PoE
PoE Class:
3
Form Factor:
Dome
Vandal Rating:
IK08
Compatibility:
ONVIF
IR Distance:
0.5m
Built-in IR:
Yes
Day/Night:
Yes
Storage Support:
microSD
HTTPS Encryption:
Yes
WDR:
WDR
Housing Color:
White
Environment Rating:
Indoor
Warranty:
3-year warranty
Poe Power:
PoE (802.3af)
Ir Lowlight:
IR
Compression:
H.265; H.264; MJPEG
Onvif:
Yes
Audio:
Audio input
Lens Focal Length:
Varifocal
Compatible Accessories:
(Optional)
Lens:
Type P-iris(IR corrected)
Camera:
Title Displayed up to 85 characters
Ethernet Rate:
Metal shielded RJ-45(10/100BASE-T)
Application:
Programming Interface ONVIF Profile S/G/T
Memory:
4GB RAM, 512MB Flash
Operating Temp:
/ Humidity -10 °C ~ 50 °C(14°F ~ +122°F)
Storage:
Temperature / Humidity -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH
