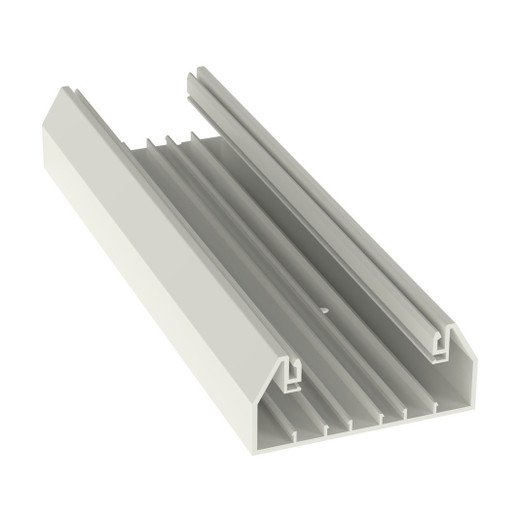

Panduit T70BIW8 T-70 Raceway Base

The Panduit T70BIW8 delivers 8 feet of pre-punched T-70 raceway base for perimeter wall routing in commercial installations. This PVC channel measures 4.07" wide by 1.77" high (103.4mm × 45mm), providing the capacity integrators need for mixed low-voltage, fiber, and power cabling runs without the layout hassle of field-drilling mounting points. Whether you're installing access control drops in a multi-tenant office or running network home runs in a datacenter, the T70BIW8's factory-punched holes align with standard stud spacing and let you anchor the base in minutes rather than marking, measuring, and drilling every mount point by hand.

Key Features

8 ft (2.4m) raceway base length in cream white PVC

4.07" × 1.77" (103.4mm × 45mm) overall raceway profile with snap-on cover

Pre-punched mounting holes eliminate field drilling and speed installation

Compatible with Pan-Way Classic Style snap-on faceplates and NEMA standard 70mm faceplates

Transitions to Panduit T-45 and LD profile raceway for multi-zone systems

Workstation Outlet Center™ offset box compatible for high-density outlet runs

UL-listed, CSA-certified, CE-compatible, RoHS-compatible

Package of 8 pieces for job-site efficiency

The T-70 profile solves the perimeter routing problem that integrators face when running mixed-voltage services along exterior walls or corridor routes. The 4.07" width handles multiple Cat6A bundles, fiber trunks, and 18/2 power pairs side by side without violating separation requirements. Pre-punched mounting holes arrive on 16" centers (verify your layout), so you're not burning labor hours with a tape measure and drill jig just to hang base. Mount the T70BIW8 sections end to end, dress your cables into the channel, snap on the matching T-70 cover, and install Pan-Way faceplates at device locations. The offset box design—Panduit's Workstation Outlet Center™—pushes outlets forward from the wall plane, maximizing channel capacity behind the plate and letting you pack more drops per linear foot without congestion at termination points.

The T-70 system transitions cleanly to Panduit T-45 and LD profile raceway, so when your perimeter run meets a column or needs to drop to desk height, you're not stuck splicing dissimilar channels or exposing cable in transition gaps. Use Panduit's raceway fittings (inside corners, outside corners, tee sections, end caps) to route around architectural features without custom fabrication. The cream white PVC finish blends into most commercial interiors; if you need a different color for a specific design spec, verify availability with your distributor before ordering volume. The T70BIW8 ships in packages of 8 pieces (48 pieces per carton), so you're ordering in practical job-site quantities rather than buying singles or oversized bulk that won't fit in the van.

This raceway base meets UL and CSA safety standards for low-voltage wire management and carries CE and RoHS compliance for international or government projects with environmental procurement rules. For access control integrators running REX devices, mag locks, and card readers along a building perimeter, the T-70 profile keeps power and data separate in a single surface-mount channel that doesn't require wall penetration or drywall patching. For IT installers bringing fiber and copper from an IDF to perimeter offices, the T70BIW8 gives you a code-compliant pathway that doesn't compromise fire rating or leave cables exposed to damage.
