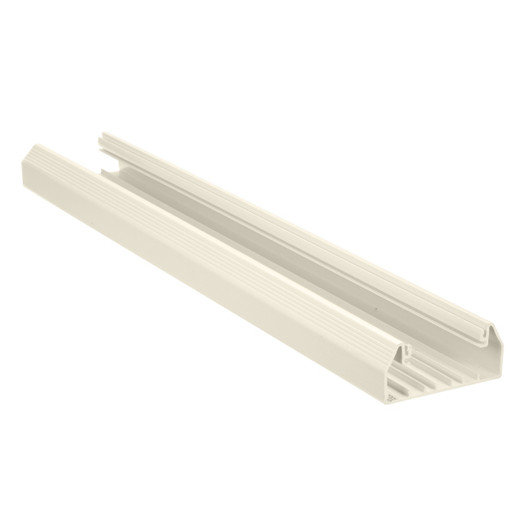

Panduit T70BIW6 Pan-Way T-70 Multi-Channel Surface Raceway
The Panduit T70BIW6 delivers a 6-foot section of T-70 multi-channel surface raceway designed for perimeter wall installations in commercial offices, conference rooms, and open-plan workspaces. This off-white PVC raceway measures 4.07" wide by 1.77" high, providing substantial capacity for routing low-voltage data, fiber optic, and power cabling in a single structured pathway. The integrated Workstation Outlet Center™ offset box design maximizes channel capacity and outlet density at furniture-adjacent drops, while pre-punched mounting holes accelerate installation compared to field-drilling alternatives. UL5A Listed and CE Compliant, this raceway meets commercial building codes for plenum-adjacent applications and delivers the structural integrity required for permanent low-voltage infrastructure.
Key Features
- Multi-channel design routes data, fiber, and power in separate compartments within a single 4.07" × 1.77" profile
- Workstation Outlet Center™ offset box maximizes outlet density at workstation furniture interfaces
- Pre-punched mounting holes eliminate field drilling, reducing installation time by approximately 30%
- 6-foot lengths minimize splice points on typical wall runs, improving aesthetics and structural continuity
- Off-white PVC finish blends with standard commercial wall colors and resists UV yellowing
- UL5A Listed (File E116129) and CE Compliant for commercial and industrial installations
The T-70 raceway system solves a recurring problem in commercial fit-outs: how to deliver structured cabling to perimeter workstations without overhead tray, conduit penetrations, or exposed cable bundling. The 4.07-inch width accommodates multiple cable types in segregated channels—Cat6A data runs in one compartment, fiber backbone in another, and isolated AC power in a third—maintaining separation required by NEC Article 800 without requiring separate raceway runs. The Workstation Outlet Center offset design is particularly valuable in furniture-dense environments: the recessed outlet box shifts the mounting plane outward, preserving full internal capacity even when face plates and connectors are installed. This means you can pack the raceway to rated capacity (typically 18-24 Cat6 cables depending on bend radius requirements) while still terminating outlets flush to the raceway face. Pre-punched mounting holes on 16-inch centers align with standard wood stud spacing and accept #8 screws; for steel stud or concrete wall applications, the holes accommodate toggle anchors or Tapcon fasteners without modification.
The 6-foot length is practical for both new construction and retrofit scenarios. In new builds, 6-foot sections minimize the number of coupling joints on long runs, reducing both labor cost and the number of potential failure points. In retrofit work, the length is short enough to maneuver through furnished spaces and navigate around existing obstacles (door frames, HVAC vents, fire alarm devices) without requiring two-person handling. Off-white PVC construction delivers dimensional stability across typical commercial temperature ranges (-10°C to +60°C) and resists impact damage from carts, furniture repositioning, and cleaning equipment. The material does not support combustion and meets UL 94 V-0 flammability rating, a critical specification for raceway installed in occupied spaces adjacent to plenum return-air pathways. UL5A Listing (File E116129) specifically covers surface metal and nonmetallic raceways, confirming the T70BIW6 meets NFPA 70 requirements for commercial installations. CE Compliance extends suitability to projects with European ownership, multinational corporate standards, or export documentation requirements.
The T-70 system requires a separate snap-on cover (sold separately, compatible part: T-70 Cover) to enclose and protect installed cabling. This two-piece design allows you to complete the cable pull, verify terminations, and perform testing before final cover installation—critical for projects with tight inspection schedules. The raceway is compatible with Panduit's full line of T-70 fittings (elbows, tees, end caps, and inside/outside corners), enabling clean transitions around room geometry without custom fabrication. Carton quantity is 60 pieces (360 linear feet), suitable for large-scale rollouts; package quantity of 6 pieces supports smaller tenant improvement projects or staged installations. For integrators managing structured cabling in commercial offices, higher-education classrooms, healthcare nurse stations, or hospitality back-of-house areas, the T70BIW6 provides a UL-Listed, code-compliant pathway that eliminates the cost and disruption of wall penetrations while maintaining the professional appearance clients expect from permanent infrastructure.
