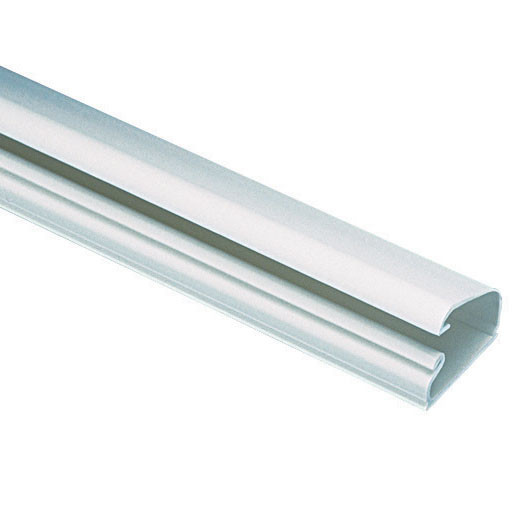

Panduit LD5IW8-A 8 ft Surface Raceway Channel - Ivory

Panduit LD5IW8-A Pan-Way LD5 8 ft Surface Raceway Channel

The Panduit LD5IW8-A is an 8-foot section of Pan-Way LD5 low-voltage surface raceway, engineered for clean, code-compliant routing of data, voice, video, and AV cabling in commercial environments. This single-piece hinged channel features factory-applied adhesive backing for fast installation on walls, baseboards, or drop ceilings without drilling or anchoring. The 1.01-inch × 0.58-inch interior cross-section provides capacity for multiple Cat 6, coax, and fiber runs while maintaining a low profile that blends into finished spaces. Built from rigid ivory PVC with UL 94V-0 flame rating and UL 5A listing, this raceway meets TIA/EIA structured cabling standards and is the go-to solution for retrofit installations where in-wall conduit is impractical or cost-prohibitive.

Key Features

• 8-foot rigid PVC channel with 1.01\" × 0.58\" interior cross-section for multi-cable low-voltage runs
• Factory-applied adhesive backing accelerates installation on walls, baseboards, and smooth ceilings
• One-piece hinged design with integrated snap-on cover — open for cable loading, close for finished appearance
• UL Listed (UL 5A), UL 94V-0 rated, FT4 compliant, meets TIA/EIA structured cabling standards
• Ivory color blends with most commercial and residential interior finishes
• Compatible with full Pan-Way LD mounting box, splice box, and radius-control fitting ecosystem

Pan-Way LD5 raceway solves the perimeter-routing problem in retrofit and tenant-improvement projects where cutting drywall or pulling through existing walls is off the table. The factory adhesive backing bonds to painted drywall, wood trim, vinyl cove base, and most smooth non-porous surfaces — eliminating the need for mechanical fasteners in most installations. For high-traffic areas or vertical runs, supplemental screws through the base channel provide additional hold. The one-piece hinged cover snaps open along its full length, allowing you to lay in cables without fishing or end-feeding, then snaps closed to conceal and protect the bundle. The 1.01-inch width and 0.58-inch depth accommodate typical data-drop bundles: two Cat 6A cables plus slack, or one Cat 6 plus RG6 coax plus fiber, with room for bend-radius compliance at terminations. The rigid PVC construction maintains shape under cable weight and resists UV degradation in perimeter spaces with window exposure.

Deploy LD5 raceway for office cubicle runs from ceiling distribution to workstation height, retail point-of-sale cabling from backroom to register stations, conference-room AV trunk lines, and hospitality in-room service drops. The ivory finish is the neutral choice for most commercial paint schemes; Panduit also offers the LD5 profile in white and electric ivory for color-matching to specific trim packages. Because the raceway is non-metallic, it won't introduce ground loops or shield interference in AV or low-voltage control systems. The channel segments with push-fit internal couplers or external splice covers (sold separately), and the Pan-Way LD fitting line includes flat elbows, internal elbows, tees, and end caps to handle direction changes and terminations. For radius-controlled turns — critical in fiber or plenum-rated installations — the LD5 system offers 1-inch radius fittings that maintain TIA-568 compliance.

The LD5IW8-A is UL Listed under the UL 5A standard for surface raceways and carries UL 94V-0 flame rating, meaning it self-extinguishes and won't propagate fire along cable runs. It meets FT4 vertical flame-test requirements and complies with TIA/EIA-568 and TIA/EIA-569 structured cabling pathway standards. Use this raceway in any low-voltage application where you need fast, reversible, code-compliant cable routing without the cost and disruption of in-wall conduit or the appearance compromise of exposed cables. Each 8-foot section ships ready to cut to length on site with a fine-tooth saw, and the adhesive backing remains stable through typical HVAC temperature swings in conditioned spaces.
