Panduit T-70 Raceway Base 4.07X1.77IN 6FT - T70BWH6

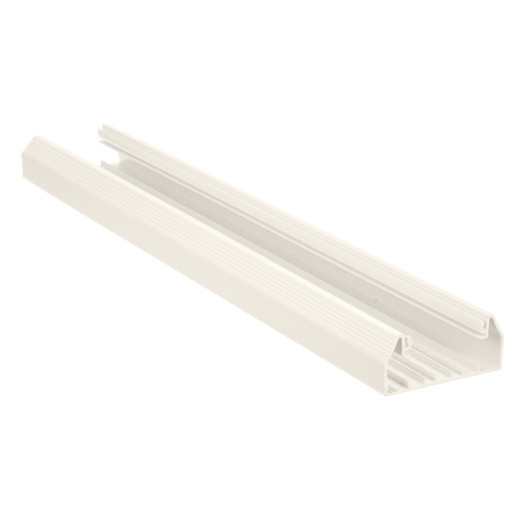

Panduit T70BWH6 T-70 Raceway Base 4.07x1.77in 6ft White

Overview

The Panduit T70BWH6 is the base component of the T-70 surface raceway system — a 4.07-inch-wide by 1.77-inch-deep channel section designed for organizing and protecting cable runs in network infrastructure, structured cabling, and data center environments. At 6 feet per section, it provides a practical run length that balances coverage with manageable installation segments in commercial and enterprise settings.

As a base-only component, T70BWH6 pairs with a separately sourced T-70 cover to form a complete enclosed raceway. This split-component design lets you stage installation — run and dress cables first in the open base, then snap covers on once routing is finalized, which is the right approach in phased deployments or when cable additions are anticipated.

Key Features

• 4.07-inch interior width: The channel cross-section accommodates high-density cable bundles — relevant for backbone runs carrying Cat6A, fiber, and low-voltage control cabling side by side. Tighter raceways force you to de-bundle or over-bend; at 4.07 inches, you have room to maintain bend radius on larger-diameter cables.
• 1.77-inch channel depth: Sufficient depth for multi-layer cable stacking without crowding — important when you're running both data and power-limited circuit cabling through the same pathway and need physical separation to meet NEC bundling requirements.
• 6-foot section length: Each T70BWH6 base covers 6 linear feet, making it straightforward to calculate material quantities for a run. Standard wall heights and rack-to-wall distances typically align well with 6-foot increments, reducing cut waste on most commercial installation layouts.
• Surface-mount raceway design: Installs directly on walls, ceilings, or above-ceiling structures without requiring in-wall rough-in — practical for retrofit and tenant improvement projects where opening finished surfaces is not feasible.
• Structured cabling and data center application: The T-70 system is sized and proportioned for horizontal distribution, equipment room cable management, and above-ceiling backbone segments in enterprise and commercial environments — not a residential or light-duty channel.
• Base-only component — modular by design: Purchasing base sections separately from covers allows precise material staging. You can stock bases and covers independently, replacing or adding covers without disturbing existing cable routes, which matters in live environments.

Integration and Compatibility

The T70BWH6 base is part of Panduit's T-70 raceway family, which includes matching covers, inside and outside corners, tees, elbows, and reducer fittings. All fittings in the T-70 line are sized to the same 4.07x1.77-inch profile, so transitions between straight runs and directional changes maintain a uniform channel cross-section throughout the pathway.

In structured cabling installations, T-70 raceways are typically deployed as horizontal cable management in open office environments, IT rooms, and distribution corridors — anywhere a clean, paintable surface channel is preferred over cable tray or conduit. The white finish (encoded in the WHT suffix of the MPN) is standard for commercial interiors where aesthetics are a consideration.

For data center and server room deployments, the T-70 base works well for above-rack horizontal runs and wall-to-rack transitions. Pair with cable management accessories such as D-rings, vertical managers, and patch panel strain relief to build a complete cable pathway system from rack to IDF.

Note: covers, corners, and fittings are sold separately. Verify cover compatibility within the T-70 product line when placing orders — the T-70 cover (not the T-70B or T-45 series) matches this base profile.

Frequently Asked Questions

Q: What is the interior channel size of the T70BWH6 raceway base?

A: The T70BWH6 has a 4.07-inch width and 1.77-inch depth, providing a large cross-section suitable for high-density cable bundles in structured cabling and data center runs.

Q: Does the T70BWH6 include a cover?

A: No. The T70BWH6 is the base component only. A matching T-70 cover must be ordered separately to form a fully enclosed raceway channel.

Q: How long is each T70BWH6 section?

A: Each base section is 6 feet (approximately 1.83 meters) in length.

Q: What color is the T70BWH6?

A: White, as indicated by the WHT suffix in the model number — standard for commercial interior installations.

Q: What types of cable installations is the T70BWH6 suited for?

A: The T70BWH6 is designed for network infrastructure, structured cabling, and data center connectivity applications — including horizontal cable distribution, backbone runs, and wall-mounted pathway systems in commercial and enterprise environments.

Q: Can the T70BWH6 be used in retrofit or tenant improvement projects?

A: Yes. As a surface-mount raceway, it installs on finished walls and ceilings without requiring in-wall rough-in, making it practical for retrofit installations where opening finished surfaces is not an option.

Eden Phillips

The T70BWH6 is a workhorse base section I consistently spec into commercial structured cabling retrofits — the 4.07-inch channel width is the deciding factor. Most installers underestimate how quickly a high-density run fills a narrow raceway, and then you're forced to either add a parallel channel or pull new sections entirely. At 4.07 inches, you have meaningful headroom for future cable additions without re-opening the pathway.

Technical Highlights:

• 4.07in channel width: Accommodates high-density bundles of Cat6A, fiber, and low-voltage control cabling simultaneously — important when structured cabling and security system cabling share the same pathway.
• 1.77in channel depth: Enough depth to maintain proper bend radius on larger-diameter cables and to physically separate data and power-limited circuits within the same base when needed.
• 6ft section length: Practical for material take-offs — most commercial floor-to-ceiling or rack-to-wall runs align to 6-foot increments, minimizing cut waste and simplifying quantity estimates.

Deployment Considerations:

• Order covers, corners, and fittings from the T-70 line specifically — the T-70B and T-45 series use different profiles and will not fit the T70BWH6 base.
• The base-only design is an advantage in live environments, but it also means cabling is exposed until covers are installed — schedule cover installation before the space is occupied if aesthetics or cable security are concerns.

For tenant improvement and open-office structured cabling projects where a clean white surface channel is required and in-wall rough-in isn't an option, the T70BWH6 is the right base to specify — size it, stage it, and cover it once routing is locked in.
