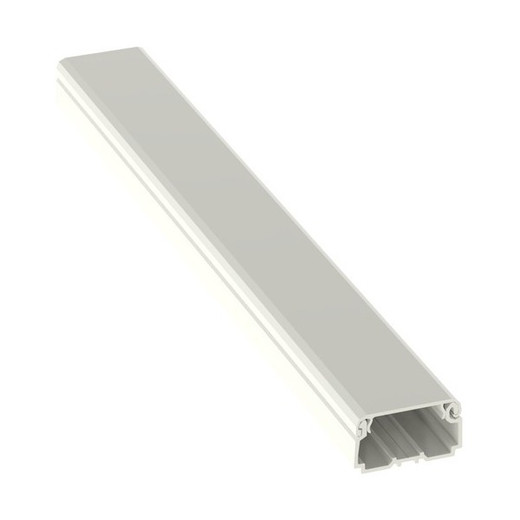

Panduit LDPH10WH10-A 10' Power-Rated Surface Raceway

Panduit LDPH10WH10-A Pan-Way LD Power-Rated Surface Raceway

The Panduit LDPH10WH10-A is a 10-foot white power-rated surface raceway engineered for installers who need compliant, fast-mounting cable routing in commercial and institutional environments. This two-piece latching Pan-Way LD channel handles low-voltage and power applications up to 600V, with a 1.52" × 0.86" (39mm × 22mm) cross-section that accommodates bundled data, voice, and power cables along perimeter walls, baseboards, or ceiling transitions. Factory-applied adhesive backing and pre-punched mounting holes eliminate layout guesswork and cut installation time on drywall, painted block, or finished surfaces where concealed conduit isn't feasible.

Key Features

• UL5A Listed power-rated raceway supports applications up to 600V — compliant for combined low-voltage data and line-voltage power in a single channel
• Two-piece hinged latching cover allows lay-in cable placement and tool-free access for adds/moves/changes without dismounting the base
• Factory-applied adhesive backing bonds to smooth surfaces (drywall, paint, laminate) — supplemented by pre-punched screw holes for mechanical fastening on uneven or high-traffic surfaces
• 1.52" W × 0.86" H (39mm × 22mm) internal cavity holds multiple Cat6A, fiber, coax, or 18–12 AWG power cables with bend-radius clearance
• White PVC construction matches standard wall finishes in schools, hospitals, offices, and conference rooms — paintable for custom color-matching
• UL94V-0 flame rating and FT4 compliance meet fire-stop and plenum-adjacent installation codes in commercial occupancies
• Terminates directly into Panduit Mini-Com surface-mount outlet boxes or LDPH-series fittings (elbows, tees, end caps) for professional-grade raceway systems
• 10-foot stick length minimizes mid-run splices on typical wall spans — 200-piece carton packing supports multi-floor or campus-wide deployments

Installation Mechanics: The LDPH10WH10-A's two-piece design separates base installation from cable loading. Installers snap the base to the wall using the factory adhesive for immediate tack, then drive screws through pre-punched 16" on-center holes for structural hold. Cables lay into the open base channel without threading, and the hinged cover snaps shut with audible latching — no clips, no fasteners, no channel deformation from over-torqued covers. This speeds retrofit jobs in occupied spaces (classrooms during breaks, patient floors after hours) where minimizing tool noise and drywall dust matters. The tamper-resistant latch requires deliberate lift pressure to open, deterring casual cover removal in public areas while remaining accessible to maintenance staff with a flathead driver.

Power + Data Convergence: Unlike basic cable duct rated only for low-voltage, the LDPH10WH10-A's UL5A listing authorizes installers to run 120V branch circuits alongside Cat6A data and coax in the same raceway — critical for conference rooms needing table-mount power taps, nurse-call stations combining 24VDC and PoE, or retail checkout lanes bundling Ethernet and 110V outlet drops. The 600V rating provides margin above typical 277V commercial lighting circuits, ensuring code compliance in industrial facilities or lab environments where higher-voltage instrumentation coexists with IP camera or access-control wiring. This convergence eliminates parallel conduit runs and reduces wall penetrations in fire-rated or moisture-barrier assemblies.

System Integration: Pan-Way LD raceway terminates cleanly into Panduit's Mini-Com modular jack system — installers mount Mini-Com surface boxes at endpoints, snap RJ45, coax, or fiber inserts into the faceplates, and land the raceway directly into knockout slots on the box sides. This maintains the manufacturer's raceway-to-outlet continuity without exposed cable tails or jury-rigged box adapters. Internal elbows (LDPH5 series) turn corners without cable kinking, and tee fittings branch laterally for multi-drop layouts in open-plan offices or classroom rows. The white PVC accepts acrylic paint if facility standards require match to branded color schemes, and the non-metallic construction avoids galvanic concerns in coastal or chemical-exposure environments where steel EMT corrodes.

Standards Compliance: UL5A Listed for power and communication circuits, UL94V-0 flame-rated, FT4 vertical flame-test compliant, and conformant to TIA/EIA structured cabling standards — this raceway meets commercial building codes, California Title 24 fire-safety requirements, and NFPA 70 (NEC) Article 800/820/830 low-voltage installation rules. The 10-foot sticks ship in 200-piece cartons (2,000 linear feet per carton), supporting large-scale rollouts with consistent lot traceability for inspection documentation and warranty claims.
