QNAP 24-BAY 2U All-flash NAS NVME - TDS-H2489FU-R2-4314-128G-US

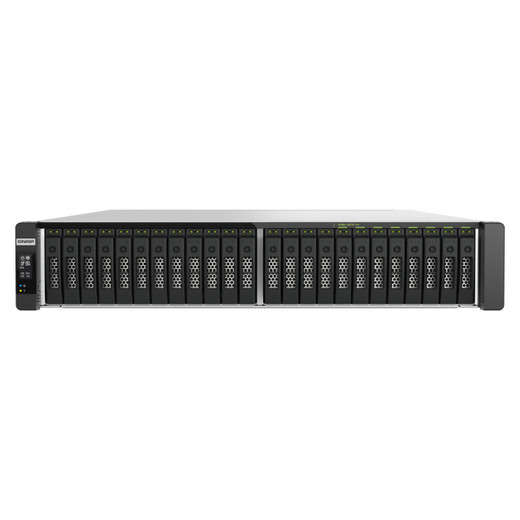

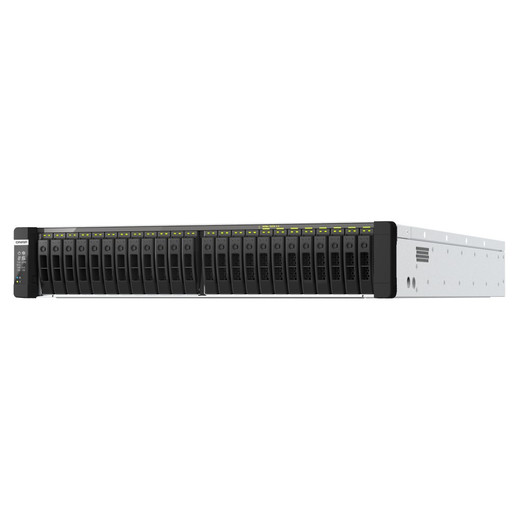

QNAP TDS-H2489FU-R2-4314-128G-US 24-Bay U.2 NVMe All-Flash 2U Rackmount NAS

Overview

The TDS-H2489FU-R2-4314-128G-US is QNAP's flagship 2U rackmount NAS built entirely around U.2 NVMe Gen 4 x4 flash storage — 24 bays with no spinning-disk compromise. Powered by dual Intel Xeon Silver 4300 series processors delivering 16 cores and 32 threads, this system is engineered for workloads where latency and throughput matter: high-density video surveillance recording, AI-driven analytics pipelines, and enterprise file services that cannot afford the I/O ceiling of traditional hybrid or SAS-based arrays. If you are designing a network attached storage backbone for a multi-camera surveillance infrastructure or a compute-adjacent storage tier, this is where that conversation starts. The TDS-H2489FU-R2-4314-128G-US (often searched as TDS H2489FU R2 4314 128G US) ships configured with 128GB of DDR4 ECC RDIMM memory across its 32 available slots, leaving substantial headroom for workload growth.

Key Features

• 24 x U.2 NVMe Gen 4 x4 Bays: Every bay speaks NVMe Gen 4 natively — no HBA translation layer, no SAS expander bottleneck. Gen 4 x4 per slot means each drive has up to ~7 GB/s theoretical bandwidth available. In a surveillance context, that translates to simultaneous high-bitrate ingestion from dozens of camera streams with headroom left for concurrent playback and export without I/O contention.
• Dual Intel Xeon Silver 4300 Series (16 Cores / 32 Threads): Two sockets with 16/32-core configurations give this NAS genuine server-class CPU resources. On-box analytics, transcoding, or container workloads running alongside storage duties won't starve the I/O path — something single-socket NAS platforms routinely struggle with under concurrent read/write load.
• 128GB DDR4 ECC RDIMM (Expandable to 1TB across 32 Slots): The system ships with 128GB installed across 32 RDIMM slots (16 per socket). ECC correction is non-negotiable on a platform storing surveillance evidence or financial data — bit-flip errors that would silently corrupt data on consumer memory are detected and corrected. The 1TB ceiling means you can scale memory as workloads expand without replacing the platform.
• 5GB Flash for Dual-Boot OS Protection: Dedicated 5GB flash hosts dual OS boot redundancy. If the primary OS image is corrupted — power fault, failed update — the system falls back to the secondary image automatically, keeping the storage array accessible without a service call or manual intervention.
• 4 x 2.5GbE + 2 x 25GbE Network Ports: The six onboard ports give you real flexibility. Bond the four 2.5GbE ports for a 10Gbps aggregate management and camera-ingestion path, and reserve the two 25GbE ports for uplink to a core switch or direct connection to a compute node. In a network switch environment with 25GbE infrastructure already deployed, the 25GbE ports eliminate the bandwidth bottleneck that 10GbE-limited NAS platforms create at scale.
• 4 x PCIe Gen 4 Expansion Slots: Four full PCIe Gen 4 slots let you add 100GbE NICs, additional NVMe controllers, FC HBAs, or GPU accelerators without hitting a bus-width ceiling. Gen 4 doubles the per-lane bandwidth of Gen 3 — relevant when you are adding high-throughput cards rather than light management adapters.
• 32 x RDIMM DDR4 ECC Memory Slots: The dual-socket architecture distributes 16 DIMM slots per CPU, which matters for NUMA-aware applications. Workloads that pin to a NUMA node get their memory bandwidth without crossing the inter-socket interconnect — meaningful for latency-sensitive storage protocols and in-memory analytics.

Integration and Compatibility

The TDS-H2489FU-R2-4314-128G-US runs QNAP's QTS Hero operating system, which presents the NVMe array as a ZFS-based or traditional volume depending on your configuration. The four PCIe Gen 4 slots support standard add-in cards, enabling integration with Fibre Channel SANs, additional Ethernet fabrics, or RDMA-capable NICs for low-latency storage protocols. With 25GbE onboard, direct attachment to compute nodes running iSCSI or NFS is viable without an additional switch tier. For surveillance deployments, the platform is compatible with QNAP's Surveillance Station VMS as well as third-party VMS platforms via standard NFS/SMB/iSCSI targets — check your video management software vendor's storage compatibility matrix for certified configurations. The dual-CPU design also supports virtualization workloads via the built-in virtualization station, allowing the NAS to host lightweight VMs alongside primary storage duties. Explore the full QNAP NAS and storage line for companion expansion enclosures and accessories that extend raw capacity without replacing the head unit.

Frequently Asked Questions

Q: What drive interface does the TDS-H2489FU-R2-4314-128G-US use, and are SATA or SAS drives compatible?

A: All 24 bays are U.2 NVMe Gen 4 x4 only. SATA and SAS drives are not compatible with this platform — it is a purpose-built all-flash NVMe array. You will need U.2 NVMe Gen 4 SSDs for all bays.

Q: How much memory does the TDS-H2489FU-R2-4314-128G-US ship with, and what is the maximum?

A: It ships with 128GB of DDR4 ECC RDIMM memory. The platform supports up to 1TB of RAM across 32 RDIMM slots (16 slots per CPU socket), using 32GB DIMMs at full population.

Q: Does the TDS-H2489FU-R2-4314-128G-US support 10GbE or 25GbE connectivity?

A: Yes — onboard networking includes 4 x 2.5GbE and 2 x 25GbE ports. There is no native 10GbE port, but the four 2.5GbE ports can be bonded for aggregate throughput, and the PCIe Gen 4 expansion slots accept 10GbE or higher add-in NICs.

Q: How many PCIe expansion slots are available, and what generation are they?

A: The TDS-H2489FU-R2-4314-128G-US provides 4 x PCIe Gen 4 slots. Gen 4 doubles the per-lane bandwidth versus Gen 3, supporting high-throughput NICs, additional storage controllers, or accelerator cards.

Q: What processors power the TDS-H2489FU-R2-4314-128G-US?

A: Dual Intel Xeon Silver 4300 series processors, configured in 16-core / 32-thread arrangements. This is a two-socket design — both CPUs are active simultaneously, providing server-class compute for storage, analytics, and virtualization workloads.

Q: Is the TDS-H2489FU-R2-4314-128G-US suitable for running a VMS directly on the NAS alongside recording?

A: The dual Xeon Silver platform with up to 1TB RAM and 4 PCIe Gen 4 slots provides sufficient compute and I/O resources to host virtualized or containerized VMS workloads alongside high-density NVMe recording. Validate your specific VMS vendor's resource requirements and storage compatibility before committing to a converged deployment model.

Karl Wilson

The TDS-H2489FU-R2-4314-128G-US is one of the few NAS platforms I'd recommend for a serious converged surveillance-plus-analytics deployment without qualification. The 24-bay U.2 NVMe Gen 4 x4 architecture is the key differentiator — you are not adapting a SAS or SATA platform with an NVMe cache tier, you are running all-flash end to end, which fundamentally changes what the system can do under concurrent write and read load from high-camera-count recording environments.

Technical Highlights:

• Dual Xeon Silver 4300 / 32 Threads: Two active CPU sockets with 16 cores each means the system can handle storage I/O, containerized VMS processing, and analytics simultaneously without the single-socket contention that kills throughput on lighter NAS platforms under real-world multi-tenant load.
• 32 x RDIMM DDR4 ECC Slots (128GB installed / 1TB max): Shipping at 128GB with a 1TB ceiling is the right balance for a platform you expect to grow into — you are not buying maximum RAM on day one for workloads you don't yet have, but the headroom is genuine and the ECC correction protects the ZFS metadata integrity that the whole array depends on.
• 4 x PCIe Gen 4 Expansion + 25GbE Onboard: The combination of two 25GbE ports and four Gen 4 PCIe slots means you can deploy this today on a 25GbE fabric and add 100GbE or RDMA capability later without a platform change — the bus bandwidth is there to support it.

Deployment Considerations:

• All 24 bays require U.2 NVMe Gen 4 SSDs — budget accordingly before the first drive order. U.2 Gen 4 pricing is meaningfully higher than SATA SSD at scale, and this platform gives you no hybrid fallback lane.
• The dual-socket design means NUMA topology matters for performance-sensitive applications: VMS containers or analytics workloads should be pinned to a single NUMA node where possible, or you will see latency spikes as memory requests cross the inter-socket interconnect under peak load.

For a large-venue physical security deployment — airport terminals, casino floors, or multi-building enterprise campuses — where the recording tier needs to sustain high-bitrate ingestion from 100+ cameras while simultaneously serving forensic playback and feeding an on-premises AI analytics engine, the TDS-H2489FU-R2-4314-128G-US is one of the few purpose-built NAS platforms that can handle all three concurrently without architectural compromise.
