QNAP 24-BAY 2U All-flash NAS NVME - TDS-H2489FU-R2-4309Y-64G-US

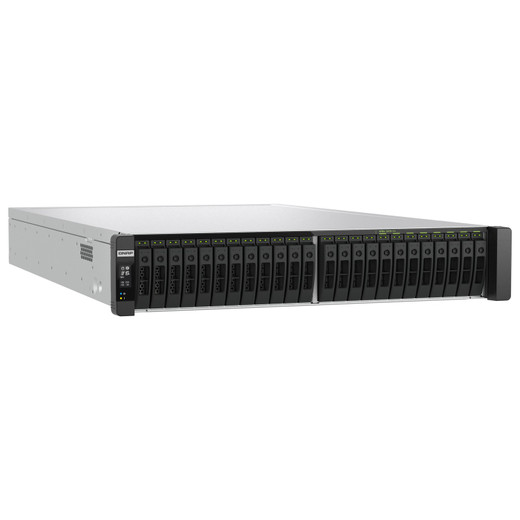

QNAP TDS-H2489FU-R2-4309Y-64G-US 24-Bay U.2 NVMe All-Flash Rackmount NAS

Overview

The TDS-H2489FU-R2-4309Y-64G-US is QNAP's flagship 2U rackmount NAS built entirely around U.2 NVMe Gen 4 flash storage — no spinning disks, no SAS hybrid compromise. Dual Intel® Xeon® Silver 4309Y processors deliver 16 cores / 32 threads, giving this platform enough compute headroom to run storage services, containerized workloads, and network virtualization simultaneously without CPU contention. If your environment demands sub-millisecond latency across 24 drives and you've outgrown SATA/SAS-based NAS, this is the platform to evaluate. Browse the full QNAP storage catalog to compare models in the same family.

Key Features

• 24 x U.2 NVMe Gen 4 x4 Drive Bays: All 24 bays run PCIe Gen 4 NVMe directly — not repurposed SATA lanes with an adapter. Gen 4 x4 per drive means each bay can sustain sequential throughput that saturates the 25GbE uplinks, making this viable for high-density video ingest, AI/ML dataset serving, or financial transaction logs where queue depth and IOPS consistency matter more than peak capacity.
• Dual Intel® Xeon® Silver 4309Y (16 cores / 32 threads): The dual-socket configuration means NUMA-aware workloads get dedicated resources per socket. Running concurrent snapshots, deduplication, and container applications on a single-socket NAS typically serializes under load; two Xeon Silver CPUs prevent that. The 4309Y specifically is an 8-core Xeon Silver, so dual-socket = 16 physical cores / 32 logical threads total.
• Up to 1 TB DDR4 ECC RDIMM (32 slots, 16 per socket): With 32 RDIMM slots — 16 per CPU socket — you can populate this system to 1 TB of RAM using 32 x 32 GB modules. For in-memory caching of NVMe datasets or running memory-hungry VMs alongside storage services, that ceiling is genuinely rare at this price tier. ECC protection means a single-bit memory error won't corrupt data silently during a 24/7 workload.
• 5 GB Flash for Dual-Boot OS Protection: The onboard 5 GB flash is dedicated to dual-boot OS redundancy. If one QTS/QuTS Hero OS image becomes corrupted — firmware update gone wrong, power loss mid-write — the system can recover from the second image without manual intervention. This is a meaningful operational safeguard for remote deployments where hands-on recovery is expensive.
• 4 x 2.5GbE + 2 x 25GbE Network Ports: The 25GbE ports are where the real throughput lives for high-speed clients and backup replication — two 25GbE uplinks give you 50 Gbps aggregate before bonding. The four 2.5GbE ports handle management traffic, iSCSI initiators, or slower clients without contending for the 25GbE bandwidth. Plan your switch accordingly: you'll want at least two 25GbE ports free on your core switch. See our network switches category for compatible 25GbE switching options.
• 4 x PCIe Gen 4 Expansion Slots: Four open PCIe Gen 4 slots let you add HBAs for additional storage enclosures, 100GbE NICs for spine connectivity, or GPU cards for on-appliance AI inference. Gen 4 bandwidth means a dual-port 100GbE card won't be slot-limited. This extensibility is the reason the TDS-H2489FU-R2-4309Y-64G-US fits multi-phase deployments: commission it as pure storage today, add compute-offload cards later.

Integration & Compatibility

The TDS-H2489FU-R2-4309Y-64G-US runs QNAP's QuTS Hero operating system, which uses the ZFS file system for native inline deduplication, compression, and block-level snapshots — capabilities that matter for storage consolidation projects where you're hosting multiple teams' datasets on a single array. The four PCIe Gen 4 slots support QNAP QXG series 25GbE/100GbE network expansion cards and QNAP JBOD expansion enclosures via QXP host bus adapter cards, allowing raw capacity expansion beyond the onboard 24 bays. For NVR and video surveillance deployments, the combination of NVMe IOPS, 25GbE connectivity, and ZFS snapshot consistency makes this platform viable as a primary recording and retention array behind high-channel-count VMS platforms. The PCIe slots also support Fibre Channel HBAs for SAN environments requiring FC connectivity. Review our NAS storage category for compatible expansion enclosures and accessories.

Frequently Asked Questions

Q: What is the maximum storage capacity of the TDS-H2489FU-R2-4309Y-64G-US?

A: The system ships with 24 U.2 NVMe Gen 4 x4 bays. Maximum raw capacity depends on the U.2 NVMe drives you populate; QNAP's compatibility list specifies supported drive models and maximum per-drive capacities. Additional raw capacity can be added via QNAP JBOD expansion enclosures connected through the PCIe expansion slots.

Q: Does the TDS-H2489FU-R2-4309Y-64G-US support ECC memory?

A: Yes. All 32 DIMM slots (16 per CPU socket) require RDIMM DDR4 ECC modules. ECC is not optional — the platform is designed around registered ECC memory for data integrity, which is standard for Xeon-based server platforms.

Q: How many network ports does the TDS-H2489FU-R2-4309Y-64G-US have, and can I add more?

A: The unit ships with 4 x 2.5GbE and 2 x 25GbE onboard ports. The four PCIe Gen 4 expansion slots support QNAP QXG series network expansion cards, so you can add 25GbE or 100GbE ports depending on your switching infrastructure.

Q: What operating system does this NAS run?

A: The TDS-H2489FU-R2-4309Y-64G-US runs QNAP QuTS Hero, a ZFS-based NAS operating system. The 5 GB onboard flash provides dual-boot OS protection so the system can recover from a corrupted OS image automatically.

Q: Is this system suitable for running virtual machines alongside storage workloads?

A: The dual Xeon Silver 4309Y processors (16 cores / 32 threads) and up to 1 TB DDR4 ECC RAM give the platform enough headroom to run VMs concurrently with storage services. QNAP Virtualization Station is supported on QuTS Hero platforms; actual VM density depends on drive IOPS allocation and RAM provisioning per VM.

Q: What is the drive interface on the TDS-H2489FU-R2-4309Y-64G-US?

A: All 24 bays are U.2 NVMe Gen 4 x4 — not SATA or SAS. This is a pure NVMe all-flash platform. Standard 2.5-inch SATA SSDs or HDDs are not compatible with the U.2 NVMe bays.

James Everett

When I look at the TDS-H2489FU-R2-4309Y-64G-US, the spec that immediately frames the deployment decision is the U.2 NVMe Gen 4 x4 interface across all 24 bays — this isn't a tiered hybrid array that routes some traffic to NVMe and the rest to SATA cache. Every single bay is Gen 4 NVMe, which means your RAID group's consistent IOPS floor is dramatically higher than anything built on a SATA or SAS backplane at this bay count.

Technical Highlights:

• Dual Xeon Silver 4309Y (16 cores / 32 threads): The dual-socket design avoids the CPU bottleneck that plagues single-socket NAS platforms under concurrent deduplication + snapshot + VM workloads. With 16 physical cores, you have genuine parallelism for ZFS inline compression and dedup without starving storage I/O threads.
• 32 x RDIMM DDR4 ECC slots (up to 1 TB RAM): Sixteen slots per socket means balanced NUMA memory topology — important if you're running memory-pinned VMs or in-memory caching pools. The 1 TB ceiling is not marketing headroom; at 32 GB per DIMM, it's fully achievable and relevant for large ZFS ARC cache configurations.
• 4 x PCIe Gen 4 expansion slots: Gen 4 bandwidth here is the unlock for 100GbE connectivity without slot-speed penalty. A dual-port 100GbE card in a Gen 4 x8 slot won't be bandwidth-limited by the slot — which matters when you're aggregating NVMe throughput from 24 drives to a spine switch.

Deployment Considerations:

• The 25GbE onboard ports are your practical bottleneck before any PCIe expansion. Two 25GbE ports = 50 Gbps aggregate — adequate for many workloads, but if you're targeting full-array sequential throughput from 24 NVMe Gen 4 drives, plan to add a 100GbE PCIe NIC on day one and ensure your switch has the ports available.
• All 24 bays require U.2 NVMe drives specifically — not M.2, not 2.5-inch SATA. U.2 NVMe enterprise SSDs run at a significant cost premium over SATA SSDs; budget per-drive costs carefully before quoting total system cost to stakeholders.

The TDS-H2489FU-R2-4309Y-64G-US is the right call for media production facilities running high-channel 4K/8K ingest, financial services environments demanding consistent sub-millisecond storage latency, or research institutions consolidating large-scale AI training datasets onto a single addressable ZFS array — any deployment where NVMe IOPS consistency, not just peak throughput, is the governing requirement.
