QNAP 16-BAY Active-active Dual - ES1686DC-R2-2142IT-128G-US

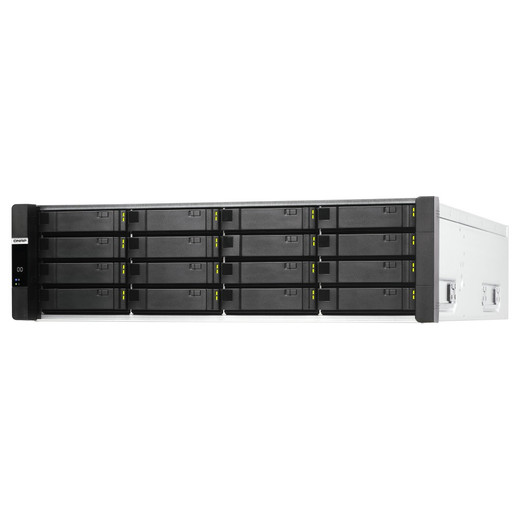

QNAP ES1686DC-R2-2142IT-128G-US 16-Bay Dual-Controller Enterprise SAS NAS

The QNAP ES1686DC-R2-2142IT-128G-US is a 16-bay active-active dual-controller enterprise NAS built for environments where storage availability is non-negotiable — think large-scale surveillance archives, broadcast media repositories, and financial data workloads where a single controller failure cannot mean downtime. With two independent Intel Xeon D controllers running simultaneously, this unit handles failover at the controller level, not just the drive level. If you're evaluating this against single-controller NAS systems, that architectural difference is the core reason to look here first.

When This Is the Correct Choice

Deploy the ES1686DC-R2-2142IT-128G-US when your environment demands storage that survives controller-level failures transparently. Multi-site surveillance installations recording hundreds of camera streams 24/7, media production houses managing large unstructured datasets, or enterprise IT teams needing tiered SAN/NAS consolidation are the primary fits. The dual-controller active-active design means both controllers process I/O simultaneously — you're not paying for a standby unit that sits idle.

When to Choose a Different Model

If your environment is a smaller deployment — say, under 50 cameras or a single department file server — the dual-controller architecture here is more than you need and the cost premium won't pay off. Consider a single-controller model in the QNAP ES or TS enterprise line if controller-level redundancy isn't a hard requirement. Similarly, if you need higher raw bay counts (24+ bays), look at larger QNAP enterprise storage models in the same ES family.

Key Features

• Active-Active Dual Controllers: Two independent controllers share the I/O load simultaneously — ES1686DC R2 2142IT 128G US means neither controller is a warm spare collecting dust. If one fails, the surviving controller continues without interruption, which is the difference between a planned maintenance window and an unplanned outage on a live surveillance archive.
• Intel Xeon D Processor up to 3.0 GHz: The Xeon D platform is built for embedded, high-efficiency compute at server-class reliability. At up to 3.0 GHz, it handles the parity calculations, encryption, and concurrent stream processing that come with dense 16-bay configurations without throttling under sustained write loads.
• 64 GB RDIMM DDR4 ECC per Controller (1024 GB Max): Each controller ships with 64 GB of registered ECC memory — error-correcting RAM that catches single-bit memory errors before they corrupt data. The 16 DIMM slots per controller support up to 1024 GB, giving you room to grow caching tiers as datasets expand. For high-concurrency workloads like simultaneous multi-stream surveillance playback, more RAM directly reduces latency.
• SAS 12Gb/s Drive Interface: SAS 12Gb/s supports both SAS HDDs and SSDs, delivering roughly double the per-drive bandwidth of SATA 6Gb/s. More importantly, SAS drives are dual-ported — each drive has two independent data paths, so a cable or backplane failure doesn't take a drive offline. That dual-path reliability pairs logically with the dual-controller design.
• 4x 10GbE Network Interfaces: Four 10GbE ports provide 40 Gbps of aggregate network bandwidth when bonded — enough to saturate the SAS backplane with concurrent read workloads from multiple hosts. In a multi-server surveillance environment, this means multiple NVR servers or VMS hosts can pull from the same storage simultaneously without queuing.
• 2x PCIe Gen 3 Expansion Slots: Two PCIe Gen 3 slots per unit allow expansion beyond the base 4x 10GbE — add 25GbE or Fibre Channel HBAs to integrate into existing SAN fabrics or to push bandwidth further for ultra-high-density video archives. This is where you future-proof the connectivity without replacing the whole unit.
• 16-Bay Drive Capacity: Sixteen drive bays with SAS 12Gb/s support provides the raw bay count to build large RAID-6 or RAID-60 arrays with multiple hot spares — important for archival surveillance storage where rebuild times on high-capacity drives can span days and a second drive failure during rebuild is a real operational risk.

Integration and Compatibility

The ES1686DC-R2-2142IT-128G-US integrates with QNAP's QES (QNAP Enterprise Storage) operating system, which supports iSCSI, Fibre Channel, NFS, SMB/CIFS, and AFP — covering the protocol range needed for mixed VMware, Windows, and Linux host environments. The 10GbE ports support jumbo frames for iSCSI optimization. The PCIe Gen 3 slots allow adding Fibre Channel HBAs for direct SAN integration alongside existing storage fabrics. For surveillance specifically, QES supports direct integration with major VMS platforms via iSCSI LUNs, making this a viable centralized storage target for multi-server Milestone, Genetec, or similar deployments.

Frequently Asked Questions

Q: What does active-active dual-controller mean in practice for the ES1686DC-R2-2142IT-128G-US?

A: Both controllers process read and write I/O simultaneously — there is no passive standby. If one controller fails, the other continues handling all I/O without requiring a manual failover or reboot. This provides both redundancy and performance, since the load is distributed across two independent processing units during normal operation.

Q: How much memory can the ES1686DC-R2-2142IT-128G-US support?

A: Each controller ships with 64 GB of RDIMM DDR4 ECC RAM and supports up to 1024 GB (16 x 64 GB) per controller. With two controllers, the system has a combined maximum of 2048 GB of ECC memory across both controllers.

Q: What drive types are compatible with the ES1686DC-R2-2142IT-128G-US?

A: The unit supports SAS 12Gb/s hard drives and SSDs across its 16 bays. SAS drives provide dual-port redundancy at the drive level, complementing the dual-controller architecture. SATA drives are not confirmed as supported based on available evidence — verify with QNAP's compatibility list for your specific drive models.

Q: Can the ES1686DC-R2-2142IT-128G-US be used as a centralized storage target for surveillance VMS systems?

A: Yes. The system supports iSCSI and other block/file protocols via QNAP's QES operating system, making it suitable as a centralized storage target for VMS platforms. Multiple NVR or VMS servers can connect simultaneously over the 4x 10GbE interfaces.

Q: What expansion options are available on the ES1686DC-R2-2142IT-128G-US?

A: Two PCIe Gen 3 slots are available per unit for adding network interface cards such as 25GbE or Fibre Channel HBAs, enabling integration with existing SAN fabrics or higher-bandwidth network connectivity beyond the base 4x 10GbE.

Q: What is the maximum usable storage capacity of the ES1686DC-R2-2142IT-128G-US?

A: The 16 SAS 12Gb/s bays support high-capacity SAS drives. Maximum raw capacity depends on the drive models installed; QNAP's compatibility list specifies supported drive capacities. The 16-bay configuration supports RAID-6 or RAID-60 arrays with hot spares for production-grade data protection.

Jerry Tildsen

The ES1686DC-R2-2142IT-128G-US sits in a narrow product category where the storage architecture itself is the primary spec — the active-active dual-controller design with 64 GB RDIMM DDR4 ECC per controller is the reason you're here, not the drive bay count. I've seen integrators spec this unit specifically because the SAS 12Gb/s dual-port drive interface and dual-controller redundancy stack together: you get redundancy at the controller, the data path, and the drive simultaneously, which is qualitatively different from a single-controller NAS with a hot spare pool.

Technical Highlights:

• Dual-Controller Active-Active Architecture: Both Intel Xeon D controllers handle live I/O simultaneously at up to 3.0 GHz — this is not a failover cluster with a passive node; both units work, and both fail independently. A controller maintenance window doesn't require a storage blackout.
• 1024 GB Max RAM per Controller: The 16 DIMM slots per controller allow scaling the read cache and metadata working set as dataset sizes grow. Starting at 64 GB ECC per controller, you have significant headroom before memory becomes a bottleneck on concurrent stream workloads.
• 4x 10GbE + 2x PCIe Gen 3: The base 40 Gbps aggregate network bandwidth covers most multi-server surveillance deployments, and the PCIe Gen 3 slots let you add 25GbE or Fibre Channel without replacing the chassis — a meaningful long-term cost consideration on a unit at this price tier.

Deployment Considerations:

• Plan your RAID strategy before populating all 16 bays — RAID-6 on 16 SAS drives at high capacity means rebuild windows measured in days on a failure; size your hot spare pool accordingly and consider RAID-60 if the workload can absorb the capacity trade-off.
• The PCIe Gen 3 slots are the connectivity expansion path, but verify QES driver support for your specific HBA or NIC model before purchasing — not all third-party cards are validated on the QES platform.

This unit makes the most sense as centralized iSCSI or NAS storage for large-scale video surveillance deployments running 100+ cameras with long retention requirements, or for mixed-use enterprise environments where storage must survive controller-level failures without manual intervention.
