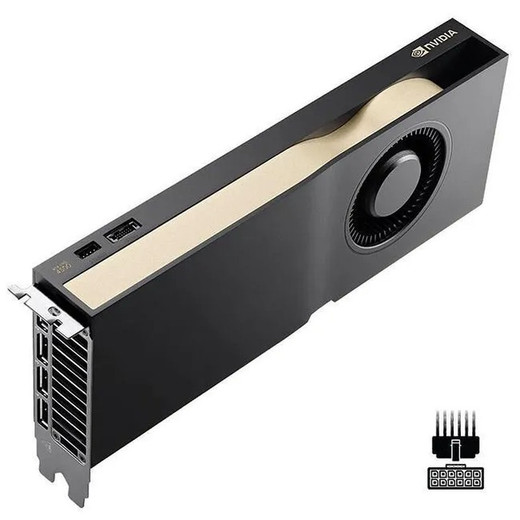

PNY VCNRTXPRO4500BSYNC-PB RTX PRO 4500 Blackwell GPU with Sync Card
Overview
The PNY VCNRTXPRO4500BSYNC-PB is an NVIDIA RTX PRO 4500 Blackwell-architecture GPU paired with an RTX PRO Sync Card — a workstation-class accelerator built for AI inference, rendering farms, and real-time analytics pipelines where synchronized compute across multiple GPUs is critical. This is not a consumer gaming card; it's engineered for data centers and professional installations requiring deterministic latency and frame-locked output.
The core Blackwell architecture delivers the latest generation NVIDIA streaming multiprocessor performance, making it suitable for surveillance analytics workloads that demand fast inference on multiple concurrent video streams. The VCNRTXPRO4500BSYNC-PB draws 450W via a single 16-pin 12VHPWR connector — a specification that directly affects your power budget, cooling infrastructure, and PSU headroom in any deployment.
Key Features
- Blackwell Streaming Multiprocessor Architecture: The latest NVIDIA compute generation enables faster tensor operations per watt than prior RTX PRO generations — directly reduces inference latency when processing video streams through YOLO, ResNet, or custom models deployed via TensorRT or CUDA.
- RTX PRO Sync Card Included: Frame-lock synchronization across multiple GPUs eliminates genlock drift in multi-GPU render or inference clusters — essential if you're driving synchronized display walls or require bit-exact deterministic output across a rendering pipeline.
- 450W Power Consumption via Single 16-pin 12VHPWR: Know your power budget upfront. A 450W GPU requires a robust PSU and careful circuit planning in rack installations. This is not a low-power accessory — allocate accordingly in your facility power distribution.
- Dual-Slot Form Factor: Takes up two adjacent PCIe slots in your server or workstation chassis. Verify your enclosure has sufficient rear exhaust and clearance before ordering — airflow constraints are a common gotcha in dense multi-GPU configurations.
- Active Fan Thermal Solution: Blackwell's thermal density demands active cooling. Ensure your data center or server rack has adequate intake air temperature and exhaust capacity. Passive cooling is not an option with this GPU.
- Professional Driver and Certification Stack: Shipped with NVIDIA RTX PRO drivers (not consumer NVIDIA drivers), enabling certified support in professional applications, VMS platforms, and AI frameworks like CUDA Compute Capability 10.0. Verify your target VMS or analytics platform explicitly supports RTX PRO 4500 Blackwell before deployment.
Integration and Compatibility
The VCNRTXPRO4500BSYNC-PB integrates via standard x16 PCIe slot (PCIe 5.0 capable, backward compatible with PCIe 4.0 and 3.0 slots). Confirm your server or workstation motherboard exposes a full-bandwidth x16 slot — some consumer and mid-range enterprise boards share PCIe lanes, reducing effective throughput.
The Sync Card occupies an additional slot and connects to the GPU via internal header. Ensure your host system's BIOS supports GPU passthrough (if virtualized), resizable BAR, or other advanced PCIe features you plan to use. RTX PRO drivers must be installed on the host OS (Linux, Windows, or virtualized guest, depending on your hypervisor).
Compatibility with specific VMS platforms (Milestone XProtect, Genetec, Axis Camera Station, etc.) depends on whether those platforms expose GPU acceleration APIs to third-party plugins. Verify pre-sales engineering support with your VMS vendor before committing to GPU-accelerated workflows.
Frequently Asked Questions
Q: What's the power delivery specification for the VCNRTXPRO4500BSYNC-PB?
A: The GPU draws 450W nominal via a single 16-pin 12VHPWR connector. Plan PSU capacity with headroom — a 1000W+ server PSU is recommended for single-GPU installations, or higher for multi-GPU configurations. Verify your facility's circuit breaker capacity and UPS runtime before deployment.
Q: Can I use the VCNRTXPRO4500BSYNC-PB in a low-profile chassis?
A: No. The dual-slot form factor and active fan thermal design require a standard or full-height server enclosure with top-to-bottom airflow. Low-profile, mini-ITX, and fanless chassis are not compatible.
Q: What's the difference between the RTX PRO 4500 and consumer RTX 4090?
A: RTX PRO uses Blackwell SM architecture with certified drivers, enterprise support, and enterprise SLA. Consumer cards lack professional driver certification, WHQL validation for workstation applications, and enterprise support channels. For production surveillance or AI inference, RTX PRO is the correct choice.
Q: Does the Sync Card require additional power?
A: The Sync Card is powered through the GPU header — no separate power connector. However, ensure your PSU budget accounts for 450W GPU consumption plus any other cards and compute.
Q: Is the VCNRTXPRO4500BSYNC-PB suitable for real-time multi-stream inference?
A: Yes, if your inference framework (TensorRT, OpenVINO, PyTorch) is optimized for batched inference. Blackwell's tensor cores accelerate batch operations significantly, but you must benchmark your specific models and stream counts to confirm throughput meets your latency SLA. Single-stream inference may not saturate the GPU.
The VCNRTXPRO4500BSYNC-PB is a workstation-class accelerator for facilities building GPU-accelerated analytics clusters. The 450W power spec and dual-slot form factor are non-negotiable constraints — this card demands serious infrastructure investment before the first unit arrives at the data center. The Blackwell architecture delivers real tensor performance gains, but only if your inference models and batch pipelines are already optimized for GPU execution.
Technical Highlights:
- Blackwell Streaming Multiprocessor: Latest-generation NVIDIA SM delivers higher tensor TFLOPS per watt than prior RTX PRO generations — measurably reduces inference latency on batched video frame inference, particularly for dense object detection and segmentation workloads.
- 450W via 16-pin 12VHPWR: Single power connector simplifies wiring but demands a 1000W+ server PSU with available 12V rail capacity. In multi-GPU setups (2–4 cards), PSU planning becomes a critical path item — budget 500W per card plus 200W headroom.
- Frame-Lock Sync Card Included: Eliminates timing drift across multi-GPU rendering or synchronized inference pipelines — essential if your use case requires bit-exact deterministic output or genlock to external timing sources.
Deployment Considerations:
- The dual-slot footprint and active cooling design require top-to-bottom server airflow — mini-ITX and low-profile enclosures are ruled out. Intake air temperature above 35°C will throttle performance.
- Driver support is critical: RTX PRO 4500 Blackwell requires current NVIDIA RTX PRO drivers. Consumer driver branches do not support this card, and driver lag on new architectures can delay production deployments by 4–8 weeks post-launch.
The VCNRTXPRO4500BSYNC-PB is the right choice for multi-camera AI inference clusters in data centers or large facilities where you're deploying 20+ cameras through a centralized GPU compute pool. It's the wrong choice for small retail or branch deployments where a single edge appliance with integrated GPU suffices.
