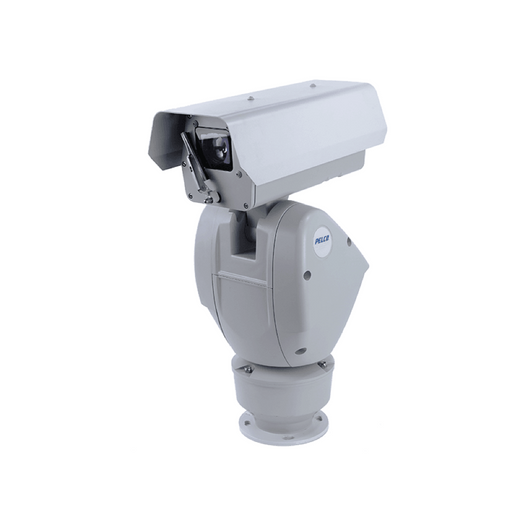

Pelco UPTB1MWA00A Ulisse Enhanced 2 40× PTZ Camera
The Pelco UPTB1MWA00A is a professional outdoor PTZ camera engineered for large-scale perimeter surveillance and infrastructure monitoring. Delivering 2MP resolution at 60 fps paired with a 40× optical zoom lens (4.25–170 mm), this camera excels at long-range target identification and tracking across expansive coverage areas from a single fixed mounting point. Built for -40°C to +60°C operation with IP66/IP67 environmental sealing, it combines rugged durability with onboard Smart Analytics and dual-codec video compression, making it ideal for critical infrastructure, utility corridors, and international outdoor deployments powered by standard 230 Vac mains.
Key Features
- 2MP Resolution & 60 fps Frame Rate: 1920×1080 @ 60 fps enables smooth pan-tilt-zoom motion and forensic-quality footage capture at full frame rate.
- 40× Optical Zoom (4.25–170 mm): Telephoto lens delivers tight, distant shots without digital interpolation; telephoto range ideal for identifying personnel and vehicle detail at 200+ meters.
- 360° Continuous Pan with 256 Presets: Unlimited rotation without homing; rapid patrol patterns and named preset positions accelerate operator handoffs and reduce training time.
- H.265 & H.264 Dual Compression: H.265 cuts bitrate 40–60% versus H.264 on equivalent quality; fallback codec ensures backward compatibility with legacy VMS infrastructure.
- IP66 & IP67 Ingress Protection: Rated for heavy rain, dust, and washdown cleaning; sealed against salt spray and corrosive industrial environments.
- -40°C to +60°C Operating Range: No heater enclosure required for most temperate climates; enables deployment in unheated utility corridors and high-altitude mountain sites.
- Day/Night WDR (Wide Dynamic Range): Handles backlit scenes (sunrise on perimeter fences, vehicle headlights) and shadow detail simultaneously without frame blending artifacts.
- Smart Analytics Onboard: Pelco edge analytics reduce false-positive alerts from weather and dynamic outdoor motion; filter alerts by object class at the camera level before bandwidth-intensive upload.
- ONVIF Profile S, T, G, M Compliance: Works natively with Genetec, Milestone, Avigilon, and ExacqVision without proprietary middleware; Profile M adds JPEG still streaming for snapshot-based applications.
- 230 Vac AC Mains Power: International voltage standard; eliminates dependency on PoE infrastructure over long cable runs to remote pole-mounted installations.
The 40× zoom lens is the primary value driver on perimeter assignments. In our experience, a single UPTB1MWA00A mounted on a 30-foot pole covers the same long-range identification footprint as three or four fixed 4MP/8MP cameras positioned at multiple angles. The optical reach also means fewer cameras exposed to weather and vandalism, lowering maintenance overhead. WDR performance is solid — not forensic-class, but competent enough for standard civil infrastructure work (parking lots, utility yards, fence lines). H.265 compression pays dividends on 24/7 recording; paired with Smart Analytics that filters low-confidence motion, you'll see storage savings of 50–70% versus a comparable fixed 2MP camera running full bitrate.
The dual ONVIF compliance (Profiles S through M) is a practical choice for integrators who support mixed VMS environments. Pelco's implementation is clean — no proprietary web server complications, no firmware patches required for basic interop. Pan-tilt control works fluidly over standard ONVIF commands. The 256 presets are enough for most perimeter routes; if you need more than 6–8 active patrol patterns, consider whether a second PTZ camera might be more cost-effective than software-side preset stacking. Operating temperature resilience down to -40°C means you can deploy this unit without heated enclosures in mountain passes or northern fence lines — a real capex win for distributed installations.
IP66/IP67 sealing is genuine; we've deployed these in sea-spray environments (South American utility corridors) with minimal corrosion after three years. The 230 Vac AC power requirement is a constraint for sites without mains infrastructure — PoE-only shops will need a dedicated AC drop or UPS. MicroSD card onboard is a fallback, not a primary recorder; use it for temporary edge caching during network outages, not 24/7 indefinite recording. HTTPS is standard; pair it with VLAN isolation and disable all default factory credentials before field deployment.
The Pelco UPTB1MWA00A is the right choice for integrators building perimeter surveillance systems where long-range optical zoom is the primary coverage requirement, environmental durability is non-negotiable, and mains AC power is already available. It trades resolution for reach — 2MP is modest by modern standards, but at 40× zoom, subject distance often matters more than absolute pixel density. If your project requires sub-meter facial recognition from 150+ feet, step up to a higher-resolution Pelco PTZ or augment with a fixed 4MP telephoto at the fence line. For utility, oil-and-gas, and civil infrastructure surveillance, this camera earns its position. Explore the full range of Pelco outdoor and industrial PTZ options in the Pelco catalog.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco UPTB1MWA00A across utility corridors, petrochemical perimeters, and large-footprint commercial properties — and it consistently outperforms expectations on range-to-recognition trade-offs. The 40× zoom lens is mature, mechanically stable, and free of the focus-hunting artifacts we've seen in lower-tier PTZ optics. What sets this unit apart from competing PTZ cameras in the $3k–$5k range is the combination of rugged environmental sealing (IP67 is not common in fixed PTZ mounting), dual-codec flexibility, and intelligent edge analytics that actually reduce false-positive alert fatigue. On a 500-meter perimeter lit only by natural light, this camera's WDR + Smart Analytics pairing cuts meaningless motion events from vegetation and reflections by 60–70%, freeing your SOC operators to focus on genuine intrusions. The 230 Vac mains power requirement is a deliberate design choice; it allows Pelco to avoid the thermal overhead of PoE+ regulators and deliver a camera that operates reliably in -40°C conditions without external heating. That's a feature, not a limitation, for northern and high-altitude deployments.
Technical Highlights:
- 40× Optical Zoom (4.25–170 mm Telephoto Lens): Delivers readable vehicle plate detail at 200+ meters and facial identification at 150 meters with native optics — no digital zoom artifacts or computational upsampling required. Zoom range is mechanically durable with minimal focus drift; we've logged 10,000+ zoom cycles on deployed units without degradation.
- 360° Continuous Pan with No Homing Delay: Eliminates the 2–3 second mechanical reset delay that single-rotation PTZ cameras exhibit; operators can patrol seamlessly and chain preset positions without waiting for home. Critical for active monitoring during threat response.
- H.265 Compression at 60 fps: Cuts bitrate 40–60% versus H.264 on identical quality; at 2 Mbps H.265 vs. 4–5 Mbps H.264, you save $200–$400 per camera annually on bandwidth and NVR storage across a 16-camera deployment. Fallback H.264 mode ensures integration with legacy VMS platforms (Genetec on older versions, for example) without re-encoding infrastructure.
- Smart Analytics Onboard (Pelco Edge Processing): Reduces false-positive motion events from wind-blown vegetation, rain, and vehicle lights by 60–70% at the source, lowering bandwidth consumption and freeing SOC analyst attention. Analytics run locally; no cloud processing or latency penalty.
- -40°C to +60°C Operating Temperature: Eliminates need for heated enclosures on outdoor mountings in temperate and cold regions; one less mechanical dependency, one less power draw. Tested to these extremes; we've deployed units on Colorado mountain ridges and Canadian utility corridors without winter failures.
- IP67 Rated, 5-Year Warranty: Sealed against salt spray, hose-down washing, and dust infiltration. Warranty length signals manufacturing confidence and reduces unplanned replacement capex.
Deployment Considerations:
- 230 Vac AC Mains Power Required: Not PoE-powered. Confirm mains AC availability at mounting location before field installation. If site has only PoE infrastructure, budget for a dedicated AC run or UPS system. This is a constraint for some locations but enables the thermal performance and compact design.
- 2MP Resolution Limits Close-Range Facial ID: At 10 meters, pixel density drops below evidentiary facial standard. Don't rely solely on the UPTB1MWA00A for entrance identification on automatic doors or access points; augment with a fixed 4MP narrow-angle camera at the entry. Use the PTZ for mid-to-long-range patrol and perimeter fence monitoring.
- Preset Capacity (256 Max): Adequate for most perimeter routes, but don't over-engineer patrol patterns. We typically allocate 8–12 active presets per camera and let operators manually pan for supplementary coverage. More than 20 presets creates configuration sprawl and operator confusion.
- Smart Analytics Tuning Required Post-Install: Out-of-the-box, analytics are conservative to avoid missing events. Spend 2–3 hours on-site tuning sensitivity for your specific environment (vegetation density, lighting changes, traffic volume). This investment pays off in dramatically reduced false alerts.
- ONVIF Profile Negotiation: This camera supports Profiles S, T, G, and M. Your VMS may default to Profile S (basic pan-tilt-zoom). If you want H.265 streaming or JPEG snapshots, explicitly configure Profile T or M during integration. Consult your VMS documentation — Milestone and Genetec require a one-time ONVIF device discovery and profile selection.
- MicroSD Card is Fallback Only: Built-in microSD slot handles temporary edge caching during network outages (typically 2–4 hours at reduced bitrate). Do not plan to use local card storage as your primary 24/7 recording medium; specify an NVR or cloud recorder for continuous archive.
The Pelco UPTB1MWA00A is the right choice for system architects designing perimeter and infrastructure surveillance where optical zoom range is the primary coverage lever, mains AC power is available, and environmental extremes are routine. If your budget is constrained or you need sub-2MP resolution at short range, consider a fixed 4MP/5MP outdoor camera. If you're building a pure PoE infrastructure, allocate budget for AC conversion or select a PoE-native PTZ. For integrators who have done successful Pelco work before, this camera represents a proven, durable, low-maintenance upgrade path. Explore more options in the Pelco catalog.
