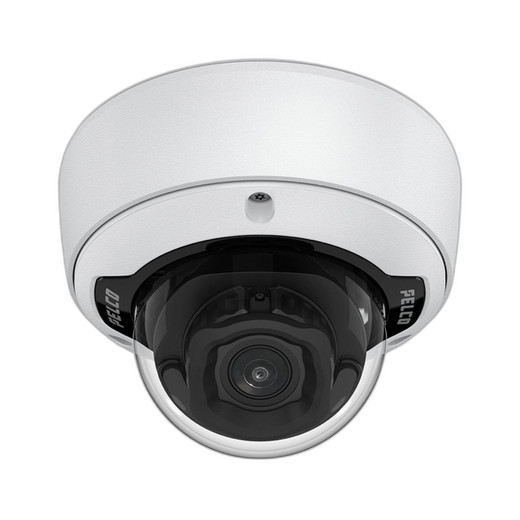

Pelco SRXP4-5V10-EMD Sarix Pro 4 2MP Outdoor Dome

Pelco SRXP4-5V10-EMD Sarix Pro 4 2MP Outdoor Dome Camera

The Pelco SRXP4-5V10-EMD is a professional-grade outdoor dome camera from the Sarix Professional 4 series, engineered for reliable perimeter surveillance and wide-area monitoring. Built on a 1/2.8" progressive scan CMOS sensor, this camera delivers 2MP resolution at 1920 x 1080 with edge-based Smart Analytics for intelligent threat detection and reduced false alarms.

Key Features

• 2MP 1/2.8" CMOS sensor with 60 fps maximum frame rate
• 4.4–9.3 mm motorized varifocal lens with 32–109° horizontal field of view
• 130 dB SureVision wide dynamic range for high-contrast environments
• Smart Analytics: Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection, and Tamper Alert
• H.264, H.265, and Smart Compression video codecs for bandwidth optimization
• Extreme low-light capability: 0.01 lux color, 0.003 lux mono
• PoE Class 3 powered; microSD local storage support
• IK09 vandal rating with IP66/IP67 environmental protection
• HTTPS encryption and ONVIF Profile S/T/G/M compliance
• 5-year warranty

Technical Highlights

The motorized varifocal lens allows precise scene framing and remote zoom adjustment without manual intervention, ideal for large open areas such as parking structures, building perimeters, and access corridors. H.265 Smart Compression significantly reduces bandwidth and storage demands compared to H.264 while maintaining image quality. The 130 dB SureVision WDR ensures clear imagery in mixed lighting conditions—direct sunlight and shadows simultaneously visible.

On-board Smart Analytics enable real-time detection and classification of persons and vehicles with directional analysis, reducing operator workload and enabling rule-based alerts. Tamper detection alerts administrators to cover obstruction or camera repositioning attempts.

Installation & Integration

PoE Class 3 simplifies installation with single-cable power and data delivery. ONVIF multi-profile support ensures compatibility with major VMS platforms. HTTPS encryption secures video streams in networked deployments. Confirm your VMS supports H.265 decoding before deployment.

Applications

Ideal for outdoor perimeter security, parking lot monitoring, building facade coverage, and large open-area surveillance where motorized zoom and edge analytics reduce central processing overhead.

Product Documentation

📄 Download Product Datasheet (PDF)
