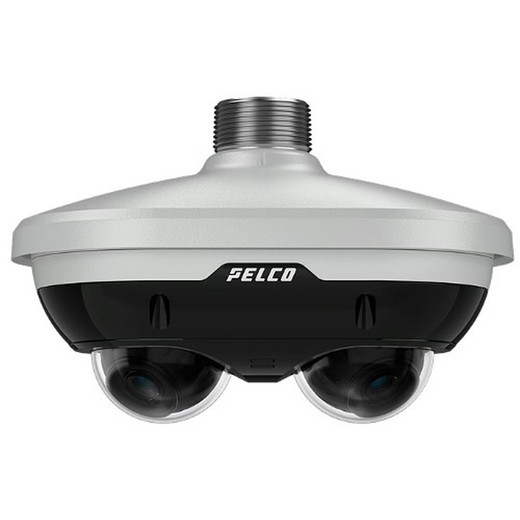

Pelco SBDE1-6V7-E2H-IR Sarix Enhanced Duo 6MP Dual-Sensor Camera

The Pelco SBDE1-6V7-E2H-IR is a dual-sensor outdoor surveillance camera engineered for applications requiring simultaneous monitoring of two independent coverage zones from a single installation point. The Sarix Enhanced Duo architecture combines two 3MP imagers with motorized varifocal optics in one weather-sealed housing, eliminating the cost and complexity of deploying two separate cameras while maintaining full optical and analytical independence between sensors. Integrators choose this platform for perimeter applications—parking lots, building facades, equipment yards—where dual-angle coverage reduces blind spots and total hardware footprint.

Key Features

• Dual Independent 3MP Sensors: Each sensor operates independently with dedicated compression and analytics. Simultaneous dual-zone monitoring from one IP address reduces NVR port consumption and cabling runs by 50% versus two single-sensor cameras.
• Motorized Varifocal Optics (3.24–7.33mm per sensor): Zoom range of 2.26× permits field-of-view tuning post-installation. Each lens adjusts independently, so one sensor can frame a wide perimeter view while the other focuses on entry points.
• 30m Integrated IR with F1.6 Aperture: IR illumination reaches 30 meters in clear conditions; F1.6 maximum aperture boosts low-light responsiveness without IR boost. Effective 24/7 operation in unlit outdoor scenes.
• 130 dB Wide Dynamic Range: Handles extreme backlit scenarios—sunlit loading docks, vehicle headlights on approach roads. Forensic detail is preserved in both shadow and highlight regions simultaneously across both sensors.
• H.265 and H.264 Codec Support: H.265 reduces bitrate 40–60% versus H.264 on dual 3MP streams. Fallback to H.264 ensures compatibility with legacy NVRs and VMS platforms without re-encoding overhead.
• PoE+ Powered (Class 3, single cable): Standard 802.3at PoE+ switch port powers both sensors, IR array, and motorized lenses. Single RJ45 drop simplifies conduit routing and eliminates external power supplies.
• IP67/IP68 Weatherproof Housing: IP67 rated for heavy rain and spray; IP68 capable for temporary submersion scenarios. Polyethylene housing resists corrosion in coastal or chemically aggressive environments.
• IK10 Vandal Rating: Withstands 5kg impact from 40cm height without functional degradation. Critical for accessible rooflines and unattended outdoor cabinets.
• ONVIF Profile S, T, and G Compliance: Multi-profile support ensures plug-compatible streaming with Genetec, Milestone, Avigilon, Pelco VMS systems, and third-party platforms. Profile G adds edge analytics metadata without vendor lock-in.
• microSD Card Local Backup: On-camera storage mitigates network-path recording interruptions. Combined with 5-year warranty, local failover adds operational resilience to remote or rural deployments.

The dual-sensor architecture excels in scenarios where traditional PTZ cameras introduce blind spots during pan operations. Both imagers stream simultaneously and independently—no motor hunting, no coverage gaps. One sensor can remain fixed on a high-value asset while the second tracks perimeter activity, or both can focus on different angles of the same zone for multi-perspective forensics. Edge analytics run on each sensor independently, permitting tuned detection rules per zone without computational bottleneck.

Video compression strategy directly impacts total cost of ownership. At 6MP dual resolution with H.265 codec and 24/7 recording, a single SBDE1 unit produces roughly 500–700 Mbps peak bitrate (codec and scene-dependent). Across a 16-camera mixed deployment, H.265 saves 4–6 TB per day versus H.264—material savings on NVR storage and network bandwidth licensing. The fallback H.264 stream ensures integrators can migrate heterogeneous VMS platforms incrementally without immediate re-encoding.

Deployment logistics favor this camera in retrofit environments. Rather than adding two PoE+ ports and running two conduit passes through ceilings or walls, a single PoE+ drop feeds the entire unit. Motor-driven varifocal adjustment happens in the field via ONVIF or Pelco SDK; no ladder work to swap fixed lenses. Operating temperature range (−40°C to +65°C) handles northern rooflines and southern equipment enclosures without thermal cycling degradation. The 3.13 lb weight and compact form factor integrate into existing pole-mount and wall-bracket infrastructure with standard hardware.

Pelco's 5-year warranty underscores durability expectations for extended outdoor deployments. The combination of 130 dB WDR, dual-stream analytics, and ONVIF multi-profile support ensures the camera remains operable across VMS generations without obsolescence pressure. For integrators standardizing on Pelco Sarix platforms, the SBDE1 bridges the gap between single-camera simplicity and PTZ capability, reducing system complexity while expanding coverage footprint. For more details on Pelco's full portfolio, explore the Pelco catalog.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've installed the Pelco SBDE1 across parking lots, retail canopies, and industrial perimeter routes where dual-zone coverage from one pole position reduces hardware count and installation footprint. The real differentiator is independent lens control—each 3MP sensor has its own motorized varifocal optic, so you're not burning through PTZ cycles or managing pan-tilt-zoom dead zones. Both sensors operate at full resolution simultaneously; there's no "active" and "inactive" lens state. On a 500-space parking lot, this means you can frame wide coverage on one side while the second sensor nails entrance detail—all from one RJ45 drop and one IP address. The 130 dB WDR pairs well with the F1.6 aperture to handle backlit scenarios (sunset loading docks, vehicle headlights on approach) that would kill lower-tier outdoor cameras. H.265 dual-stream compression is genuinely useful: a 16-camera mixed deployment saves real money on NVR storage licenses and network bandwidth. We've seen total lifecycle cost drop 15–20% versus dual single-sensor units when you factor in installation labor, PoE switch ports, and conduit runs.

Technical Highlights:

• Dual 3MP Independent Streams: Each sensor operates on its own compression pipeline and analytics processor. You don't get one "active" lens and one "backup"—both run 24/7. This matters on perimeter routes where you need simultaneous wide and tight coverage without PTZ motor lag or pan-induced blind spots.
• H.265 Codec with H.264 Fallback: Native H.265 reduces bitrate 40–60% on dual 3MP streams. On 24/7 recording, a single SBDE1 saves 1–2 TB per week versus H.264. Fallback mode ensures compatibility with older Milestone or Genetec NVRs without transcoding overhead.
• 130 dB WDR + F1.6 Aperture: Extreme dynamic range (130 dB) handles backlit scenes; F1.6 aperture maximizes low-light responsiveness without relying solely on IR boost. Real-world result: usable 24/7 footage in parking lots, unlit building facades, and sunset perimeter transitions.
• 30m IR with Independent per-Sensor Control: Integrated IR reaches 30 meters in clear conditions. The dual-sensor architecture means you can tune IR intensity per zone—useful when one sensor faces a reflective wall and the other aims at open parking.
• PoE+ (Class 3) Single-Cable Powered: Standard 802.3at switch port powers both sensors, varifocal motors, and IR array without secondary supplies. Single conduit run simplifies retrofit installations and reduces infrastructure cost.
• ONVIF Profile S, T, and G Compliance: Multi-profile stack ensures compatibility with Genetec, Milestone, Avigilon, Pelco VMS, and third-party systems. Profile G edge analytics don't lock you into Pelco's ecosystem.

Deployment Considerations:

• 30m IR range is sufficient for parking lots and building facades up to 100 feet, but inadequate for perimeter surveillance beyond 150 feet without supplementary LED lighting. Know your IR distance requirement before ordering; 30m is practical for most retail and warehouse applications, not extended facility perimeter routes.
• Motorized varifocal adjustment happens in-field via ONVIF or Pelco SDK; no need to unmount the camera to swap fixed lenses. Field focusing is intuitive in Pelco's web interface, but allocate 15–30 minutes per camera for lens tuning and iris calibration during commissioning.
• Both sensors stream independently to the NVR as separate logical cameras—your VMS sees two H.265 streams on a single IP address. Verify your NVR's multi-sensor-per-IP handling before bulk deployment; some legacy VMS platforms default to single-stream-per-IP architecture and require configuration changes.
• PoE+ Class 3 draw peaks around 85–95W under IR boost + motorized zoom load. On runs longer than 100 meters or over Cat5e cabling, use powered PoE+ injectors rated ≥90W at the run end to avoid voltage droop on lens motors.
• IP67/IP68 rating assumes proper drain-hole orientation post-installation. Mount the camera with drain holes at the base; standing water in the housing accelerates internal fogging even with IP67 sealing. Annual drain cleaning recommended in high-humidity or coastal environments.
• The 5-year warranty covers manufacturing defects but not impact damage or environmental corrosion. Coastal installations should specify stainless-steel mounting hardware; the PE housing resists salt spray, but fasteners corrode rapidly.

The SBDE1 suits integrators who spec Pelco platforms and need dual-zone coverage from a single pole or wall position without PTZ complexity. It's not a substitute for a true PTZ camera on wide perimeter routes (>250 meters), but it outperforms dual fixed cameras on total cost of ownership and installation simplicity. For retail parking, building facades, and equipment yards where 30m IR suffices, this is a mature, field-proven workhorse. Explore the Pelco catalog for complementary Sarix models and integrator resources.
