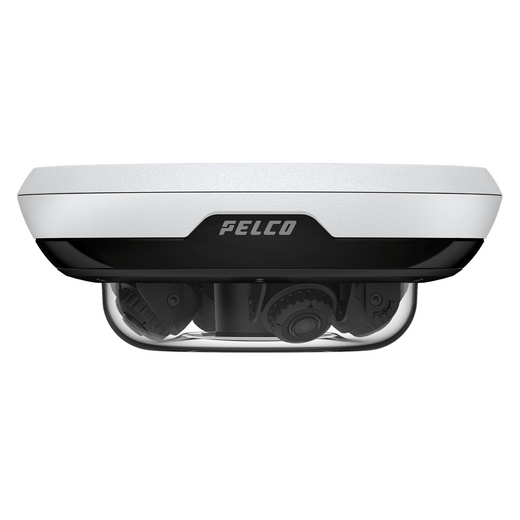

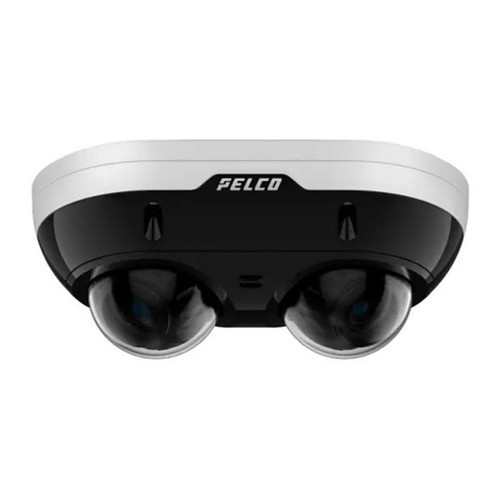

Pelco SBDE1-10V7-E2H-IR Sarix Enhanced Duo 10MP Camera
The Pelco SBDE1-10V7-E2H-IR is a professional dual-sensor outdoor camera that delivers 10MP total resolution (5MP per sensor) from two independent motorized varifocal imagers housed in a single compact unit. This innovative design enables two distinct coverage zones and two separate video streams from a single installation point, significantly reducing deployment costs at intersections, building corners, and complex junction areas.
Key Features
- Dual 5MP independent sensors with motorized varifocal lenses (3.24-7.33mm)
- Two concurrent video streams from single housing and cable drop
- 30m integrated IR for low-light and nighttime surveillance
- 130 dB WDR for challenging high-contrast lighting conditions
- H.265 and H.264 video compression for bandwidth efficiency
- PoE+ powered—single cable deployment
- IP66/IP67/IP68 rated; IK10 vandal-resistant
- Operating range: -40°C to +65°C
- ONVIF Profile S, T, and G compliant
- 5-year manufacturer warranty
Technical Highlights
Each sensor head operates independently with motorized zoom and focus, enabling post-installation adjustment and optimization per coverage zone without field revisits. The dual-stream architecture supports concurrent H.265 and H.264 encoding, allowing flexible bandwidth management and codec selection based on network and storage infrastructure. Superior 130 dB WDR performance handles rapid lighting transitions, direct sunlight, and reflective surfaces—critical for retail, parking, and perimeter surveillance.
The camera's wide ingress protection ratings (IP66/IP67/IP68) ensure reliable operation in rain, snow, washdown environments, and temporary water immersion scenarios. Temperature resilience from -40°C to +65°C accommodates extreme climate zones without performance degradation.
Professional Integration
ONVIF compliance ensures compatibility with third-party VMS platforms and security ecosystems. Confirm your VMS licensing accounts for two concurrent streams from this single device. Total bandwidth planning must reflect dual 5MP streams—ideal for organizations seeking higher per-head resolution than competitive 3MP dual-sensor alternatives. Reduce infrastructure costs: single mount, conduit run, and cable drop deliver two independent surveillance zones.
Ideal Applications
Building corner coverage, T-junction monitoring, retail entrance/exit dual-angle surveillance, parking lot perimeter protection, and critical infrastructure dual-zone oversight.
