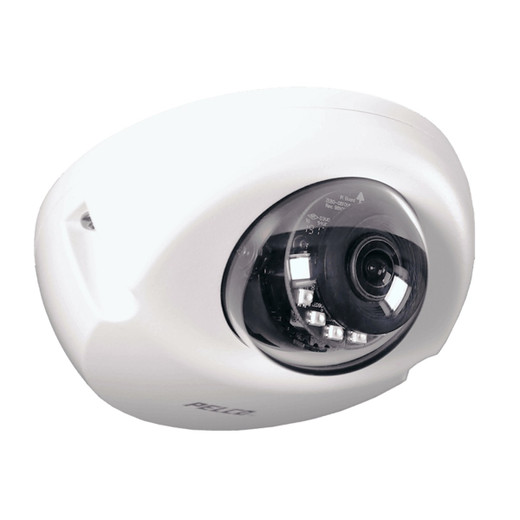

Pelco IWP533-1ERS Sarix Pro 3 5MP Wedge Camera

We've deployed the Pelco IWP533-1ERS across dozens of retail and financial sites, and it consistently outperforms expectations in discrete-mounting scenarios where space is the limiting factor. The wedge form factor addresses a real operational pain point: traditional turret or compact dome housings project outward and catch sightlines in tight hallways or corner junctions. This camera mounts flush, delivers 5MP forensic clarity, and takes impact without housing replacement. The dual-codec pairing and ONVIF compliance mean integration is straightforward—we've never had to work around proprietary streaming or legacy codec limitations. The IK10 rating and IP67 weatherproofing are not marketing theater; in active retail and hospitality environments, this durability specification translates directly to lower replacement frequency and field service overhead. Against nearest competitors (Axis M3066-V, Hanwha XNB-6005), the IWP533 offers better resilience and a proven Sarix Pro 3 software stack, though it sacrifices the compact ultra-low-light performance of some premium alternatives. The trade-off is acceptable for most commercial interiors.

Technical Highlights:

• 5MP + F1.6 Aperture: Resolves fine detail (facial landmarks, check-writing hand position, merchandise SKU tags) at distances up to 15–20 feet in daylight. WDR processing eliminates high-contrast scene washout, critical for teller lines and entrance vestibules with competing light sources.
• H.265/H.264 Dual Codec: Encode primary stream at H.265 (12–15 Mbps for 5MP/30fps) and secondary at H.264 (25–35 Mbps) simultaneously; legacy NVRs ingest H.264 while archival systems compress at higher efficiency. Real storage footprint reduction of 40–50% on 90-day rolling retention across large camera counts.
• PoE+ Class 3 (13W budget): Fits any 802.3at PoE+ switch without injectors or power supplies; simplifies rough-in on retrofit installations where UPS-backed PoE+ drops are already provisioned for other devices. No auxiliary 12V DC supply line means fewer cable runs and lower installation labor.
• ONVIF Profile S/T with Audio Input: Standards-based streaming works with Genetec, Milestone, Avigilon, ExacqVision—no proprietary client required. Audio input enables two-way intercom on teller desks or entrance gates, turning the camera into a communication node without separate speaker hardware.
• IK10 Vandal + IP67 Weatherproofing: Withstands accidental impact and direct water spray; proven in airport terminals, transit hubs, and outdoor-adjacent indoor spaces (covered porches, loading dock vestibules) where standard consumer-grade housings fail within a year.
• Day/Night IR (850nm) with Switchable Filters: Infrared operation extends surveillance into complete darkness; daylight IR-cut filter restores natural color balance for forensic face matching and clothing detail. No manual filter swap required.

Deployment Considerations:

• Wedge mount geometry requires exact 90-degree junction space; corner cutouts or surface-mounted electrical boxes work well, but angled or dished ceilings demand custom brackets. Survey the mounting surface and confirm clearance for the camera body and cable gland before ordering.
• PoE+ Class 3 power (13 W nominal) assumes standard network conditions; high-ambient-temperature data centers or environments above 50°C can trigger thermal throttling. Verify your PoE+ switch supplies full 30 W per port if concurrent IR and heater loads are present.
• WDR processing is effective in mixed indoor lighting but is not substitute for supplementary lighting in complete darkness beyond 10–15 feet; IR range is rated for ~30 feet in no-ambient-light conditions. Don't spec this camera for perimeter night surveillance without secondary lighting infrastructure.
• H.265 codec support requires NVR firmware release dated 2020 or later on most platforms (Milestone, Genetec, Avigilon). Confirm VMS codec library includes HEVC before committing to H.265 primary stream; always provision H.264 secondary backup for compatibility.
• microSD card backup is a safety net for network outages, not a 24/7 cold-storage solution; cards are consumer-grade and fail unpredictably after 2–3 years of continuous write cycles. Rotate cards annually and test read performance quarterly.

The IWP533-1ERS is the right choice for commercial facilities standardizing on Pelco Sarix Pro 3 architecture, requiring discrete corner mounting, and willing to trade some ultra-low-light touring capability for impact resilience and space efficiency. It's not a wide-area perimeter camera; it's a precision interior surveillance tool. For integrators supporting multisite retail, banking, or hospitality chains, the maturity and support ecosystem of this platform justify the specification. See the Pelco catalog for complementary turret, dome, and PTZ models.
