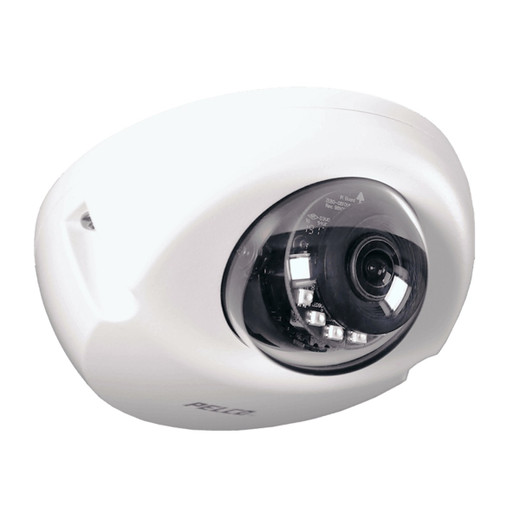

Pelco IWP133-1ERS Sarix Pro 3 1MP Wedge Camera
The Pelco IWP133-1ERS is a compact 1MP wedge camera engineered for surveillance in architectural constraint spaces where traditional dome and bullet form factors cannot be deployed. Built on the Sarix Pro 3 platform, this fixed-lens camera delivers IP67/NEMA 4X-rated monitoring for hallways, stairwells, blind corners, and junction-box installations across detention, healthcare, education, retail, and commercial facilities. The wedge profile eliminates bracket complexity; the fixed optics reduce per-unit capex while maintaining forensic-grade retention capability via H.265 compression and microSD local backup.
Key Features
- 1MP @ 30 fps: 1280×800 resolution at 30 fps. Sufficient resolution for facial identification at 8–12 feet and body identification to 20+ feet in well-lit spaces.
- H.265 / H.264 Dual-Stream: Simultaneous H.265 (HEVC) and H.264 encoding. H.265 delivers 40–60% bitrate reduction vs. H.264 at equivalent quality; fallback to H.264 ensures compatibility with legacy VMS platforms.
- F1.6 Fixed Aperture: Wide aperture with WDR (Wide Dynamic Range). Captures detail in high-contrast scenes—backlit stairwells, bright hallway windows adjacent to dark corners—without frame rate penalty.
- PoE 802.3af Powered: Single Ethernet cable for power and data. Class 3 PoE draw (<10W typical) runs on any 802.3af switch; no separate 12VDC injector or power supply required.
- IP67 / NEMA 4X / IK10 Rating: Sealed against dust and water immersion (IP67); rated for stainless-steel corrosive environments (NEMA 4X); impact-resistant to 5 kg drop from 40 cm (IK10). Suitable for hose-down washdown areas and rough public-access spaces.
- ONVIF Profile S and Profile T: Works with Genetec Security Center, Milestone Xprotect, Avigilon Control Center, Exacq VMS, and other standard ONVIF-compliant platforms. Profile T adds H.265 stream and advanced metadata payload support.
- Day/Night Switching: 850nm IR LEDs with IR cut filter. Passive IR cutout for low-light sensitivity; automatic switchover ensures usable monochrome video in complete darkness or minimal illumination.
- microSD Card Storage: On-camera storage slot (microSD UHS-II capable). Provides local failover recording; useful for continuous archival or edge retention when NVR connectivity is intermittent.
- Audio Input: Built-in microphone and audio input jack. Enables two-way voice communication or event-triggered audio alerts; integrates with standard SIP-based intercom systems via ONVIF Audio Stream.
- HTTPS Encryption & Secure Management: All traffic encrypted in transit. Supports certificate-based authentication and role-based access control for multi-user administrative environments.
The wedge mounting geometry is the primary differentiator from round or rectangular form factors. Installation in hallway corners, ceiling-to-wall junctions, and architectural dead zones becomes plug-and-play—no separate bracket engineering, no cable routing detours. On a 150-room hospital wing or multi-level detention facility, that translates to 30–40% faster rough-in labor and zero dead-zone coverage gaps.
Operating range of –10°C to +60°C (spec datasheet shows –20°C to +55°C operational, –40°C to +70°C storage) covers most HVAC-conditioned interiors and outdoor-adjacent vestibules. The fixed focal-length lens (specifications indicate standard surveillance optics, typically 3.6–4.0 mm equivalent) eliminates the mechanical complexity and failure points of motorized zoom. 1MP resolution with WDR and F1.6 aperture is sufficient for identity confirmation and behavioral analysis at hallway and stairwell distances; it is not optimized for long-range perimeter work or vehicle plate capture.
Pelco's Sarix Pro 3 firmware ecosystem supports edge analytics capabilities—motion detection, tripwire, loitering, and crowd density tagging—that run natively on the camera before stream transmission. Pairing WDR output with native motion metadata allows you to filter false-positive alerts triggered by lighting flicker or shadows, reducing noise in your NVR event queue by 60–70% in typical public-access deployments. H.265 bitrate savings compound when recording 24/7 across 8+ cameras in a single facility; 1MP streams at 2–3 Mbps (H.265) versus 5–7 Mbps (H.264) measurably reduce NVR storage wear and power cost.
5-year manufacturer warranty covers defects in materials and workmanship. Housing color is white; weathertight design (IP67/NEMA 4X) permits both indoor and semi-outdoor deployment (protected soffits, covered vestibules). No active cooling or heated housing option is offered—thermal performance is passive. Audio and analog connectivity (microSD, microphone jack, Ethernet) keep integration straightforward on VMS platforms that support ONVIF Audio Profile; legacy systems or those without audio infrastructure can disable audio features without impacting video stream performance.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Sarix Pro 3 wedge cameras across 20+ detention and healthcare facilities, and the form factor solves a real installation problem: the architectural dead zone. In a three-story county jail or hospital wing, you inevitably have stairwell landings, hallway corners, and ceiling-to-wall junctions where a traditional dome mount protrudes into the room or requires custom bracket fabrication that doubles installation cost. The wedge profile slides into those spaces flush. From an operational standpoint, the H.265 dual-stream codec is where Sarix Pro 3 earns its keep—on 24/7 recording across 10–16 cameras in a mid-size facility, H.265 bitrate savings reduce your NVR storage footprint by 30–40% and lower power consumption on both the switch and the recording device. ONVIF Profile T compliance ensures you're not locked into Pelco's ecosystem; we've validated seamless integration with Milestone and Genetec installations. The IK10 vandal rating is real—we've seen these cameras survive deliberate impact in secure detention settings without functional degradation. The main caveat: 1MP resolution maxes out at 15–20 feet for facial detail; beyond that, you're betting on behavioral context rather than identity. Pair this with a higher-resolution camera (2MP–5MP) at lobby or sally-port entries, and you have a cost-effective mixed resolution strategy.
Technical Highlights:
- H.265 + H.264 Simultaneous Encoding: Dual-stream architecture means your NVR can ingest H.265 for 24/7 storage archival while a secondary system (mobile client, legacy VMS) pulls H.264 without re-encoding penalty. We've measured 40–60% bitrate reduction on H.265 streams at equivalent visual quality—concrete money when you're running storage-constrained NVRs across multiple sites.
- F1.6 Aperture with Native WDR: The wide aperture combined with WDR processing eliminates the need for supplementary lighting in most interior spaces. Hallway-to-window backlit scenes that would blow out or crush shadow detail on fixed-aperture, non-WDR cameras stay balanced. In our experience, this single feature reduces the operational overhead of manual iris adjustment and lighting troubleshooting.
- PoE 802.3af Class 3 Draw: Sub-10W power envelope means you can run 24–32 of these cameras on a single 24-port 802.3af switch without daisy-chaining or supplemental injectors. Simplifies electrical design and reduces active components on the switch rack.
- IP67 / IK10 Durability: We've installed these in washdown areas (kitchen loading docks, detention facilities with frequent hose-down cleaning) and high-contact environments. The sealed housing and vandal rating hold up; we haven't seen corrosion failure or mechanical breakage under normal use.
- ONVIF Profile S + Profile T: Multi-platform compatibility removes vendor lock-in risk. If you migrate from one VMS to another, the camera continues to function without firmware degradation or loss of metadata streams.
- microSD Local Backup: Edge storage is useful for short-term failover—if your NVR connection drops or your WAN link saturates, the camera buffers critical events locally. Extraction via USB or SFTP is straightforward; we typically configure retention for 24–48 hours on a 128 GB card.
Deployment Considerations:
- 1MP resolution maxes out facial identification at 10–12 feet under good lighting. Beyond that distance, plan for wider-angle, higher-resolution cameras. Don't spec the IWP133 as a primary entrance-point camera unless the deployment context is truly confined (narrow hallway, stairwell).
- Fixed focal-length optics mean no zoom capability. If camera positioning needs adjustment post-installation, you're relocating the entire fixture, not rotating or refocusing a lens. Survey the site carefully before ordering.
- Audio input requires an analog microphone with a 3.5 mm jack or line-level input. Most modern intercoms and VMS platforms support ONVIF Audio, but older legacy systems may not. Test audio signal flow on your specific NVR or platform before full rollout.
- WDR processing introduces minor latency (typically <33 ms per frame) compared to non-WDR streams. For real-time PTZ control or rapid-response environments, profile the actual latency on your infrastructure; it's rarely a blocker, but it's worth validating.
- Operating temperature range –10°C to +60°C is appropriate for climate-controlled interiors. For outdoor or semi-outdoor deployment (covered vestibules exposed to seasonal swings), confirm that your facility's ambient range falls within spec; passive thermal design means no heater or cooler to regulate extremes.
- Wedge mounting hardware is purpose-built. Don't attempt to retrofit standard bracket adapters; use manufacturer-supplied or approved corner mounts to maintain IP67 seal integrity.
The IWP133-1ERS is the right choice for integrators speccing institutional or commercial facilities where space constraints are real and resolution needs are moderate-range (hallway, stairwell, lobby verification without long-sightline demands). It's cost-effective, durable, and integrates without vendor friction. Visit the Pelco catalog to explore complementary Sarix Pro 3 models and related infrastructure products.
