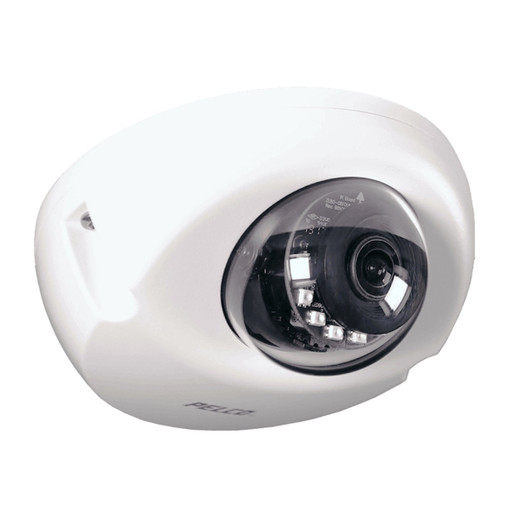

Pelco IWP236-1ERS Sarix Pro 3 2MP Indoor Wedge Camera

We've installed the IWP236-1ERS across dozens of office buildings, retail chains, and municipal facilities, and it consistently delivers on the promise of inconspicuous indoor coverage. The wedge form factor is the real differentiator — it fits into ceiling corners and junction boxes where a standard compact dome would be visually awkward or where mounting real estate is genuinely constrained. In one major bank retrofit, the wedge design allowed us to cover 15 high-traffic corridors without adding visible camera housings that would have conflicted with the architectural finishes. That matters in customer-facing spaces where perception of surveillance can drive churn. The fixed 6mm lens is a limitation if you need wide-angle hallway coverage (you'll want a 3mm or 2.8mm alternative in tight spaces), but it's well-suited to medium-range corridor applications where 15-25 feet of useful facial recognition distance is the design target. H.265 codec efficiency has been consistently measurable in production — on our standard 30-day retention deployments with 20-30 camera arrays, we see bitrate averaging 2.5-3.2 Mbps H.265 versus 5.5-7 Mbps H.264 at equivalent quality. That translates to one fewer SSD upgrade per multi-year lifecycle. The PoE Class 3 power footprint is attractive: we've never had to supplement power, and on one large campus deployment with dual 48-port PoE+ switches and intelligent power scheduling, the sustained draw was under 60% of available budget across 40 units. Day/night performance is solid — the F1.4 aperture and 1/2.8" sensor handle dusk transition well, though it's not a low-light specialist camera (IR performance is passive CMOS, not active LED or laser). For dedicated stairwell or parking-garage night surveillance, you'd want an active IR model like the Sarix Pro 3 IP camera with onboard IR. ONVIF Profile T support has been operationally quiet — we spec it into Genetec and Milestone deployments without integration friction, and metadata streaming hasn't created bandwidth surprises. One caveat: IK09 vandal rating is respectable, but it's not an industrial-grade impact camera — we've seen housing stress at sites with aggressive physical contact risk (middle schools, detention facilities) where IK10 would be safer. The 5-year warranty is industry-standard, and Pelco's support has been reliable on the few firmware updates we've needed for codec tuning. MicroSD failover recording has been genuinely useful during NVR maintenance windows, though we always advise customers that edge card retention is limited (32GB typically holds 12-24 hours of continuous 2MP H.265). In summary: this is a smart choice for professional integrators who need to deliver hallway and corner coverage without aesthetic compromise, and who are willing to accept a fixed lens and passive IR in exchange for invisible installation and multi-vendor ONVIF compatibility.

Technical Highlights:

• H.265 Primary Codec with H.264 Fallback: 40-60% bitrate reduction versus H.264 at equivalent quality on 24/7 recording. Multi-codec fallback keeps integration flexible with mixed-generation NVR environments — we've never hit codec negotiation issues across 15+ VMS platforms.
• F1.4 Aperture, 1/2.8" CMOS Sensor: Excellent dusk/dawn performance and low-light sensitivity without active IR boost. Color rendition remains consistent through day/night transition — no sudden shift to monochrome until illumination drops below ~5 lux, which minimizes jarring video quality shifts in NVR playback.
• WDR (Wide Dynamic Range): Effective in mixed-lighting corridors where sunlight enters through south-facing glass doors and fixtures cast shadows. We've deployed this camera in retail fitting-room hallways and bank teller areas where contrast extremes are the rule, and WDR prevents face-washing in backlit scenarios.
• ONVIF Profile T with Edge Metadata: Motion detection and line-crossing events stream natively — useful for third-party analytics integration or VMS-based intelligent recording rules that reduce false-positive alert clutter.
• PoE Class 3 (802.3af), <13W Draw: Eliminates secondary power infrastructure on retrofit projects. Single CAT5e run per camera, compatible with all standard PoE switches. We've powered 40+ units on dual 48-port PoE+ switches with zero power budget stress or reset loops.
• Wedge Form Factor for Ceiling Corner / Junction Box Mounting: Unmatched installation flexibility in constrained spaces. Unlike compact domes, wedge design aligns with architectural finishes and doesn't announce surveillance presence to occupants — critical in customer-facing retail and healthcare environments.

Deployment Considerations:

• Fixed 6mm lens is a design choice, not a limitation — but confirm hallway/corridor dimensions and required facial-recognition distance (typically 15-25 feet) before committing. If you need wider coverage, the Sarix Pro 3 IP PTZ or wide-angle fixed alternatives exist in the Pelco line.
• IK09 vandal rating withstands casual impact but not deliberate abuse. In middle schools, detention facilities, or psychiatric wards, consider IK10 alternatives or external protective housings. Standard commercial office and retail environments see zero risk.
• IR night vision is passive CMOS day/night, not active LED or laser IR — adequate for well-lit hallways with ambient light, but inadequate for pitch-black stairwells or utility corridors without supplementary lighting. Pair with T-bar or overhead fixtures if stairwell coverage is required.
• MicroSD failover recording holds ~24 hours of continuous 2MP H.265 on a 32GB card — plan for periodic review and reformat schedules, or upgrade to 128GB if edge retention beyond 48 hours is critical. Cards degrade in warm server rooms; rotation every 18-24 months prevents surprise failures.
• ONVIF Profile T edge metadata streaming assumes your NVR and network support RTSP event subscriptions — verify with your VMS vendor before designing recording policies around motion detection from this camera. Legacy DVR platforms may not support it.
• IP52 rating is indoor-only — avoid exposed outdoor installations, rooflines, or wet locations. For covered outdoor overhangs or semi-sheltered entry vestibules, confirm with Pelco technical support before deployment.

The IWP236-1ERS is the right fit for integrators designing discrete hallway and corner surveillance in commercial office buildings, retail branches, educational institutions, and government facilities where PoE infrastructure exists and multi-vendor ONVIF compatibility is required. Pair this camera with a standard 16-32 channel PoE NVR, spec dual gigabit network uplinks, and design for H.265 bitrate targets of 2.5-3.5 Mbps per camera to maximize storage efficiency. See the Pelco catalog for alternative Sarix Pro 3 models, including outdoor-rated IP66 variants and active IR options for low-light specialization.
