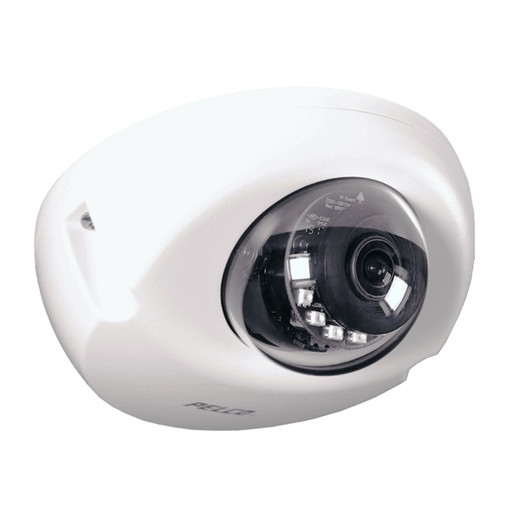

Pelco IWP232-1ERS Sarix Pro 3 2MP Indoor Wedge Camera
The Pelco IWP232-1ERS is a compact 2MP indoor wedge camera engineered for tight spaces where traditional dome housings are impractical. Built on the proven Sarix Pro 3 platform, this fixed 2.4mm ultra-wide lens camera delivers exceptional coverage in elevators, stairwells, hallways, and corner installations. Its discreet wedge form factor mounts seamlessly at wall corners and junction boxes, providing professional surveillance without obstruction.
Key Features
- 2MP 1920×1080 resolution at 30 fps
- Ultra-wide 2.4mm fixed lens for expansive field of view
- Dual H.265/H.264 video compression for flexible streaming and storage
- ONVIF Profile S and T compliance for third-party system integration
- Day/night capability with WDR for balanced exposure in mixed lighting
- PoE powered via single Ethernet connection (IEEE 802.3af)
- IP52 ingress protection rated for indoor environments
- IK09 vandal rating for public-access areas
- MicroSD local storage support for failover recording
- HTTPS encryption for secure data transmission
Technical Specifications
- Sensor: 1/2.8" CMOS with F1.4 aperture
- Operating Temperature: -10°C to +60°C
- PoE Class: 3 (802.3af)
- Connectivity: Ethernet (RJ45)
- Warranty: 5-year limited
- Compliance: NDAA Section 889 compliant
Applications
Ideal for retail environments, office buildings, hospitality venues, educational facilities, and government installations requiring discreet corner surveillance. The ultra-wide 2.4mm lens excels in confined spaces where standard lenses create blind spots. Pelco offers complementary focal lengths—4mm and 6mm—using the same housing for corridor and perimeter applications.
Product Documentation
📄 Download Product Datasheet (PDF)
