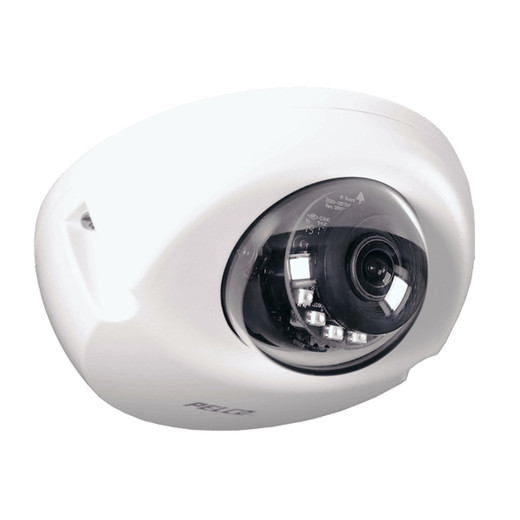

Pelco IWP532-1ERS Sarix Pro 3 5MP Indoor Wedge Camera
The Pelco IWP532-1ERS is a compact 5MP fixed-lens wedge camera from the Sarix Pro 3 series, engineered for discrete indoor surveillance in tight spaces. Its low-profile form factor mounts flush against walls or ceiling corners, making it ideal for environments where traditional domes would be visually intrusive. The 5MP resolution delivers superior pixel density for detailed facial recognition and wide digital zoom capability across corridors, stairwells, elevator lobbies, and retail point-of-sale locations.
Key Features
- 5MP resolution with 1/2.8" CMOS sensor and F1.4 aperture
- Fixed lens with permanent field of view — verify coverage before installation
- H.265 and H.264 dual-stream video compression for flexible bandwidth management
- 30 fps frame rate for smooth motion capture
- IEEE 802.3af PoE (Class 3) powered — no separate power runs required
- IP52 ingress protection rated for indoor environments
- IK09 vandal rating provides impact resistance
- Day/night capability with WDR (Wide Dynamic Range) for challenging lighting
- microSD card slot for local backup storage
- HTTPS encryption for secure data transmission
Technical Specifications
- Sensor: 1/2.8" CMOS, F1.4 aperture
- Video Compression: H.265; H.264
- Frame Rate: 30 fps
- ONVIF Compliance: Profile S and Profile T for broad ecosystem integration
- Operating Temperature: -10°C to +60°C
- Power: PoE (Class 3)
- Warranty: 5 years
Installation and Integration
The wedge mount design eliminates the need for separate bracket purchases in corner or wall-flush applications. ONVIF Profile S and T compliance ensures seamless integration with third-party NVR and VMS platforms. H.265 compression reduces storage footprint compared to H.264, though 5MP bitrate will require greater bandwidth and storage than 2MP or 3MP variants in the same series. Ambient or supplemental lighting is required for optimal low-light performance, as this camera lacks built-in IR illumination.
When to Choose This Model
Select the IWP532-1ERS for high-detail surveillance where wedge form factor is mandatory and 5MP resolution justifies the bandwidth investment. For reduced storage impact, consider the IWP232-1ERS (2MP) or IWP333-1ERS (3MP) alternatives. If varifocal zoom is required, upgrade to a Sarix Pro 4 dome model instead.
Product Documentation
📄 Download Product Datasheet (PDF)
