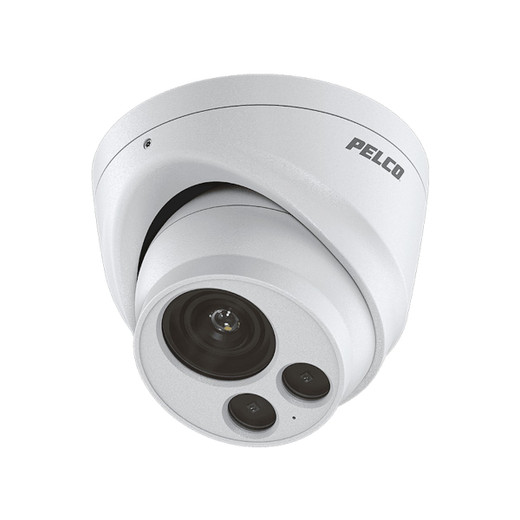

Pelco ITV529-1ERS 5MP Indoor Turret Camera

Pelco ITV529-1ERS 5MP Indoor Turret Camera

The Pelco ITV529-1ERS is a fixed-position 5MP turret camera from the Sarix Value 5 series, purpose-built for indoor corridor, hallway, and controlled-environment surveillance where extended-range identification is required without motorized pan/tilt complexity. The turret form factor allows you to adjust aim after mounting, but the fixed 9mm lens and stationary positioning keep the design simple and the cost predictable.

Key Features

• 5MP resolution at 30 fps: Delivers enough pixel density for forensic-quality cropping and digital zoom on recorded footage — real when you need to confirm a face or read text in a corridor capture without relying on PTZ repositioning.
• Fixed 9mm lens: Narrows field of view to approximately 26° horizontal, optimizing the sensor for longer hallways and extended-range identification tasks. Wider alternatives exist in the Sarix family if you need broader coverage in smaller spaces.
• Dual H.265/H.264 video compression: H.265 cuts storage and bandwidth consumption roughly in half versus H.264 in typical scenes — significant when recording 24/7 across dozens of cameras on a finite NVR or storage budget.
• True Wide Dynamic Range (WDR): Balances exposure in mixed-lighting environments (fluorescent plus natural window light, for example), reducing blown-out or crushed detail in difficult scenes without requiring expensive lighting retrofits.
• 1/2.8" CMOS sensor with F1.4 aperture and day/night: The large aperture and small sensor size work together to capture usable video in low-light corridors without requiring separate IR illuminators — the built-in IR handles darkness, and the wide aperture gathers ambient light efficiently.
• PoE powered (802.3af, Class 3, under 13W): Runs on standard 802.3af PoE; won't stress your switch's power budget even across 20+ cameras on a single 95W PoE switch port. No separate 12VDC supply or transformer needed.
• IP52 rating for indoor environments: Resists dust and splashing water — adequate for corridors, offices, and warehouses. IP66 outdoor variant is available if you need full dust and rain protection.
• IK09 vandal rating: Withstands 5 joules of impact energy — meaningful in retail or public-access corridors where accidental or deliberate bumps happen; survives more than a punch but not a deliberate tool strike.
• microSD local storage support: Offloads emergency video to a local card if the network connection drops, providing continuity for critical events without relying entirely on centralized NVR availability.
• ONVIF Profile S and Profile T compliance: Integrates with any ONVIF-compatible VMS (Milestone XProtect, Genetec, Axis Camera Station, and others) without proprietary plugins or locked-in software contracts.
• HTTPS encryption and signed firmware: Protects video in transit and ensures the camera loads only manufacturer-signed code; reduces the attack surface in environments handling sensitive operations or subject to compliance audits.

Integration and Compatibility

The ITV529-1ERS supports ONVIF Profile S and Profile T, enabling deployment in heterogeneous VMS environments. PoE-powered via standard Ethernet, it integrates with any IEEE 802.3af-compliant switch or PoE injector. Surface-mount installation uses Sarix Value standard brackets, simplifying integration into existing Pelco camera deployments. The camera outputs H.265 or H.264 on demand — configure via ONVIF or Pelco's mobile app to match your VMS codec preference and storage constraints.

When to Choose a Different Model

If you require indoor coverage broader than a 26° horizontal field of view, consider a Sarix model with a shorter focal length (e.g., 4mm or 6mm variants in the same family). For outdoor corridors, loading docks, or roofline applications, select an IP66-rated Sarix turret instead. If motorized pan/tilt or zoom is non-negotiable, explore PTZ options within Pelco IP cameras — accept higher power draw and complexity in exchange for remote positioning.

Frequently Asked Questions

Q: Is the Pelco ITV529-1ERS NDAA Section 889 compliant?

A: Yes, the ITV529-1ERS is NDAA Section 889 compliant, meaning it contains no restricted Huawei, Hikvision, Dahua, or ZTE components. This matters for U.S. federal procurement, GSA contracts, and defense-sector integrations.

Q: What is the warranty on the ITV529-1ERS?

A: The ITV529-1ERS includes a 5-year manufacturer warranty covering defects in materials and workmanship.

Q: Can I wall-mount the ITV529-1ERS, or is it ceiling-only?

A: The turret form factor and Sarix Value standard brackets support both wall and ceiling mounting. Verify bracket orientation during installation to ensure lens aim is correct after aiming adjustment.

Q: Does the ITV529-1ERS work with Milestone XProtect?

A: Yes. The camera supports ONVIF Profile S and Profile T, which Milestone XProtect recognizes natively. Add the camera to XProtect as an ONVIF device without vendor-specific plugins.

Q: What is the maximum recommended cable run distance from the PoE switch?

A: Standard Ethernet best practice is 100 meters (328 feet) for Cat5e or better. PoE voltage loss increases beyond 90 meters; if your run approaches that, verify PoE voltage at the camera with a meter before commissioning.

Q: Can I use H.265 compression with my NVR if it only supports H.264?

A: No. Configure the ITV529-1ERS to output H.264 if your NVR lacks H.265 support. The camera delivers both codecs; select the one your system requires.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The Pelco ITV529-1ERS (often searched as ITV529 1ERS) is a straight-forward fit for fixed corridor and hallway deployments where you need reliable 5MP capture without the cost and power overhead of motorized pan/tilt. The 9mm fixed lens and 26° horizontal field of view are precise enough for longer runs; don't force this model into small office lobbies or wide open spaces where you'll waste resolution on the periphery.

Technical Highlights:

• H.265 codec: Reduces storage footprint by roughly 50% versus H.264 in typical indoor corridor scenes — meaningful when you're running 24/7 recording and your NVR has 8–16 TB of capacity to share across 12+ cameras.
• F1.4 aperture with 1/2.8" sensor: Captures usable detail in corridors lit only by overhead fluorescent or LED at 100–200 lux without requiring external IR fixtures — the native aperture does real work.
• PoE 802.3af under 13W: Won't trigger PoE power alerts on a standard managed switch. You can chain 8+ cameras on a single PoE+ (30W) injector without exceeding budget.

Deployment Considerations:

• The turret housing and 9mm lens combo lock you into a narrow field of view — measure your corridor width and sightline distance before ordering. If you need to cover 10 feet of width at 30 feet of distance, this lens is correct; if you need to see both sides of a 25-foot-wide loading dock, you'll regret the choice.
• IP52 rating is indoor-only; direct rain or sustained moisture exposure will compromise the connectors. IP66 variant exists — don't cut corners on outdoor loading docks by deploying IP52.
• microSD local storage is a failsafe, not a primary recorder — treat it as a backstop for the 10–30 minutes of video between a network hiccup and your NVR catching up.

Position the ITV529-1ERS in retail loss-prevention corridors, educational facility hallways, or office suite entries where long-range face recognition and forensic-quality cropping justify a narrow FOV and fixed aim. In environments where operators or integrators will need to repurpose or broaden coverage on the fly, a wider-angle or PTZ alternative will cost less in labor and client change orders over the camera's lifespan.
