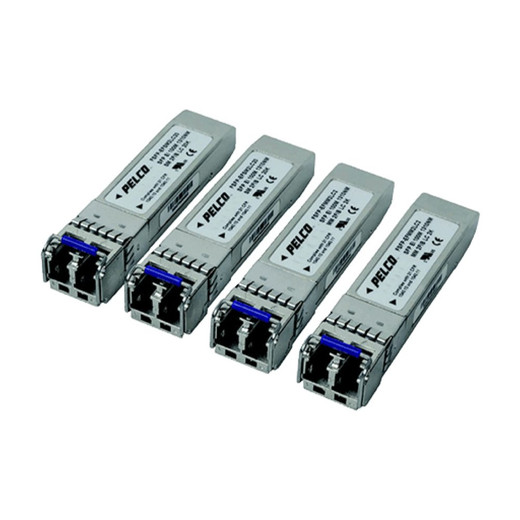

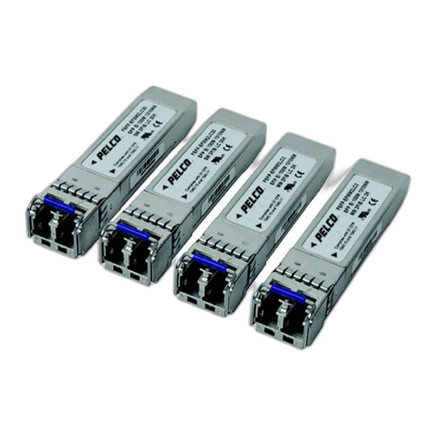

Pelco FSFP-EGSM2LC70 GbE SM Duplex SFP Module

Pelco FSFP-EGSM2LC70 GbE SM Duplex SFP Module

The Pelco FSFP-EGSM2LC70 is a Gigabit Ethernet single-mode duplex SFP transceiver engineered for long-distance fiber optic links in professional surveillance and security infrastructure. Operating at 1550 nm with a maximum reach of 70 km, this module delivers extended transmission capability across campus backbone networks and utility corridors with minimal signal degradation.

Key Features

• 1000 Mbps Gigabit Ethernet performance
• Single-mode duplex fiber with LC connectors
• 1550 nm wavelength for extended distances
• 70 km maximum transmission reach
• Lower fiber attenuation than 1310 nm at long distances
• Standard duplex operation—no A/B pairing required
• NDAA Section 889 compliant for government procurement
• 5-year warranty

Technical Highlights

The 1550 nm wavelength provides superior performance for extended-distance deployments, reducing attenuation losses across longer fiber runs compared to shorter-wavelength alternatives. Confirm fiber attenuation budget across your full installation, including all splices and connectors, to ensure optimal performance. Standard duplex operation simplifies installation and eliminates complex A/B pairing requirements.

Applications

Ideal for connecting distributed camera systems across large campuses, utility corridors, and inter-building backbone networks. Suitable for commercial and industrial surveillance deployments requiring enterprise-grade reliability and extended range without signal repeating.
