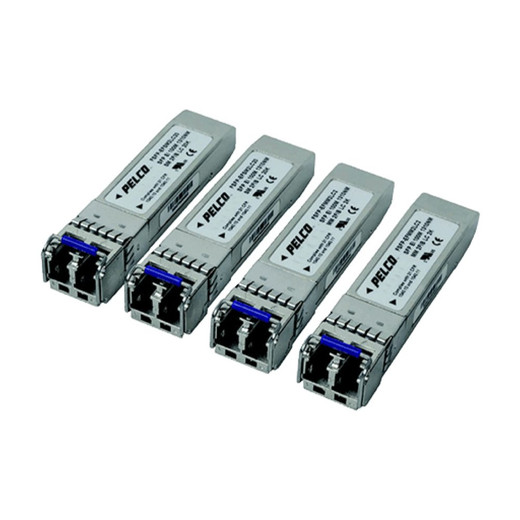

Pelco FSFP-BFSM1LC60 100FX WDM SFP Module
The Pelco FSFP-BFSM1LC60 is a Fast Ethernet WDM SFP transceiver module designed for extended-distance fiber optic transmission in professional security and surveillance deployments. This B-side unit transmits at 1550 nm over single-mode fiber with LC simplex connectivity, delivering reliable 100 Mbps communication up to 60 km—ideal for large-scale campus and metropolitan area networks.
Key Features
- 100 Mbps Fast Ethernet over single fiber strand
- Wavelength Division Multiplexing (WDM) for efficient fiber utilization
- LC simplex connector for standard fiber infrastructure
- Extended 60 km transmission range
- B-side transceiver (pairs with FSFP-AFSM1LC60 A-side unit)
- 5-year warranty backed by Pelco support
- NDAA Section 889 compliant for government deployments
Technical Highlights
This module operates as part of a matched pair system. When combined with the FSFP-AFSM1LC60 A-side module, it enables full-duplex 100 Mbps communication on a single fiber strand, eliminating the need for dual-fiber installations and reducing infrastructure costs. The WDM architecture allows simultaneous bi-directional transmission using separate wavelengths. For shorter distances, Pelco offers cost-optimized alternatives: the FSFP-BFSM1LC2 (2 km) and FSFP-BFSM1LC20 (20 km). Organizations requiring gigabit speeds at equivalent distances should consider the FSFP-BGSM1LC60.
Applications
- Large-scale security camera networks spanning multiple buildings or facilities
- Long-distance point-to-point fiber links for surveillance systems
- Enterprise and government surveillance infrastructure
- Critical infrastructure monitoring and industrial security applications
