Discontinued — No Longer Available New
This model has been discontinued by Pelco. Shop current Pelco products → or see the recommended alternatives below.

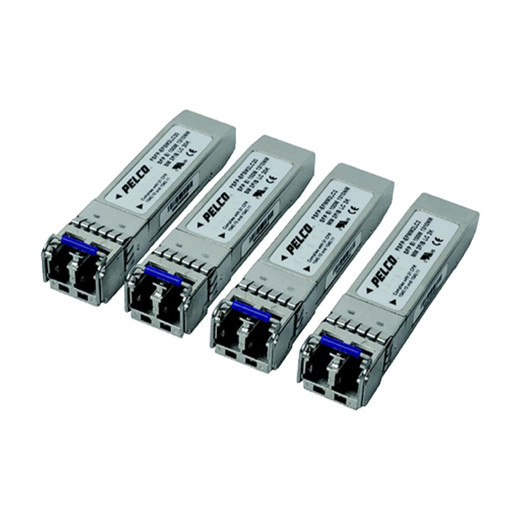

Pelco FSFP-BFMM1SC2 WDM SFP B-Side 1550nm
The Pelco FSFP-BFMM1SC2 is a wavelength-division multiplexing (WDM) SFP transceiver module designed for single-fiber bidirectional communication in professional surveillance and security deployments. Operating at 1550nm transmit wavelength over multimode fiber, this B-side module pairs with the A-side FSFP-AFMM1SC2 (1310nm TX) to enable full-duplex Fast Ethernet at 100 Mbps over a single fiber strand, reaching distances up to 2km.
Key Features
- WDM SFP transceiver – 1550nm transmit, B-side configuration
- Single-fiber operation – halves fiber strand requirements vs. duplex modules
- 100 Mbps Fast Ethernet – compatible with standard Ethernet infrastructure
- SC simplex connector – multimode fiber compatible
- 2km maximum reach – suitable for campus and extended facility links
- 5-year manufacturer warranty
- NDAA Section 889 compliant – approved for government and regulated installations
Technical Specifications
- Type: Fiber Media Converter / SFP Module
- Wavelength: 1550nm (transmit)
- Connector: SC simplex
- Fiber Type: Multimode
- Speed: 100 Mbps
- Range: 2km
- Part Number: FSFP-BFMM1SC2
Applications
Ideal for Pelco camera systems and professional video surveillance networks where fiber infrastructure is constrained. Single-fiber WDM modules reduce cabling costs and complexity in multi-camera deployments across buildings, campuses, and industrial facilities. Meets compliance requirements for government and regulated security installations.
Note: Must be paired with FSFP-AFMM1SC2 (A-side, 1310nm TX) at the opposite link end. Both units required for operation.
