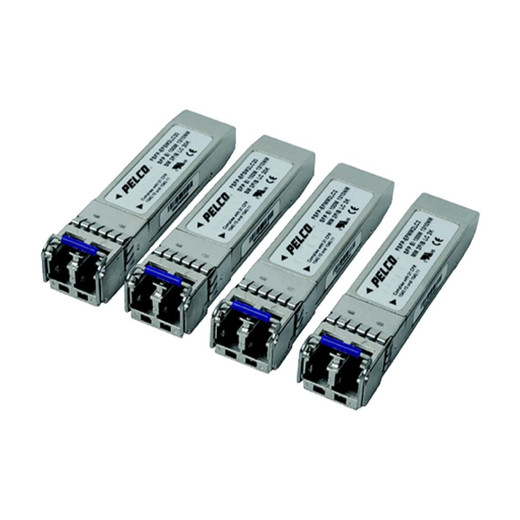

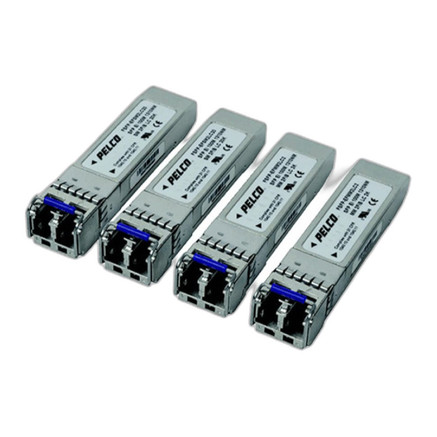

Pelco FSFP-AGSM1LC20 GbE WDM SFP Transceiver
The Pelco FSFP-AGSM1LC20 is a Gigabit Ethernet WDM SFP module designed for long-distance, single-fiber backbone deployments in professional surveillance and security networks. This A-side transceiver operates at 1310 nm wavelength with LC simplex connectivity, supporting full-duplex 1 Gbps communication over a single strand up to 20 km when paired with the complementary B-side FSFP-BGSM1LC20 module.
Key Features
- Gigabit Ethernet WDM SFP transceiver operating at 1310 nm (A-side)
- Extends gigabit connectivity up to 20 km over single-mode fiber
- LC simplex connector for compatibility with modern switch ports and fiber patch panels
- Requires pairing with FSFP-BGSM1LC20 (B-side, 1550 nm) for full-duplex operation
- Reduces fiber strand requirements on long backbone runs
- NDAA Section 889 compliant for government and regulated installations
- 5-year warranty coverage
Technical Highlights
This SFP module delivers enterprise-grade performance for Pelco camera systems and professional security deployments. The wavelength division multiplexing (WDM) design enables simultaneous bidirectional communication over a single fiber pair, significantly reducing infrastructure costs and fiber management complexity in large-scale installations. Integration with standard SFP switch slots ensures seamless compatibility with existing network equipment.
Applications
Ideal for extending gigabit surveillance networks across large facilities, campuses, or outdoor perimeters where fiber backbone consolidation is required. Supports enterprise surveillance workflows and industrial security deployments demanding reliable long-distance connectivity.
