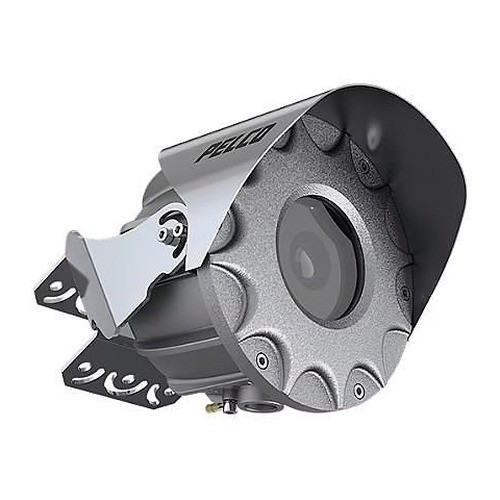

Pelco EXC2602-62 6MP Explosion-Proof Compact Camera

Pelco EXC2602-62 6MP Explosion-Proof Compact Camera

Overview

The Pelco EXC2602-62 is a certified fixed camera engineered for deployment in hazardous classified environments containing flammable gases, vapors, mists, or combustible dusts. This compact design accommodates confined mounting locations where full-size explosion-proof housings would be impractical—a real advantage in loading zones, process facilities, and chemical storage areas. Built in 316L stainless steel with ATEX Zone 1/21, IECEx Zone 1/21, UL, CSA, and EACEx certifications, the EXC2602-62 meets the regulatory requirements demanded by safety-critical operations. The 6MP sensor captures sufficient detail for process monitoring and incident investigation without unnecessary bandwidth overhead. Pelco IP cameras in this class are purpose-built to survive environments where standard surveillance gear would fail.

Key Features

• 6MP resolution (3200 x 1800): Delivers clarity for facial features and asset detail in confined spaces. Paired with H.265 compression, you reduce storage demand by roughly 40–60% compared to H.264—meaningful when recording 24/7 across multiple hazardous zones on a single recorder.
• 4.9–8mm motorized varifocal lens: Lets you adjust focal length in the field without swapping optics. Wider angle covers loading docks; narrower range isolates equipment in a silo or tank farm—flexibility without site visits.
• PoE+ powered: Draws power over Ethernet (higher current than standard PoE), eliminating the need for a separate 12VDC supply in the hazard area. Reduces wiring complexity and certification headaches when Class I Division 2 electrical codes apply.
• IP69/IP68 ingress protection: Handles washdowns and occasional submersion without degradation. IP69 specifically means high-pressure jets (like those used on chemical equipment) won't penetrate seals—critical in plants where corrosive or volatile residues accumulate.
• Operating range -40°C to +60°C: Covers extreme temperature swings in unheated warehouses, outdoor grain silos, and refrigerated storage. Standard cameras often fail or produce unusable video below 0°C; this unit remains stable across that full span.
• Built-in IR with 0.055 lux low-light capability: Sees in near-total darkness without external lighting. The 0.055 lux threshold means you capture motion and detail in completely unlit production floors—no supplemental IR floodlights needed, saving installation costs and power draw.
• 30 fps frame rate: Smooth motion capture on conveyor lines and vehicle movements. Sufficient for post-incident forensics without consuming extra storage.
• WDR (Wide Dynamic Range): Balances bright and dark areas in a single frame—essential when a camera overlooks both a sunlit loading dock and a shadowed interior bay simultaneously.
• H.265 and H.264 codec support: Choose compression based on your recorder's capability and bandwidth constraints. H.265 is the modern default; H.264 ensures backward compatibility with aging VMS systems.
• ONVIF Profile S, T, G, M compliance: Integrates with network video recorders and open-standard VMS platforms from any vendor. Not locked into proprietary ecosystems—your investment remains portable if you upgrade recording infrastructure.
• microSD storage support: Local backup on the camera itself protects against network failures. Valuable in remote hazardous zones where communication is intermittent.
• HTTPS encryption and secure boot: Protects video feed and firmware from interception or tampering. Meets basic cybersecurity expectations for facilities handling sensitive operations.

Integration & Compliance

Field wiring must comply with local electrical codes for your designated hazardous area classification—Zone 1 vs. Zone 2 (IEC/ATEX) or Division 1 vs. Division 2 (UL/CSA). Before ordering, verify that the EXC2602-62's certification matches your site's zone assignment. NDAA Section 889 compliance confirmed, making this model eligible for U.S. government procurement workflows. The camera selection guide covers how to validate zone compatibility and power planning for multi-camera deployments.

When to Choose a Different Model

If you require higher resolution (above 6MP) or a wider varifocal range (beyond 4.9–8mm), check the broader explosion-proof camera family for alternatives. If your application doesn't mandate explosion-proof certification, standard IP cameras deliver the same optical performance at lower cost. If you need pan-tilt-zoom (PTZ) capability, explosion-proof PTZ models exist but occupy significantly more space and power—confirm mounting constraints before exploring that path.

Warranty & Support

5-year manufacturer warranty covers defects in materials and workmanship. OEM replacement parts and firmware updates remain available throughout the product lifecycle.

Frequently Asked Questions

Q: Is the EXC2602-62 suitable for my Zone 2 / Division 2 facility?

A: The EXC2602-62 carries Zone 1/21 and Division 1 certifications. While it will physically function in a Zone 2 area, you are not required to use a Zone 1-certified camera there. Check with your plant safety officer or local authority having jurisdiction (AHJ) to confirm whether Zone 2 certification alone is permissible for your application.

Q: What's the maximum IR range on the EXC2602-62?

A: The specification states 0.055 lux minimum illumination with built-in IR for day/night operation. Exact IR throw distance depends on scene reflectivity and target size; the datasheet provides detailed range curves for common industrial surfaces.

Q: Does the EXC2602-62 work with Milestone XProtect or Genetec Security Center?

A: Yes. ONVIF Profile S, T, G, and M compliance ensures compatibility with any VMS that supports those profiles, including Milestone and Genetec. Confirm your VMS version supports the ONVIF profiles listed before finalizing the integration.

Q: Can I mount the EXC2602-62 on a vertical wall in a confined space?

A: The compact form factor is designed for wall mounting in tight quarters. Confirm that your mounting surface (stainless steel or powder-coated steel in hazardous areas) can support the camera's weight and that wiring can be routed to a certified junction box per electrical code.

Q: How much bandwidth does the EXC2602-62 consume on a network?

A: H.265 bitrate at 6MP, 30 fps, and typical industrial motion averages 2–4 Mbps; H.264 consumes roughly double that. Exact figures depend on scene complexity and compression settings. Budget for PoE power and bandwidth planning across your multi-camera deployment to avoid switch congestion.

Q: What's the warranty on the EXC2602-62?

A: 5-year OEM warranty from the manufacturer, covering defects in materials and workmanship. Replacement parts and firmware updates are available throughout the product lifecycle.

James Everett

The Pelco EXC2602-62 solves a real problem: most explosion-proof cameras are bulky and consume excessive power, but this compact unit packs certified thermal and pressure protection into a form factor that fits confined mounting points. The 4.9–8mm motorized varifocal lens gives you post-installation focus flexibility—critical when site surveys underestimate sightlines in cluttered warehouses or tank farms.

Technical Highlights:

• H.265 compression at 6MP: Cuts storage by 40–60% versus H.264. On a 24/7 multi-camera NVR, that's the difference between a 2TB and 4TB recorder for the same retention window—a tangible budget win when you're deploying 8–12 cameras across a chemical plant.
• 0.055 lux IR sensitivity: Captures motion in nearly zero ambient light. No supplemental floodlights required in dark process bays, reducing installation cost and eliminating the need to certify external lighting for Zone 1 compliance.
• PoE+ power delivery: Higher current over Ethernet than standard PoE means no separate 12VDC conduit runs through the hazardous zone. Simplifies electrical certification and reduces junction boxes in classified areas.
• 316L stainless steel body: Resists corrosion in chemical atmospheres and washdown environments. IP69/IP68 sealing ensures long service life without rust-related failure modes typical of painted housings.
• -40°C to +60°C operating range: Handles unheated warehouses and extreme seasonal swings without image degradation or thermal shutdown. Most standard cameras fail or produce unusable video below freezing; this unit remains stable.

Deployment Considerations:

• Zone classification is non-negotiable: confirm your facility's hazardous area classification (Zone 1 vs. 2, Division 1 vs. 2) before purchase. This camera is certified for Zone 1/Division 1; using it in a Zone 2 area is permissible but overkill and wastes certification cost.
• Field wiring must comply with your local AHJ's electrical code for the hazard classification. In North America, this typically means UL/CSA compliance; in Europe, ATEX/IECEx. Budget time for electrical audit before installation.
• The compact size assumes wall mounting in tight quarters—confirm your chosen surface can accept the fasteners and that power/Ethernet routing to a certified terminal box is practical before finalizing the location.

The EXC2602-62 is the right choice for confined-space explosion-proof deployments in chemical processing, grain handling, and fuel storage where space constraints and regulatory compliance drive the decision. Skip it if your facility permits standard IP cameras or if you need pan-tilt-zoom capability—those trade-offs belong to a different product family.
