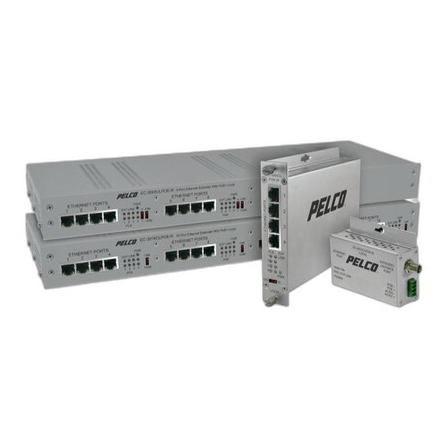

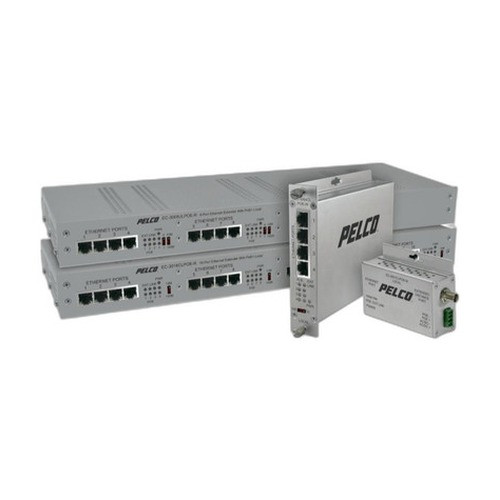

Pelco EC-3001URPOE-M PoE Extender Remote Unit

Pelco EC-3001URPOE-M PoE Extender Remote Unit

The Pelco EC-3001URPOE-M is a single-channel Cat5 PoE extender (remote-end unit) designed to extend IP camera connectivity beyond standard 100-meter Ethernet limits. Housed in a compact mini form factor, this accessory delivers up to 30 W of PoE power to connected cameras, making it ideal for long-distance surveillance deployments where standard switch distances are insufficient.

Key Features

• Single-channel Cat5 PoE extender for remote-end installation
• Delivers up to 30 W PoE output supporting 802.3af and 802.3at standards
• Compact housing fits inside junction boxes for discreet installation
• Extends camera connectivity beyond 100 m Ethernet limit
• Pairs with EC-3001ULPOE-M local-end unit for complete link
• NDAA Section 889 compliant for government and regulated environments

Technical Specifications

Install the EC-3001URPOE-M at the camera end of the extended run. This remote unit must be paired with the EC-3001ULPOE-M local-end unit positioned at the switch side to complete the extender link. The 30 W output supports both 802.3af and 802.3at powered devices. For cameras drawing more than 30 W, verify the extender output meets your power requirements before installation.

Applications

Ideal for commercial and industrial surveillance installations requiring extended camera runs. Engineered for professional deployment in enterprise-grade security systems where standard cabling distances are inadequate.

Support and Warranty

Backed by a 1-year warranty and compatible with Pelco Camera Systems. Order through authorized Pelco distribution channels.
