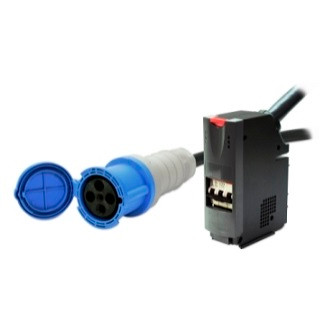

APC by Schneider Electric PDM3460IEC309-260 Power Distribution Module
Overview
The APC by Schneider Electric PDM3460IEC309-260 is a power distribution module rated for 200–240V input and fitted with an IEC 309 60A output connector — a configuration aimed at high-current data center, industrial UPS, and critical infrastructure deployments where a standard NEMA outlet simply isn't rated for the load. If you're distributing power from a large UPS or generator output to downstream equipment in a server room or equipment room, the IEC 309 locking connector format on the PDM3460IEC309-260 (often searched as PDM3460IEC309 260) provides a secure, industry-standard termination that won't accidentally disconnect under vibration or cable tension.
IEC 309 connectors are the correct choice when you need a connector rated for repeated mate/unmate cycles in commercial power environments — unlike twist-lock NEMA connectors, the IEC 309 format is internationally standardized, which matters in mixed-vendor infrastructure where equipment sourced globally needs to interconnect cleanly. The 200–240V input range covers both the 208V three-phase derived single-phase legs common in North American data centers and the 230V nominal standard used throughout Europe and most international facilities, so this module isn't locked to a single electrical environment.
APC's power distribution lineup spans basic outlet strips to intelligent per-outlet metered and switched PDUs — the PDM3460IEC309-260 sits in the modular distribution segment, designed to terminate high-current feeds and present them in a structured, identifiable connector format rather than bare wire terminations. For integrators building out UPS bypass circuits, generator transfer panels, or structured power distribution in equipment rooms, this kind of module reduces field-wiring errors and makes power audits straightforward.
Consult your APC representative or a licensed electrician to confirm conductor sizing, breaker coordination, and local electrical code compliance before installing any 60A-rated distribution component. Verify the receiving equipment's inlet connector matches IEC 309 60A before ordering.
Frequently Asked Questions
Q: What input voltage does the PDM3460IEC309-260 support?
A: The PDM3460IEC309-260 is rated for 200–240V input, covering both 208V (common in North American data centers) and 230V (international standard).
Q: What type of output connector does the PDM3460IEC309-260 use?
A: It uses an IEC 309 60A output connector — a heavy-duty, internationally standardized locking connector format suited for high-current commercial and industrial power distribution.
Q: Is the PDM3460IEC309-260 compatible with APC Smart-UPS and Symmetra systems?
A: APC power distribution modules in this series are typically designed to integrate with APC's UPS and power infrastructure ecosystem, but compatibility should be confirmed against your specific UPS model's output connector and current rating before purchasing.
Q: Can the PDM3460IEC309-260 be used in international deployments?
A: The 200–240V input range makes it suitable for international electrical environments operating at 230V nominal, as well as 208V North American data center feeds.
The PDM3460IEC309-260's IEC 309 60A output is what distinguishes this module from a standard PDU outlet strip — you're terminating a high-current feed in a connector format that is mechanically retained, globally standardized, and rated for the ampacity. That matters when you're building out power distribution for a large UPS bank or generator-backed equipment room where a pull-out disconnect would be a serious incident.
Technical Highlights:
- 200–240V Input Range: Covers both 208V North American data center feeds and 230V international standard — one SKU works across geographic deployments without re-engineering the power distribution path.
- IEC 309 60A Output: The locking IEC 309 format prevents accidental disconnection under cable weight or vibration, and 60A capacity handles the output feeds of large UPS systems without derating concerns.
- Modular Distribution Architecture: Positions cleanly between a high-current UPS or generator output and downstream distribution, replacing field wire terminations with a structured, auditable connector point.
Deployment Considerations:
- Confirm the receiving equipment's inlet is IEC 309 60A before ordering — the connector is not interchangeable with IEC 309 32A or NEMA twist-lock formats without an adapter, which introduces an unrated junction.
- A 60A-rated circuit requires appropriately sized conductors and upstream overcurrent protection per local electrical code; this is not a plug-and-play installation without a licensed electrician's involvement in most jurisdictions.
Best fit for equipment rooms and data center pods where a large APC UPS or transfer switch outputs a high-current 200–240V feed that needs to be distributed and terminated cleanly — particularly in international or mixed-voltage facilities where IEC 309 is the site standard.
