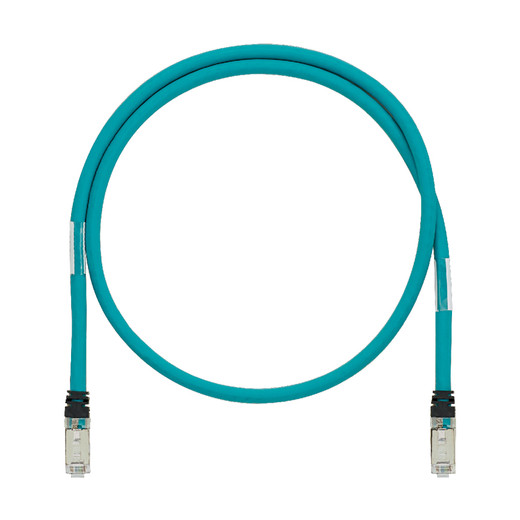

Panduit ISTPH6X0.3MBL Cat6A 600V 0.3m Patch Cord

Panduit ISTPH6X0.3MBL IndustrialNET Cat6A 600V Shielded Patch Cord

The Panduit ISTPH6X0.3MBL is a 0.3-meter (1 ft) Cat6A shielded patch cord engineered for industrial control environments where standard commercial cables fail. Rated for 600V power-source voltages under UL AWM Style 2463, this SF/UTP cable delivers 10GBASE-T data performance alongside electrical isolation needed in factory automation, motor control panels, and robotic installations. The 26 AWG stranded-conductor design handles the repeated flexing of C-Track and robotic arms while maintaining full Category 6A channel compliance, and the shielded construction rejects EMI from VFDs, servo drives, and high-current switching gear that would cripple unshielded links. For integrators wiring EtherNet/IP networks in industrial enclosures or deploying PoE+ devices near heavy machinery, this patch cord solves the voltage-rating and noise-immunity gaps that force most installers to over-spec conduit or run parallel ground paths.

Key Features

• 600V UL 1863 rating for deployment in control panels with high-voltage power sources (UL AWM Style 2463, 80°C)
• Cat6A performance: 10GBASE-T / Gigabit Ethernet / EtherNet/IP / 100BASE-T compliant, exceeds ANSI/TIA-568-C.2 and ISO 11801 Class Ea
• SF/UTP shielded construction: foil shield rejects EMI from variable-frequency drives, contactors, and motor circuits
• 26 AWG stranded copper conductors: engineered for high-flex applications (robotics, cable carriers, C-Track) with superior bend life
• 0.3-meter (1 ft) length: ideal for tight control-cabinet patch fields, consolidation-point uplinks, and short runs between DIN-rail switches and I/O modules
• IEEE 802.3af/at PoE+ certified: safely powers industrial IP cameras, VoIP phones, and access points at full 25.5W budget
• Black jacket: consistent with industrial wiring color conventions for data circuits
• RJ45 plug terminations: standard 8P8C modular plugs, compatible with all industrial Ethernet switches and media converters
• RoHS compliant, CM flammability rating

Industrial Ethernet installations face voltage and EMI challenges that don't exist in office IT networks. Control panels routinely mix 480V AC power distribution, 24V DC logic, and Ethernet data in the same enclosure — the NEC allows this under Article 725 when the data cable carries a 600V rating, but standard Cat6A patch cords are rated for 300V maximum and can't legally share the space. The ISTPH6X0.3MBL solves this code-compliance gap with UL 1863 approval for 600V circuits, letting you run a single patch cord from a DIN-rail PoE switch to an IP I/O module mounted six inches away from a motor starter, without conduit separation or barrier requirements. The SF/UTP shield (foil wrap under the jacket, unshielded twisted pairs inside) provides the EMI rejection needed when the cable routes near VFD output conductors or servo-drive feedback lines — environments where unshielded cables see enough induced noise to flood the PHY with CRC errors and bring the link down. The 26 AWG stranded conductors handle the flexing cycles of robotic arms and cable-carrier systems far better than solid-conductor patch cords; Panduit's IndustrialNET line is specifically tested for high-flex durability (UL AWM Style 2463 flex-life certification), which matters when the cable moves thousands of times per shift.

This 0.3-meter length fits the typical patch-field scenario inside industrial control cabinets: uplinks from edge switches to consolidation-point aggregation switches, patch connections between PoE injectors and device ports, or short hops from a media converter to a PLC Ethernet module. The short length minimizes cable clutter in crowded enclosures and reduces the loop area that could couple noise from adjacent power conductors. Because the cable is rated for PoE+ (IEEE 802.3at), you can power industrial IP cameras mounted on machine guards, wireless access points for mobile HMI tablets, or VoIP handsets on the factory floor — all through the same cable that carries the data, with full 25.5W budget and no voltage drop concerns over this distance. The RJ45 plugs are standard 8P8C modular connectors, so the cable works with any industrial Ethernet switch (Cisco IE, Hirschmann, Moxa, Panduit, etc.) without adapter headaches. The black jacket follows industrial convention for data circuits (power is typically orange or blue), making it easy for maintenance techs to trace circuits during troubleshooting.

The ISTPH6X0.3MBL meets ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class Ea standards, ensuring 10GBASE-T performance when installed as part of a compliant channel — critical for EtherNet/IP networks where deterministic latency depends on full-duplex gigabit or 10-gig throughput. UL 1863 listing and AWM Style 2463 600V rating provide the electrical safety approvals that inspectors require in industrial installations, and RoHS compliance satisfies EU and California material-content regulations for OEM machinery exports. For integrators deploying industrial IP surveillance, building-automation controllers, or factory-network infrastructure in high-voltage environments, this patch cord closes the gap between IT-grade cabling and electrical-code reality.
