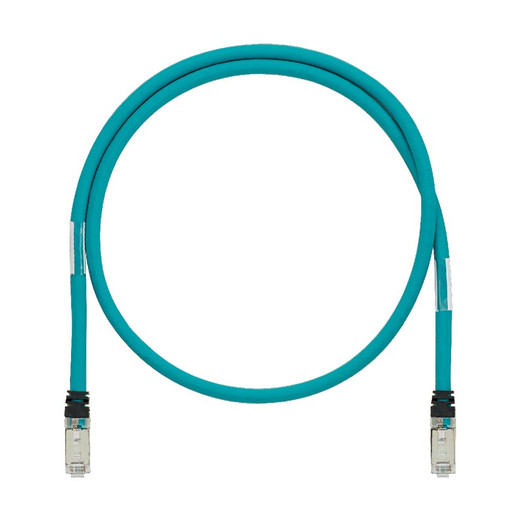

Panduit ISTPH6X3.5MBL IndustrialNET Cat6A 600V Shielded Patch Cord

The Panduit ISTPH6X3.5MBL delivers industrial-grade Category 6A performance in environments where standard commercial patch cords fail. This 3.5-meter shielded cable is UL-rated for 600V operation, making it the right choice for control panel deployments, robotic cells, and industrial Ethernet backbones where power and data share the same conduit runs. The SF/UTP shielded construction combines individual foil-wrapped pairs with stranded 26 AWG conductors engineered for repeated flexing in C-track cable carriers, articulating arms, and high-vibration installations. Unlike solid-conductor office patch cords that crack under motion, this cable's stranded design and industrial jacketing survive the mechanical stress of automated manufacturing floors while maintaining 10GBASE-T performance and full IEEE 802.3at PoE+ power delivery to cameras, access points, and industrial IoT devices mounted on moving machinery.

Key Features

• UL AWM Style 2463 rated for 80°C and 600V operation in control panels and power-adjacent cable paths
• SF/UTP shielded construction with foil-wrapped pairs blocks EMI from VFDs, motor controllers, and high-current conductors
• Stranded 26 AWG conductors pass UL 1863 flex-life testing for robotic applications and cable-carrier installations
• Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class Ea channel requirements for 10 Gbps transmission
• IEEE 802.3at compliant for PoE+ delivery up to 25.5W to industrial cameras, wireless APs, and edge controllers
• Molded RJ45 plugs with integrated strain relief maintain contact integrity through vibration and thermal cycling

Industrial Ethernet installations face challenges commercial IT networks never encounter: 480V three-phase power running parallel to data cables, variable-frequency drives flooding conduit with high-frequency noise, robotic arms flexing cables millions of cycles, and temperature swings from -20°C loading docks to 60°C near process equipment. The ISTPH6X3.5MBL addresses these realities with a 600V UL listing that allows compliant installation in NFPA 79-governed control panels where data and power conductors share enclosures—a scenario where standard 300V-rated office patch cords violate electrical code. The shielded SF/UTP construction uses individual foil wraps on each twisted pair to reject electromagnetic interference from adjacent AC conductors, preventing the bit errors and link flapping that plague unshielded cables in high-EMI environments. The stranded conductor design maintains cable flexibility after thousands of bend cycles, critical for robotic welding cells, automated guided vehicle charging stations, and any application where the cable moves with the machinery rather than terminating at a fixed wall jack.

Category 6A performance in this cable supports the full spectrum of industrial Ethernet protocols—EtherNet/IP for Allen-Bradley and Rockwell controllers, PROFINET for Siemens PLCs, Modbus TCP for legacy SCADA integration, and standard TCP/IP for MES connectivity and cloud-based analytics. The 10GBASE-T capability handles uplinks from edge switches in consolidation points back to core network infrastructure, ensuring that high-resolution vision system data, real-time motion control packets, and supervisory telemetry all coexist without bandwidth congestion. PoE+ compliance allows the same cable to simultaneously deliver gigabit data and 25.5 watts of DC power to surveillance cameras monitoring production lines, industrial wireless access points providing mobile device connectivity for maintenance tablets, and hardened Ethernet I/O blocks controlling pneumatic actuators and conveyor motors. This eliminates separate AC drops for networked devices in locations where conduit access is expensive or physically constrained by existing machinery layout.

The 3.5-meter length fits common industrial scenarios: control panel to nearby HMI touchscreen, PLC to Ethernet switch in adjacent cabinet, or vision camera to PoE injector at the machine base. Stranded conductors and the CM flammability rating meet NEC Article 725 and NFPA 79 requirements for Class 2 and Class 3 circuits in industrial control panels, while RoHS compliance satisfies EEA and California export requirements for machinery builders. This cable exceeds ANSI/TIA-568-C.2 insertion loss and return loss margins, providing headroom against the performance degradation that occurs when cables are bent to the 4× diameter minimums common in crowded industrial enclosures, and the UL 1863 listing confirms third-party verification of electrical safety and flame propagation characteristics—documentation that OSHA and insurance inspectors require during facility audits.
