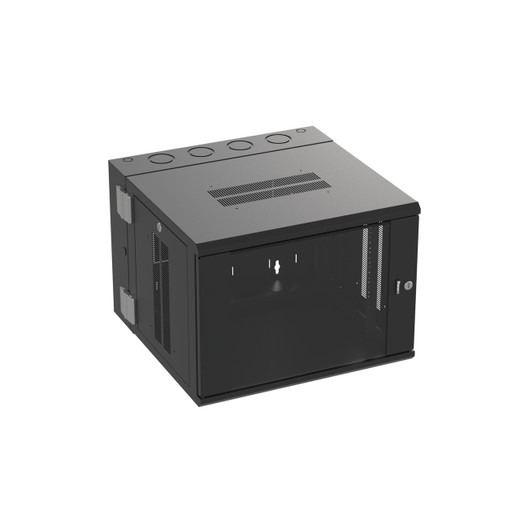

Panduit PZWMC9W PanZone 9RU Wall Mount Network Cabinet
Overview
The Panduit PZWMC9W is a 9-rack-unit wall mount cabinet from the Panduit PanZone enclosure line — built for IT closets, telecom rooms, and distributed network nodes where floor space is constrained but you still need structured, lockable housing for 19-inch rack-mount gear. At 18.5 inches tall and 25 inches wide, it fits a standard single-gang or double-gang wall bay and accepts the same patch panels, switches, and media converters you'd deploy in a full rack. The PZWMC9W ships in black powder-coated steel with a hinged middle section and removable side panels, making cable management and equipment installation practical in tight wall-mount situations rather than an exercise in frustration.
Key Features
- 9 Rack Units of 19" EIA Capacity: Nine RU of usable space handles a typical IDF or zone closet load — 1–2U PoE switch, patch panel, and a fiber termination shelf — without requiring a full floor-standing rack. If you're deploying distributed network switching across a building, wall-mounting at each zone cuts structured cabling runs and keeps the gear accessible without a dedicated equipment room.
- Steel Construction: The all-steel enclosure resists the dents, flex, and panel rattle that plague sheet-aluminum alternatives — relevant in warehouse, manufacturing, or school environments where the wall cabinet gets bumped by carts or ladders. Steel also simplifies grounding continuity to the cabinet chassis, which matters for any deployment following NEC or TIA-607 grounding standards.
- Hinged Middle Section with Removable Side Panels: The hinged middle section swings open for front access to patching and cable terminations, while removable side panels let you route horizontal cable runs or add a side-entry conduit fitting without cutting access holes. This is the detail that separates an install-and-forget enclosure from one that becomes a problem at the next MACs (moves, adds, changes) visit.
- UL 2416 Listed: UL 2416 is the standard for IT and communications equipment enclosures — listing confirms the cabinet was evaluated for structural integrity, flammability, and electrical safety under a recognized independent lab. For deployments in commercial buildings subject to AHJ inspection, a UL-listed enclosure is often a baseline requirement, not a nice-to-have.
- NEMA 1 / IP20 Rated: NEMA 1 and IP20 both indicate protection against incidental contact with live parts and against solid objects larger than 12.5mm — appropriate for indoor, climate-controlled, non-condensing environments like IT closets, server rooms, and above-ceiling network nodes. This is NOT rated for wet, dusty, or outdoor locations; if your zone closet is exposed to moisture ingress or industrial dust, step up to a NEMA 12 or NEMA 4 enclosure instead.
- RoHS Compliant: The PZWMC9W meets RoHS restrictions on hazardous substances in electrical and electronic equipment — relevant for projects with environmental compliance requirements or for installations in the EU and jurisdictions adopting equivalent standards.
- Accepts Standard 19" EIA Rack Mount Panels and Equipment: Compatibility with the 19-inch EIA-310 rail standard means you're not locked into proprietary hardware. Any rack-mount device — patch panels, managed switches, KVM units, fiber enclosures, UPS modules — installs without adapter kits or rail modifications.
- PanZone® Sub-Brand: The PanZone series is Panduit's zone-distribution enclosure family, designed around structured cabling distribution points in horizontal cabling topologies. If you're building out a structured cabling infrastructure with zone outlets or consolidation points, the PZWMC9W integrates directly with Panduit zone cabling hardware and cable management accessories.
Integration & Compatibility
The PZWMC9W is compatible with any standard 19-inch EIA-310 rack-mount equipment — no proprietary mounting rails or adapter brackets required. It fits naturally into Panduit zone cabling deployments alongside PanZone patch panels, angled patch panels, and horizontal cable managers. For PoE switch installations, verify that your switch's depth fits within the cabinet's interior depth before ordering, as the source evidence does not specify an interior depth dimension — confirm with the Panduit datasheet or contact pre-sales engineering for dimensional confirmation on depth-critical installations. The cabinet's steel chassis provides a bonding point for equipment ground conductors per TIA-607-C zone ground bar practice. Standards compliance — UL 2416, NEMA 1, IP20, RoHS — aligns with typical commercial building code requirements and green building specifications.
Frequently Asked Questions
Q: What rack unit capacity does the PZWMC9W provide, and what equipment does it accept?
A: The PZWMC9W provides 9 rack units (9RU) of usable space and accepts any standard 19-inch EIA-310 rack-mount panels and equipment — patch panels, managed switches, fiber enclosures, KVM units, and similar devices without adapter kits.
Q: Is the PZWMC9W rated for outdoor or wet-location use?
A: No. The PZWMC9W carries NEMA 1 and IP20 ratings, which are indoor, dry-location ratings. It is not rated for outdoor, wet, or dusty environments. For those conditions, select a NEMA 12 or NEMA 4 rated enclosure instead.
Q: What certifications and compliance standards does the PZWMC9W meet?
A: The PZWMC9W meets UL 2416 (IT and communications enclosure standard), NEMA 1, IP20, and RoHS compliance for hazardous substance restrictions.
Q: Does the PZWMC9W work with Panduit PanZone cabling accessories?
A: Yes. The PZWMC9W is part of the PanZone® enclosure family and is designed to integrate with Panduit zone cabling hardware including PanZone patch panels, cable managers, and zone outlet accessories.
Q: What are the overall dimensions of the PZWMC9W?
A: The PZWMC9W measures 18.5 inches (471mm) tall and 25 inches (635mm) wide. Interior depth is not specified in the available product evidence — verify with the Panduit datasheet for depth-sensitive installations.
Q: What material is the PZWMC9W cabinet made from?
A: The cabinet is constructed from steel with a black finish, providing structural rigidity and chassis grounding continuity.
When I spec the PZWMC9W for a zone closet deployment, the detail I highlight first is the hinged middle section with removable side panels — that's the difference between a cabinet you can actually work in during a MAC event versus one that requires a full de-rack to re-patch. At 18.5 inches tall housing 9RU, this unit fits comfortably in a single wall bay alongside a zone cabling consolidation point without eating into corridor clearance.
Technical Highlights:
- UL 2416 Listing: Independent lab evaluation for structural integrity and flammability — in commercial builds subject to AHJ inspection, this listing is typically required documentation at rough-in sign-off. Don't spec an unlisted cabinet on a permitted job.
- NEMA 1 / IP20: Matched to climate-controlled indoor IT environments — solid objects above 12.5mm and incidental contact with live parts are blocked, which satisfies the NEC requirements for live-conductor accessibility in a telecom room. No gaskets, no pressurized seals — keeps cost and weight down where the environment doesn't demand more.
- 19" EIA-310 Compatibility: Standard rail spacing means zero adapter cost — every commodity patch panel, 1U switch, and fiber shelf drops straight in. The 25-inch (635mm) exterior width is the key fit check against your wall bay framing before rough-in.
Deployment Considerations:
- Confirm interior depth against your deepest planned device (typically a managed PoE switch at 10–14 inches) before finalizing the wall rough-in. The source evidence lists exterior height and width but does not publish an interior depth figure — measure or request the dimensional drawing from Panduit before the wall opening is framed.
- NEMA 1 / IP20 is strictly an indoor dry-location rating. If the zone closet is near a loading dock, mechanical room, or any space with condensation risk, this enclosure is not the right fit — step to NEMA 12 minimum.
The PZWMC9W is the right call for a commercial office or education horizontal zone distribution point where the AHJ requires a UL-listed enclosure, you're running a Panduit structured cabling system, and the wall bay can accommodate 9RU. It is not a fit for industrial or wet-rated applications.
