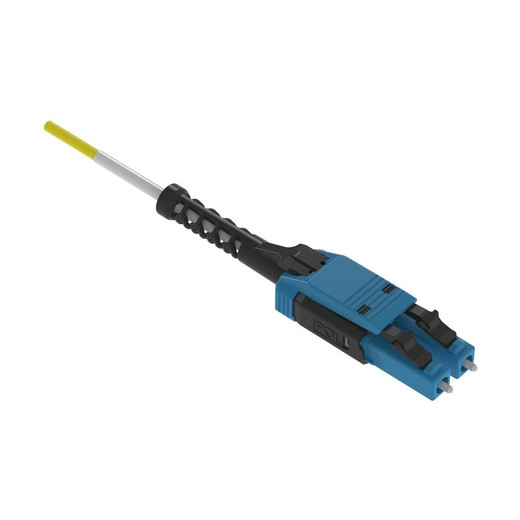

Panduit F92RLU1U1ONM010 Opti-Core OS2 Single-Mode Fiber Patch Cord

The Panduit F92RLU1U1ONM010 is a 10-meter duplex single-mode fiber patch cord engineered for data center and enterprise network deployments requiring low-loss, high-bandwidth connectivity. Built on OS2-rated 9/125μm fiber with optimized insertion loss performance, this cord delivers the signal integrity and reliability that mission-critical infrastructure demands. The LC Uniboot connector design reduces footprint in high-density switch and patch panel environments, while the LSZH jacket meets fire safety codes for enclosed equipment spaces and plenum installations.

Key Features

• OS2 single-mode fiber (9/125μm) rated for 10+ km transmission at 10 Gbit/s, 40 Gbit/s, and 100 Gbit/s
• LC Uniboot duplex connectors on both ends for 50% space savings vs. traditional dual-boot LC
• Optimized insertion loss specification ensures maximum link budget and margin
• 2.0 mm cable diameter provides flexibility in tight routing paths and high-density racks
• LSZH (Low Smoke Zero Halogen) jacket compliant with IEC 60332-1 for fire safety
• Pull-boot connector strain relief protects fiber termination during installation and moves
• Yellow jacket follows TIA-598-C color coding standard for single-mode identification
• 10-meter length suits intra-rack, rack-to-rack, and cross-aisle data center links

OS2 fiber is the current single-mode standard for structured cabling systems, supporting multi-gigabit Ethernet, Fibre Channel, and InfiniBand protocols over distances that far exceed copper and multimode fiber limits. The 9μm core diameter enables low attenuation (≤0.4 dB/km at 1310 nm, ≤0.3 dB/km at 1550 nm) and minimal chromatic dispersion, making this cord suitable for 10GBASE-LR, 40GBASE-LR4, 100GBASE-LR4, and future 400G optics. Panduit's optimized insertion loss manufacturing process targets ≤0.3 dB per connector pair, preserving link margin in multi-span backbone and storage-area-network topologies. The LC Uniboot form factor consolidates transmit and receive fibers into a single compact connector body with a push-pull latch, simplifying moves-adds-changes and reducing the risk of incorrect polarity during patching. The 2.0 mm round cable jacket strikes a balance between durability and bend radius, allowing tight routing through cable managers and vertical risers without kinking.

This patch cord is designed for equipment area and horizontal fiber distribution in data centers, telecom rooms, and server farms. Common deployments include interconnecting fiber cassettes in main distribution areas, linking top-of-rack to spine switches, connecting storage arrays to SAN fabrics, and bridging campus fiber backbones to building entrance facilities. The 10-meter length suits same-row equipment connections and short cross-connects within a single room, eliminating excess cable slack that complicates airflow management in hot-aisle/cold-aisle layouts. The LSZH jacket is required in many jurisdictions for cables in air-handling spaces, above drop ceilings, or in enclosed equipment cabinets where PVC combustion byproducts pose a life-safety hazard. Panduit's Opti-Core system is engineered for polarity Method B or Method C deployments per TIA-568-C.3, ensuring plug-and-play compatibility with pre-terminated trunk assemblies and MTP-to-LC breakout modules.

The F92RLU1U1ONM010 meets or exceeds ISO/IEC 11801, TIA/EIA-568-C.3, and FOCIS-3/FOCIS-10 connector performance standards, and is RoHS compliant for global installation compliance. Panduit's manufacturing traceability and insertion-loss test data provide the documentation trail required for customer acceptance testing and warranty claims. This cord ships as a single unit with protective dust caps, ready for immediate deployment in 10 Gbit/s, 40 Gbit/s, and 100 Gbit/s Ethernet networks where reliable, low-loss single-mode connectivity is non-negotiable.
