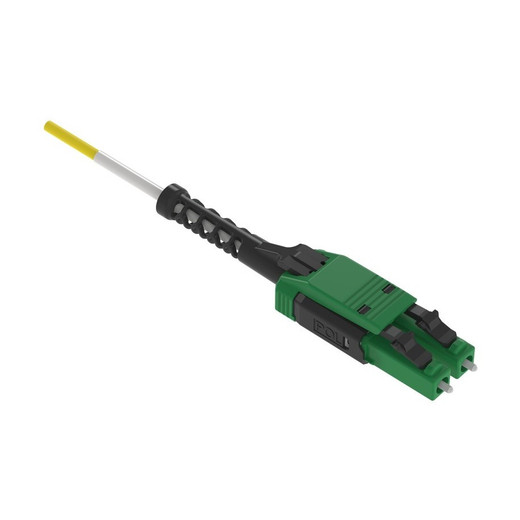

Panduit F92RPU2U2ONM010 10m OS2 LC Uniboot Patch Cord

Panduit F92RPU2U2ONM010 Opti-Core 10m OS2 Single-Mode Fiber Patch Cord

The Panduit F92RPU2U2ONM010 is a 10-meter OS2 single-mode fiber optic patch cord engineered for high-performance datacenter and enterprise network backbone applications. Built on Panduit's Opti-Core platform, this patch cord features LC duplex uniboot APC connectors on both ends, delivering optimized insertion loss and superior return loss performance critical for 10G, 40G, and 100G Ethernet deployments. The plenum-rated (OFNP) yellow jacket meets NEC requirements for above-ceiling installation in commercial buildings, while the space-saving uniboot design and integrated pull-boot mechanism streamline deployment in high-density patch panels and fiber distribution frames.

Key Features

• OS2 single-mode 9/125 µm fiber with optimized insertion loss for extended reach and bandwidth
• LC duplex uniboot APC connectors both ends — 8° angled polish for superior return loss in high-speed applications
• 10-meter (32.81 ft) length ideal for backbone links, cross-connects, and equipment distribution
• Plenum (OFNP) rated for installation in air-handling spaces per NEC Article 770
• Yellow jacket for standard single-mode fiber identification in mixed-mode environments
• Uniboot design reduces panel footprint by 50% compared to traditional duplex LC
• Integrated pull-boot for safe connector extraction in densely populated 1U panels
• RoHS compliant and meets TIA-568-C.3, ISO/IEC 11801, FOCIS-3, and FOCIS-10 standards

The F92RPU2U2ONM010's APC (Angled Physical Contact) connector polish delivers measurably lower return loss than standard UPC connectors — typically -60 dB or better versus -50 dB for UPC — making it the required choice for DWDM, CWDM, and high-bit-rate applications where back-reflection can degrade signal integrity. The 8-degree angle on the APC endface eliminates Fresnel reflection at the connector interface, critical when you're running 10GBASE-LR, 40GBASE-LR4, or 100GBASE-LR4 over extended distances or through multiple patch points. Panduit's Opti-Core manufacturing process optimizes insertion loss across the entire link — you'll typically see ≤0.35 dB insertion loss per mated pair, preserving your link budget in multi-span architectures where every tenth of a dB counts. The OS2 9/125 µm fiber specification supports transmission distances up to 10 km at 10 Gbps and 40 km at 1 Gbps, with sufficient margin for patch-panel loss and future upgrades to 25G or 100G per-lane rates.

The uniboot LC connector design consolidates the traditional duplex LC's two separate 1.25mm ferrules into a single compact housing with a reversible polarity mechanism — critical when you're terminating 48-port cassettes or 1U breakout panels where every millimeter of horizontal space matters. The integrated pull-boot provides a firm grip point for connector extraction without stressing the aramid strength members or fiber; in high-density SFP+ switch deployments where you're working around live adjacent ports, the pull-boot prevents accidental disconnects and gives you clean single-handed removal even in the back of a 42U rack. The 10-meter length positions this patch cord for backbone applications: cross-connects between main distribution area (MDA) and horizontal distribution area (HDA) frames, pre-terminated trunk interconnects, or equipment distribution links from a fiber patch panel to a switch or media converter located across the same telecommunications room. The plenum (OFNP) rating is non-negotiable in commercial installations where structured cabling runs through return-air plenums above drop ceilings — the low-smoke, flame-retardant jacket meets NEC Article 770 and building code authority-having-jurisdiction requirements without the cost and complexity of running everything in conduit. Yellow is the TIA-598-C standard color for single-mode OS2 fiber; it provides instant visual differentiation from aqua OM3/OM4 multimode or other cable types during adds, moves, and changes.

The F92RPU2U2ONM010 meets TIA-568-C.3 performance requirements for single-mode patch cords, including geometry, insertion loss, and return loss specifications verified through TIA-604-3 (FOCIS-3) and TIA-604-10 (FOCIS-10) endface geometry inspections. It's RoHS-compliant per Directive 2002/95/EC, suitable for installations requiring hazardous-substance documentation. This patch cord is purpose-built for pre-terminated cassette interconnects in structured cabling systems — when you're deploying Panduit FAP or FMT cassettes in a 4-post rack or wall-mount enclosure, the uniboot LC interface mates directly with MTP-to-LC breakout modules, and the 10-meter length handles typical vertical riser distances between distribution floors or horizontal distances within large telecommunications rooms. It's the reliable choice for enterprise datacenters, telecom carrier hotels, and campus backbone links where insertion loss, return loss, and plenum compliance are non-negotiable job requirements.
