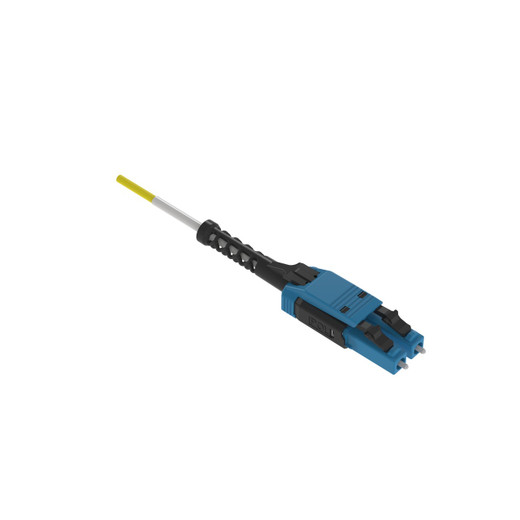

Panduit F92RLU1U1ONM012 12m OS2 LC Uniboot Patch Cord

Panduit F92RLU1U1ONM012 Opti-Core 12m OS2 LC Duplex Uniboot Fiber Patch Cord

The Panduit F92RLU1U1ONM012 is a 12-meter OS2 single-mode fiber optic patch cord engineered for high-density datacenter interconnects and campus backbone deployments where space constraints and cable management matter. This duplex jumper features LC Uniboot connectors on both ends, consolidating two fibers into a single compact boot assembly that reduces pathway congestion by roughly 50% compared to traditional dual-boot LC cables. The 2.0mm LSZH (Low Smoke Zero Halogen) jacket meets European and international fire-safety mandates for occupied spaces and plenum-equivalent installations, while the factory-polished 9/125µm single-mode glass delivers optimized insertion loss performance across the full OS2 specification range—critical for 10G, 40G, and 100G Ethernet links operating at extended distances or through multiple interconnect points. At 39.37 feet, this cable length bridges typical inter-rack gaps in datacenter hot-aisle layouts, MDA-to-HDA runs in structured cabling environments, and entrance-facility-to-equipment-room pathways in enterprise telecom installations.

Key Features

• OS2 single-mode fiber (9/125µm) rated for 10km+ transmission distances at 10GbE and beyond
• LC Duplex Uniboot connectors with integrated pull-tab boots reduce footprint and simplify polarity reversals in the field
• Optimized insertion loss specification ensures headroom for multi-span links and high-speed protocols (40G/100G/400G)
• LSZH jacket compound limits toxic smoke and corrosive gas emissions during fire events—required in most EU installations and recommended for occupied US spaces
• 2.0mm cable diameter enables high-density bundling in cable managers, vertical risers, and horizontal pathways without exceeding conduit fill ratios
• Yellow jacket color follows TIA-598-D single-mode fiber identification standard for instant visual confirmation
• Factory-terminated and tested by Panduit to ISO/IEC 11801 and TIA-568-C.3 performance standards

Single-mode OS2 fiber is the backbone of modern datacenter and campus networks, supporting transmission distances from 300 meters to 10+ kilometers depending on optics and protocol. The F92RLU1U1ONM012 uses 9µm core glass that propagates a single light mode, eliminating modal dispersion and enabling the low attenuation budgets required for 10GBASE-LR, 40GBASE-LR4, and 100GBASE-LR4 links. Panduit's optimized insertion loss spec goes beyond the 0.75dB maximum defined in TIA-568-C.3, typically delivering ≤0.35dB at 1310nm and ≤0.50dB at 1550nm on production lots—this headroom matters when you're chaining cassettes, panels, and cross-connects across a three-tier datacenter fabric or connecting remote buildings through outside-plant runs. The LC Uniboot connector design consolidates transmit and receive fibers into a single housing with a field-reversible polarity mechanism: pulling the integrated tab releases the boot, exposing a keyway that lets you rotate the duplex connector 180° to swap A/B positions without re-termination. This feature streamlines MACs (moves, adds, changes) in spine-leaf topologies where polarity flips are routine, and it cuts patch-panel port consumption in half compared to simplex LC deployments—a 48-port 1U panel can now terminate 48 duplex Uniboot links instead of 24 dual-boot pairs.

The 2.0mm LSZH jacket construction addresses both physical and regulatory deployment challenges. Low Smoke Zero Halogen compounds are mandated in the EU under CPR (Construction Products Regulation) Euroclass ratings and widely adopted in the US for datacenter spaces, hospitals, schools, and transportation hubs where fire-code authorities prioritize occupant safety during smoke events. When exposed to flame, LSZH jackets produce roughly 85% less smoke opacity than PVC alternatives and emit negligible hydrogen chloride—PVC combustion generates hydrochloric acid vapor that corrodes IT equipment, damages lungs, and impairs visibility during evacuations. The 2.0mm outer diameter also simplifies high-density installs: you can route 50+ Uniboot cables through a single 1U horizontal manager without exceeding the 40% conduit-fill guideline in TIA-569-D, and the reduced bulk minimizes airflow obstruction in front-access cable troughs where every millimeter of clearance affects cooling efficiency. The yellow jacket follows the TIA-598-D color code for OS2 non-military single-mode fiber, ensuring instant identification during troubleshooting or audits—critical in mixed-mode environments where technicians need to distinguish OM3/OM4 multimode (aqua) from OS2 single-mode (yellow) at a glance.

This patch cord ships with full compliance documentation for ISO/IEC 11801 Ed. 2.2 (international structured cabling), TIA-568-C.3 (optical fiber cabling components), TIA-604-3 FOCIS-3 (SC connector), TIA-604-10 FOCIS-10 (LC connector), and RoHS 2002/95/EC (hazardous substance restrictions). Each jumper is factory-tested for insertion loss, return loss, and end-face geometry per IEC 61300-3-35 interferometry standards, with test results available upon request for projects requiring certified performance records. Panduit backs the Opti-Core line with comprehensive application support for ANSI/TIA data centers (942-A/942-B), EN 50173 European installations, and BICSI DCIM best practices—making the F92RLU1U1ONM012 a spec-compliant choice for contractors bidding government, healthcare, and finance-sector projects where traceability and third-party validation are contract requirements. The 12-meter length covers the vast majority of intra-datacenter interconnects (rack-to-adjacent-rack, row aggregation switch to spine, storage-array backend to SAN fabric) while remaining short enough to avoid the excess coiling and service-loop waste that plagues over-provisioned cable plants.
