Panduit F92ERANLNSNM008 OS2 SC APC to LC Fiber Cord

Panduit F92ERANLNSNM008 Opti-Core OS2 Fiber Patch Cord

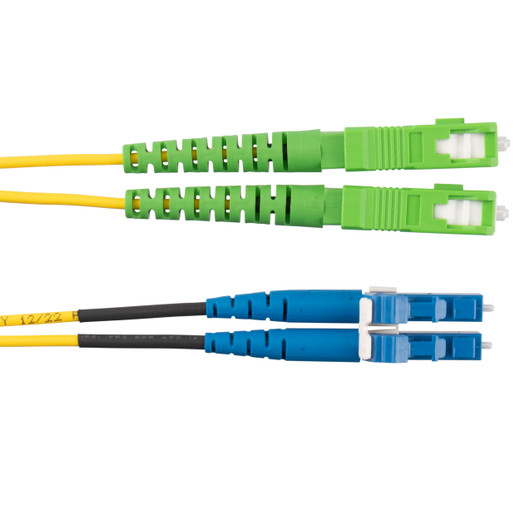

When your fiber installation calls for SC APC connectivity on the patch panel side and duplex LC at the switch, Panduit's F92ERANLNSNM008 delivers an 8-meter single-mode link with the OFNR rating required for vertical pathways. This OS2 duplex cord terminates one end with SC APC connectors — angled physical contact geometry that reduces back reflection below -60 dB — and the other with a duplex LC module, matching the port configuration on most enterprise switches and media converters. The slim 1.6 mm cable diameter improves airflow and density in crowded telecom rooms, while the yellow PVC jacket provides instant visual confirmation that you're working with single-mode fiber, not multimode.

Key Features

• SC APC to duplex LC connectivity for panel-to-switch or panel-to-media-converter installations
• OS2 single-mode fiber supports 10GBASE-LR, 40GBASE-LR4, and 100GBASE-LR4 over extended distances
• OFNR (riser-rated) jacket meets NEC Article 770 requirements for vertical cable runs without conduit
• 1.6 mm cable diameter reduces pathway congestion and improves thermal management in high-density racks
• Standard insertion loss and TIA-568 polarity — ready for plug-and-play deployment in structured cabling systems
• 8-meter length suits building vertical runs, cross-floor IDF links, and medium-span horizontal connections
• Opti-Core construction with 9/125 micron fiber and yellow jacket per industry color coding standards

The SC APC termination is factory-polished to an 8° angle, eliminating the Fresnel reflection that causes interference in high-speed and analog video-over-fiber links. This makes the F92ERANLNSNM008 a strong choice for DWDM systems, 10G-SR optics operating near their distance ceiling, and any scenario where return loss matters — including coherent 100G links and distributed antenna systems feeding in-building wireless. On the duplex LC end, the connectors use Panduit's push-pull boot design for one-handed insertion and extraction in tight spaces; no need to pinch a release tab while pulling the cable. Both ends ship with protective dust caps; leave them in place until you're ready to mate to avoid endface contamination that degrades link performance.

The 1.6 mm cable uses a tight-buffered dual-fiber construction with aramid yarn strength members and a yellow riser-rated PVC jacket. Tight buffering provides better crush resistance than loose-tube designs, critical when patch cords get stepped on or pinched by rack doors. The OFNR (Optical Fiber Nonconductive Riser) rating satisfies NEC 770.154(A) for installation in vertical shafts and floor penetrations between non-plenum spaces — think IDF-to-IDF stacks in multi-story buildings or risers feeding wireless access points on upper floors from a ground-floor headend. For plenum spaces, Panduit offers OFNP-rated equivalents; confirm your building's requirements before deployment.

At 8 meters (26.2 feet), this cord fits the sweet spot for cross-rack connections in larger telecom rooms, floor-to-floor vertical jumps in low-rise installations, and horizontal runs that exceed the 3–5 meter reach of standard rack jumpers but don't require premise cable and field termination. Common scenarios include connecting a fiber patch panel mounted at the top of a relay rack to a core switch three racks away, linking a basement MDF to a first-floor IDF in a two-story building, or running SC-terminated wall outlets (popular in healthcare and education retrofits) to LC-equipped PoE switches serving IP cameras and access points. The single-mode OS2 fiber supports 10GBASE-LR out to 10 km, 40GBASE-LR4 to 10 km, and 100GBASE-LR4 to 10 km, so this cord won't become a bottleneck as your network scales from 1G to 100G.

Standard polarity (connector A on fiber 1 goes to position A on the far end) and standard insertion loss (typically ≤0.3 dB per mated pair) mean the F92ERANLNSNM008 works without adapters or polarity-flip modules in TIA-568-compliant structured cabling systems. Each cord ships in a protective bag with test data verifying insertion loss and return loss; file this documentation with your as-built drawings for future troubleshooting. Panduit backs the Opti-Core line with manufacturer warranty coverage; retain your purchase records and register the installation per Panduit's warranty terms to maintain eligibility.
