Panduit F92ELANB1SNM001 OS2 SC/APC-LC/APC Fiber Cord 1m

Panduit F92ELANB1SNM001 Opti-Core OS2 Single-Mode Fiber Patch Cord

The Panduit F92ELANB1SNM001 is a 1-meter OS2 single-mode fiber patch cord engineered for high-density datacenter and security network infrastructure. This 2-fiber duplex Opti-Core™ cable bridges SC/APC and LC/APC connector formats with a compact 1.6mm jacket diameter, delivering the tight bend radius and rack density commercial integrators need when patching between dissimilar switch and storage platforms. The LSZH (Low Smoke Zero Halogen) jacket meets plenum and riser fire codes without requiring conduit in most jurisdictions, and the factory-terminated APC (Angled Physical Contact) connectors on both ends reduce back reflection below 0.01 dB — critical for 10G/40G/100G Ethernet and long-haul security camera uplinks where signal integrity determines whether you hit specified distances or spend days troubleshooting intermittent packet loss.

Key Features

• OS2 9/125 μm single-mode fiber supports distances up to 10 km at 10 Gbps, 40 km at 1 Gbps

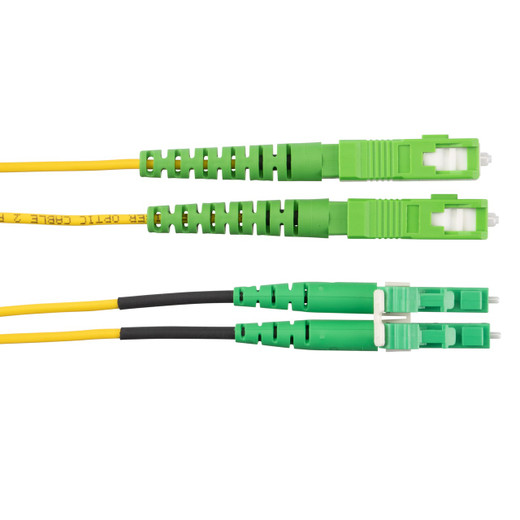

• SC/APC duplex (green) to LC/APC duplex (green) connector pairing for cross-platform switch and NVR integration
• 1.6mm jacket diameter enables 40%+ higher port density vs. 3mm cables in patch panels and cable managers
• LSZH flame rating satisfies IBC plenum and riser requirements without metal conduit in most installations
• Factory-polished APC ferrules deliver <-60 dB return loss, preventing back reflection that degrades SFP+ modules
• 1-meter length ideal for adjacent-rack connections and top-of-rack to distribution layer patches
• Yellow OS2-standard cable jacket provides instant visual identification in mixed single-mode/multimode environments
• Panduit Opti-Core construction with reinforced pull-tab boots and strain relief rated for 500+ mating cycles

Single-mode fiber is the backbone of modern IP security and datacenter networks, but integrators face a recurring problem: equipment manufacturers don't standardize on one connector type. Your core switch uses LC ports, the storage array has SC, and the customer's existing fiber plant terminates in ST — forcing you to stock a matrix of adapter cables or rely on bulky mid-span adapters that add insertion loss and failure points. The F92ELANB1SNM001 solves the SC-to-LC mismatch directly with a 1-meter duplex jumper, letting you patch a Cisco or Arista LC-based switch to a legacy SC fiber panel or an SC-equipped SAN without adapters. The 1-meter length keeps patch-panel areas tidy and prevents the service-loop spaghetti that makes future adds-moves-changes a nightmare.

The APC polish is the critical specification here. Standard PC (Physical Contact) connectors mate flat ferrule-to-ferrule; any air gap or contamination reflects 4–10% of the signal straight back into the transmitter, creating interference that shows up as CRC errors, retransmits, and random link flaps — especially on 10GBASE-LR and 40GBASE-LR4 optics. APC connectors angle the ferrule face 8 degrees, directing reflected light into the cladding instead of the core and pushing return loss below -60 dB. You'll see the difference immediately on long campus backbone runs and on 10G security NVR uplinks where every 0.5 dB of margin decides whether you reliably hit 10 km or start seeing packet loss at 7. Panduit factory-polishes and tests every connector to TIA-568 specs, so you're not gambling on field-terminated quality. The 1.6mm jacket diameter matters just as much in high-density installs: a 42U rack with four 48-port LC switches can burn through 15U of vertical cable management with 3mm patch cords; switching to 1.6mm cables reclaims half that space and improves airflow around hot-aisle switches. The LSZH jacket is the difference between a plenum-rated install that passes inspection and a code violation that holds up occupancy permits — and unlike PVC, LSZH doesn't release hydrochloric acid smoke if a cable overheats, protecting both occupants and the SFP optics sitting three inches away.

OS2 single-mode fiber is specified for 10 km at 10 Gbps and 40 km at 1 Gbps, but real-world range depends on your total link budget: each connector introduces 0.3–0.75 dB insertion loss, every splice adds 0.1–0.3 dB, and the fiber itself attenuates 0.35–0.5 dB/km at 1310 nm. On a storage replication link with four patch cords and two distribution-panel splices, you've burned 2–4 dB before the fiber run even starts — leaving little margin for 10GBASE-ER optics rated at 11.5 dB max loss. Using factory-terminated low-IL cables like the F92ELANB1SNM001 (typ. 0.3 dB per connector vs. 0.75 dB for a field-polish job) preserves that margin and eliminates the single biggest source of trouble-ticket fiber issues: poorly polished or contaminated field terminations. The SC and LC form factors are the two dominant standards in enterprise networking — LC for its small footprint and high port density, SC for its ruggedness and widespread deployment in legacy and carrier-grade systems. Having a reliable duplex jumper between the two formats means you can confidently quote fiber backbone and security uplink jobs without waiting on custom cable fabrication or stocking 15 different adapter permutations.

The Panduit Opti-Core line is built for integrators who install hundreds of patch cords per year and can't afford field failures or service calls for broken connector boots. Every cable ships with UPC 61305680544, carton quantity of 10, and Panduit's Manufacturer Warranty covering materials and workmanship — standard protection for a product line proven in telco, datacenter, and government installations where uptime requirements don't tolerate flaky patch cords.
