Panduit F92ERANB1SNM005 Opti-Core OS2 Single-Mode Fiber Patch Cord

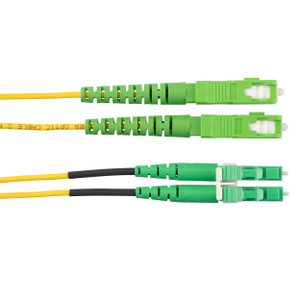

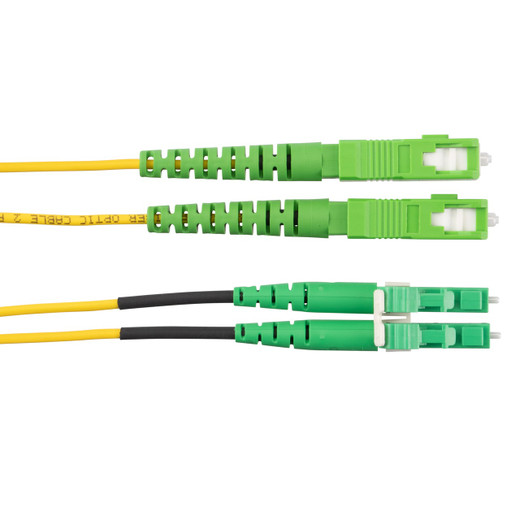

The Panduit F92ERANB1SNM005 delivers precision single-mode connectivity for datacenter, building backbone, and surveillance network applications requiring low insertion loss and minimal back reflection. This 5-meter duplex patch cord features SC/APC to LC/APC terminations on OS2 9/125µm fiber in a 1.6mm OFNR-rated jacket. The angled physical contact (APC) polish on both ends reduces return loss to below -60dB, critical for high-speed transmission and preventing signal degradation in long-haul links. Yellow jacket color-coding follows TIA-598-C standards for immediate single-mode identification during installation and maintenance.

Key Features

OS2 9/125µm single-mode fiber supports 10G/40G/100G transmission over extended distances

SC/APC and LC/APC connectors with angled 8° ferrule endface minimize back reflection

1.6mm duplex zipcord construction for flexible routing in high-density patch panels

OFNR riser-rated jacket meets NEC Article 770 for vertical building cable runs

Standard polarity (A-to-B fiber mapping) eliminates field re-termination

Factory-terminated and tested to guarantee insertion loss specification

APC connector geometry matters in single-mode deployments where return loss directly impacts bit error rates. The 8-degree ferrule angle on both SC and LC ends physically directs reflected light into the fiber cladding rather than back toward the source, achieving return loss performance exceeding -60dB compared to -40dB typical for UPC (ultra-physical contact) connectors. This specification is non-negotiable for CWDM/DWDM wavelength multiplexing, high-speed storage networks, and IP camera backbone links where even minor reflections introduce jitter. The F92ERANB1SNM005's factory-polished APC terminations eliminate the variability and labor cost of field termination while ensuring consistent performance across the entire cable plant.

OFNR (Optical Fiber Nonconductive Riser) flame rating qualifies this cordage for vertical runs between floors in commercial structures without requiring conduit in most jurisdictions. The 1.6mm zipcord jacket provides the flexibility needed for tight-radius turns around cable management hardware while maintaining the 10× bend radius minimum that protects the 9µm fiber core from microbending loss. Standard polarity configuration maps Position A fibers to Position B on the opposite end, matching the transmit/receive pair arrangement in transceivers and eliminating the crossed-fiber errors common with field-assembled patch cords. Five-meter length suits typical datacenter row-to-row spans and building riser drops without excessive slack that complicates cable management or creates failure points.

Complies with EN 60332-1-2 vertical flame propagation limits for installation in plenum-adjacent spaces. Panduit Opti-Core manufacturing includes automated insertion loss testing and serialized documentation, providing traceable performance records for TIA-568 and ISO/IEC 11801 compliance audits during commissioning.
