Panduit F92ELANLNSNM010 OS2 Single-Mode Fiber Patch Cord

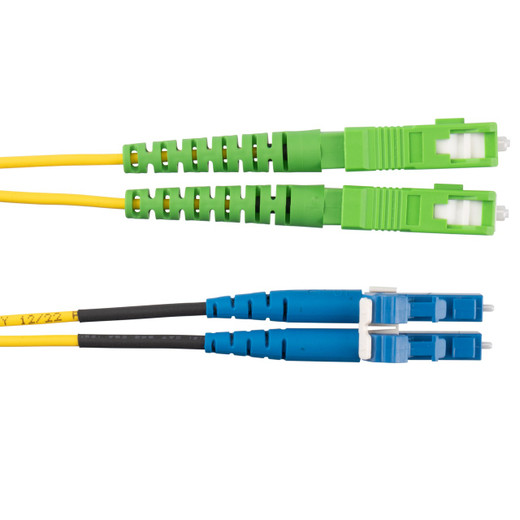

The Panduit F92ELANLNSNM010 Opti-Core™ fiber patch cord delivers carrier-grade single-mode connectivity for security networks, data centers, and telecom infrastructure requiring low-loss, long-distance fiber runs. This 10-meter duplex cord terminates SC/APC connectors on one end and LC duplex on the other, bridging dissimilar equipment interfaces common in IP camera backhaul, NVR uplinks, and fiber switching fabrics. OS2 single-mode fiber supports transmission distances exceeding 10km at 10Gb/s, while the 1.6mm reduced-diameter cable simplifies routing in congested patch panels and high-density rack environments. LSZH jacketing meets IBC plenum requirements for indoor installation without conduit in occupied spaces.
Key Features
- OS2 single-mode fiber rated for 10Gb/s+ over 10km+ distances
- SC/APC duplex connectors (angled, green-bodied) on one end reduce back reflection to <-60dB for analog video and coherent optics
- LC duplex connectors on opposite end mate with SFP/SFP+ transceiver modules in switches and media converters
- 1.6mm cable diameter (versus standard 2.0mm or 3.0mm) reduces pathway fill and bend radius in tight cable management
- LSZH (Low Smoke Zero Halogen) jacket complies with IEC 60332-1 and IEC 60754-2 for indoor plenum use
- 10-meter length suits rack-to-rack connections, cross-aisle runs, or equipment-room-to-telco-demarcation links
- Yellow cable jacket provides instant OS2 single-mode identification per TIA-598-C color coding
- Duplex 2-fiber configuration supports full-duplex bidirectional communication on a single cable assembly
Single-mode OS2 fiber is the backbone standard for IP security networks extending beyond 300 meters or requiring future-proof bandwidth. Unlike multimode OM3/OM4 fiber limited to 300-550m at 10Gb/s, OS2's 9-micron core supports 10GbE, 25GbE, and 100GbE over distances exceeding 10 kilometers with appropriate optics. Security integrators use OS2 for camera-to-headend runs in campus environments, parking structure surveillance backhaul, perimeter fence monitoring, and any application where fiber must traverse multiple buildings or span long property lines. The SC/APC termination on this cord is critical when interfacing with older analog video-over-fiber equipment, CWDM/DWDM multiplexers, or coherent detection systems that cannot tolerate the 4% Fresnel reflection from standard PC (physical contact) connectors. APC's 8-degree polish angle directs reflected light into the cladding rather than back down the core, achieving return loss better than -60dB versus -40dB for PC connectors. This 20dB improvement prevents video noise in analog transmission and bit-error-rate degradation in high-speed digital links. The opposite end's LC duplex connector is the de facto standard for SFP, SFP+, and SFP28 transceiver modules found in managed PoE switches, fiber aggregation switches, and NVR appliances with fiber uplink ports. This SC-to-LC hybrid cord eliminates the need for mid-span adapters or gender changers when connecting legacy SC-based fiber distribution panels to modern LC-based active equipment.
The 1.6mm reduced-diameter cable uses a tight-buffered construction where each 250-micron buffered fiber sits inside a smaller outer jacket compared to standard 2.0mm simplex or 3.0mm zipcord designs. This reduction matters in high-density patch panel environments where 48-port fiber cassettes or blade-style panels leave minimal clearance between adjacent connectors. The smaller diameter also reduces minimum bend radius to approximately 30mm (versus 50mm for 3.0mm cable), preventing kinking in tight 1U horizontal cable managers or vertical wire troughs. LSZH jacketing is mandated by IBC Section 805 for communications cables installed in plenums, ducts, or other air-handling spaces without metal conduit. During fire, LSZH compounds emit 22% less smoke opacity and zero halogenated acids compared to PVC, reducing toxic gas exposure and corrosion damage to active electronics. Installers working in hospitals, schools, airports, or data centers with stringent fire codes specify LSZH to avoid costly conduit installation or code-compliance failures during final inspection. The 10-meter length bridges typical rack-to-rack spacing in equipment rooms (6-8 meters apart) while providing enough service loop for future moves or strain relief. In security operations centers, this length connects floor-standing NVR chassis to overhead cable trays without excess slack that creates trip hazards or airflow obstruction in hot aisles.
Panduit Opti-Core fiber patch cords ship with individual insertion-loss test results and are factory-terminated using automated polishing to ensure <0.3dB loss per connector pair. Each cord undergoes 100% end-face inspection per IEC 61300-3-35 to verify zone classifications (core, cladding, adhesive, contact) meet Grade B scratch-and-defect limits before packaging. This level of manufacturing QC eliminates field polish variability and the 15-20% failure rate common with on-site terminations using hand tools. For integrators billing T&M labor, pre-terminated patch cords reduce installation cost per drop by 40-60% compared to pulling bulk fiber and terminating on-site, while also providing traceable test documentation for customer acceptance and warranty claims. The yellow jacket color follows TIA-598-C Appendix A recommendations for OS2 single-mode identification, preventing accidental cross-connection with aqua OM3/OM4 multimode cables that would cause immediate link failure due to mode-field diameter mismatch.
